Product Information

Wall Construction
Outer Leaf
Inner Leaf
Wall Width
Loading Conditions


Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
FCGREY0750 750 N/A 0.21 N/A
FCGREY0900 900 N/A 0.25 N/A
FCGREY1050 1050 N/A 0.29 N/A
FCGREY1200 1200 N/A 0.33 N/A
FCGREY1350 1350 N/A 0.37 N/A
FCGREY1500 1500 N/A 0.41 N/A
FCGREY1650 1650 N/A 0.46 N/A
FCGREY1800 1800 N/A 0.50 N/A
FCGREY1950 1950 N/A 0.54 N/A
FCGREY2100 2100 N/A 0.58 N/A
FCGREY2250 2250 N/A 0.63 N/A
FCGREY2400 2400 N/A 0.66 N/A
FCGREY2550 2550 N/A 0.71 N/A
FCGREY2700 2700 N/A 0.74 N/A
FCGREY2850 2850 N/A 0.79 N/A
FCGREY3000 3000 N/A 0.82 N/A
FCGREY3300 3300 N/A 0.91 N/A
FCGREY3600 3600 N/A 0.99 N/A
FCGREY3900 3900 N/A 1.07 N/A
FCGREY4200 4200 N/A 1.16 N/A
FCGREY4575 4575 N/A 1.26 N/A
FCGREY4800 4800 N/A 1.33 N/A
FCGREY5100 5100 N/A 1.41 N/A
  • All external wall lintels fitted with lintel cladding must be installed with a flexible damp proof course (DPC) ensuring that the DPC projects beyond the front face of the cladding.

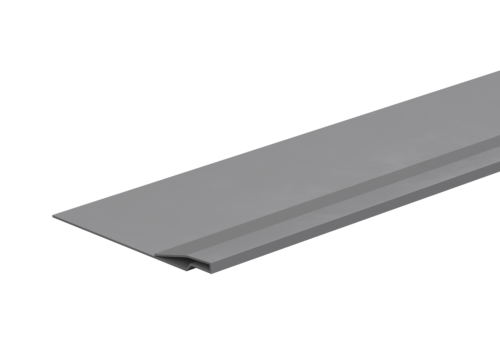

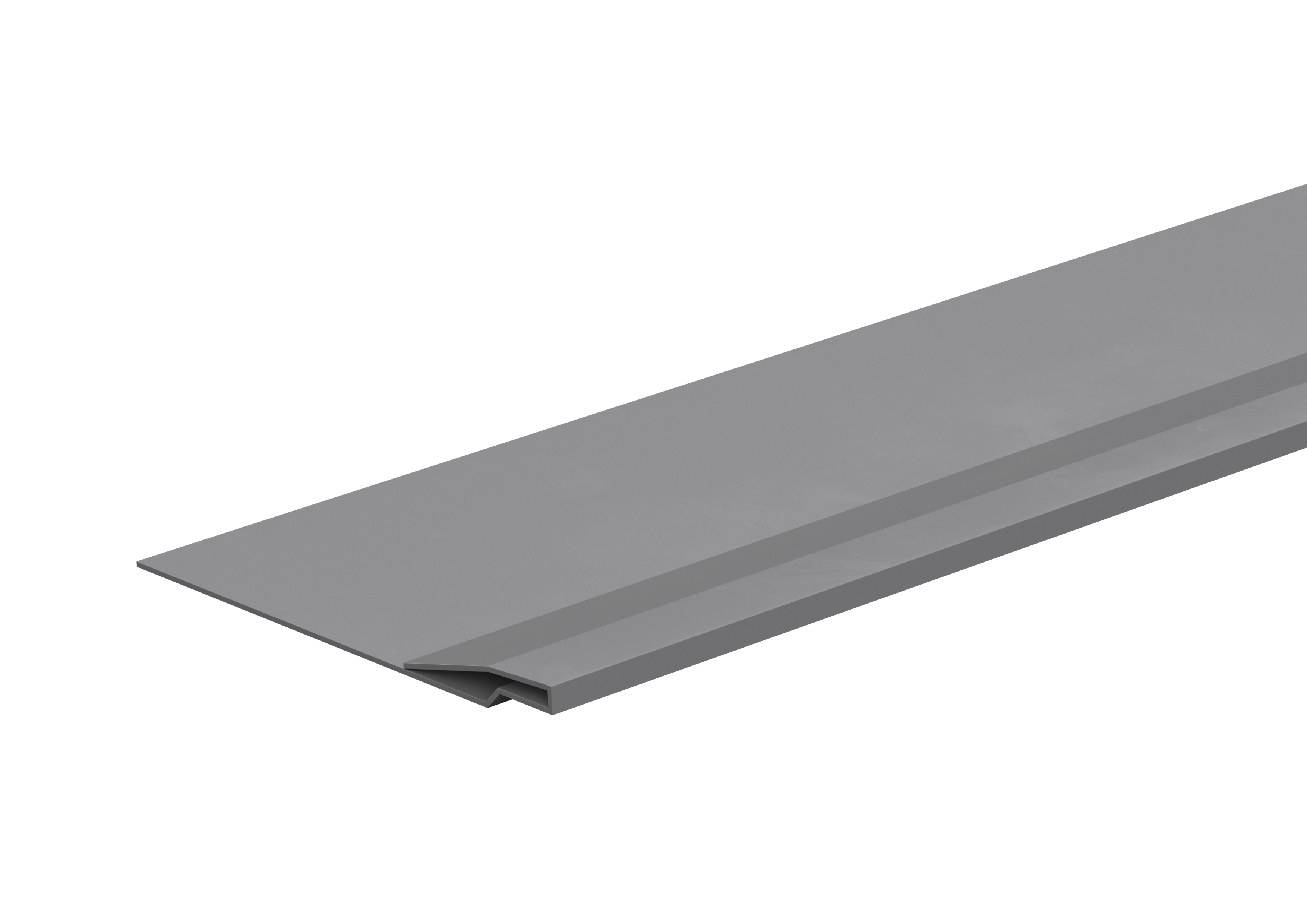

Lintel Soffitt Cladding is an optional cladding that provides extra protection, especially in coastal regions and in situations where much of the lintel soffit is exposed.
  • Lintel Soffitt Cladding is an optional cladding that provides extra protection, especially in coastal regions and in situations where much of the lintel soffit is exposed.
  • Suitable for use with Cougar lintels (CG, CH, CX) timber frame lintels (CTF5, CTF7, CTF9, CN23), thermally broken lintels (TS, TH, TX) and External solid wall lintels (CN71 and CN81).

What our customers think

Video Guides

When selecting a lintel, there are three factors that should be considered to ensure the correct specification: the type of wall construction, the dimensions of the structural opening and the total load on the lintel. In this video, we run you through the lintel selection process.

Catnic thermally broken lintel installation

Once you have chosen the correct lintel for your project, it is crucial that the lintel be installed properly – if it is not, it could lead to serious issues for the building. In this video, we explain the installation considerations for cavity wall lintels.

Builder installed Catnic CG90/100 lintel

Catnic’s Thermally Broken Lintel is the only lintel on the market to provide a complete thermal break between the inner and outer leafs. In this video, we outline the key benefits of Thermally Broken Lintels and explain the installation process.

Catnic TS90/100 lifted into position by builders

Steel lintels, and specifically Catnic's thermally broken lintels, have a significant role to play in reducing thermal bridging and achieving carbon gains. They represent one of the simplest and most economical ways for building fabric to be designed and constructed to help achieve the carbon gains necessary to meet current and future building regulations.

Catnic balcony installation at kingsdown gate

Support & FAQs

Calculating the load imposed on lintels depends on a variety of factors, including the wall type in which the lintel is installed, and whether floor or roof loads need to be accounted for in addition to masonry loads. Lintels are primarily design to support uniformly distributed loads (UDLs) but on occasions point loads also need to be considered. This guide only provides an overview of how the loads on lintel are established and should not be used as a substitute for obtaining loading calculations either direct from the lintel manufacturer or from a qualified structural engineer.

Specifying Catnic’s Thermally Broken Lintels (TBLs) will significantly improve the thermal efficiency of a property and help ensure that the project’s necessary environmental credentials are met. Specifying Catnic TBLs can be done with ease as they have the same safe working loads as Catnic’s traditional lintels – meaning TBLs can be specified like for like. Catnic TBLs can also be used for standard duty, heavy duty and extra heavy use, making them suitable for a wide range of projects. You'll find our full range here

The correct specification of lintels is crucial, however it is just as important to ensure that each one is installed correctly. Here are five top tips to ensure an trouble free installation. To watch our video on installing cavity wall lintels click here
