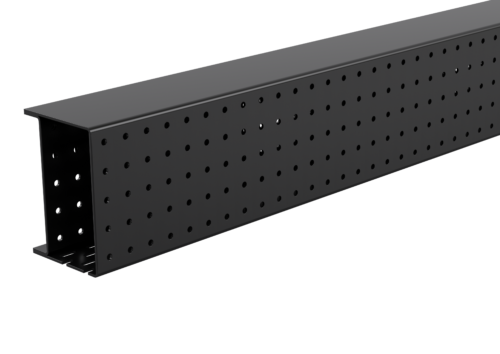

Overview

Product Information

Wall Construction
Internal Wall
Outer Leaf
N/A
Cavity
N/A
Inner Leaf
100
Wall Width
100
Loading Conditions
Extra Heavy

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
BXD1000750 750 47 7.05 143
BXD1000900 900 47 8.46 143
BXD1001050 1050 47 9.87 143
BXD1001200 1200 47 11.28 143
BXD1001350 1350 47 12.69 143
BXD1001500 1500 47 14.10 143
BXD1001650 1650 59 25.91 219
BXD1001800 1800 59 28.26 219
BXD1001950 1950 59 30.62 219
BXD1002100 2100 59 32.97 219
BXD1002250 2250 59 35.33 219
BXD1002400 2400 59 37.68 219
BXD1002550 2550 59 40.04 219
BXD1002700 2700 59 42.39 219
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 4800mm (including 4575mm, but excluding 4500mm).

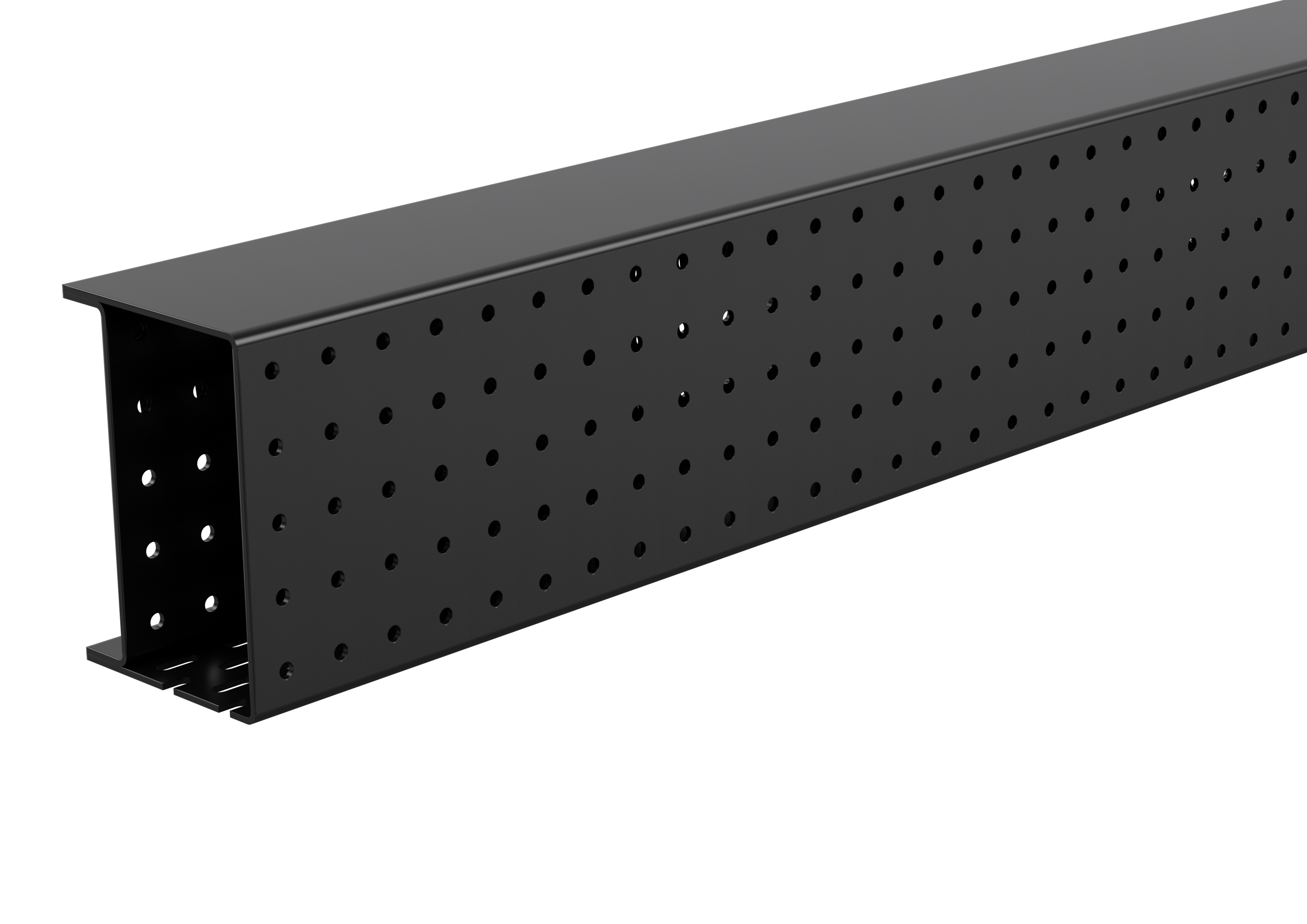

Features

Steel lintel for use in masonry construction for internal load bearing walls 100mm and 140mm. Universal application caters for all loading condition, including direct floor or roof load, concrete floor and point loads. Manufactured from galvanised steel with Catnic's signature black powder coating.
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

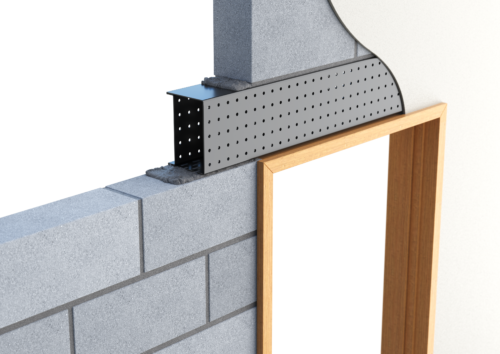

Catnic extra heavy duty box lintel for 100mm interior solid wall shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.
