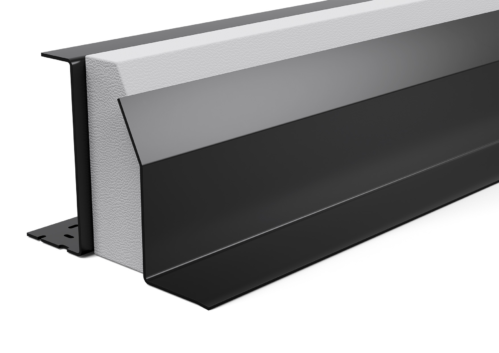

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
110-125
Inner Leaf
125-140
Wall Width
Loading Conditions
Extra Heavy

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/19:1 Weight (kg) Nominal Height (mm)
TX110/1250750 750 60 13.04 229
TX110/1250900 900 60 15.64 229
TX110/1251050 1050 60 18.25 229
TX110/1251200 1200 60 20.86 229
TX110/1251350 1350 60 23.46 229
TX110/1251500 1500 60 26.07 229
TX110/1251650 1650 60 28.68 229
TX110/1251800 1800 60 31.28 229
TX110/1251950 1950 60 33.89 229
TX110/1252100 2100 60 36.50 229
TX110/1252250 2250 60 50.63 229
TX110/1252400 2400 60 54.00 229
TX110/1252550 2550 60 57.38 229
TX110/1252700 2700 60 60.75 229
TX110/1252850 2850 55 64.13 229
TX110/1253000 3000 55 67.50 229
TX110/1253300 3300 50 74.25 229
TX110/1253600 3600 50 81.00 229
TX110/1253900 3900 50 87.75 229
TX110/1254200 4200 32 94.50 229
TX110/1254575 4575 32 102.94 229
TX110/1254800 4800 32 108.00 229
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
  • Separate DPC tray required
  • When using the Catnic TH and TX Open Back ranges with concrete floors, always ensure that the blockwork is built tight against the inner vertical face, and that a mortar joint is added to the top of the blockwork so that the floor units have an even spread over the inner flange of the lintel.
  • Achieving a remarkably low Psi value ensures this Catnic lintel will always meet the performance criteria requirements of Appendix Q found in SAP 2012 providing easy compliance with Part L of the Building Regulations

Features

Steel lintel with unique thermal break for use in cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. The easy to use open back profile allows masonry to be built up continuously on both outer and inner leaf, available in standard, heavy, and extra heavy duty from 90-205mm cavities. Fully insulated, with complete thermal break, integral plaster key and Catnic's signature black powder coating.
  • Psi values of 0.02 to 0.05 W/mK
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • Designed to maximise energy saving at home
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

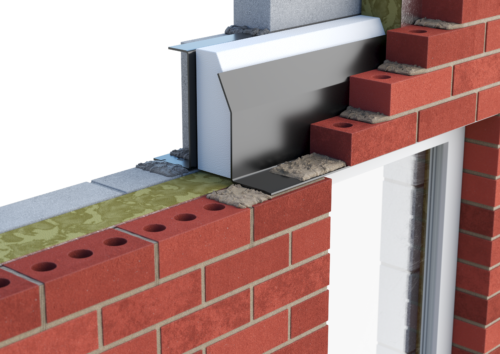

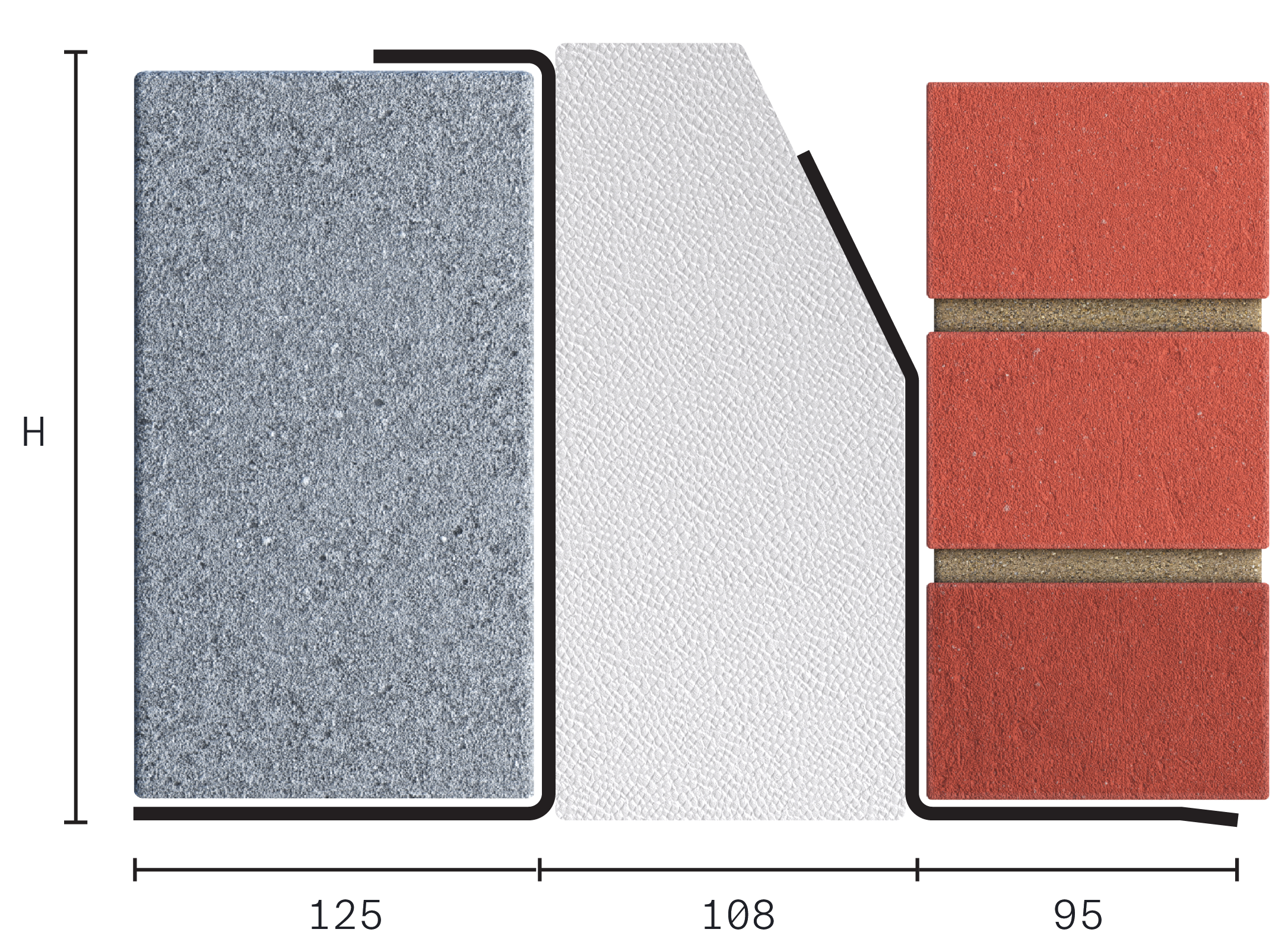

Catnic extra heavy duty thermally broken cavity wall lintel for 110-125mm cavity wall shown in situ
  • Psi values of 0.02 to 0.05 W/mK

    Independently verified by the Building Research Establishment.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
