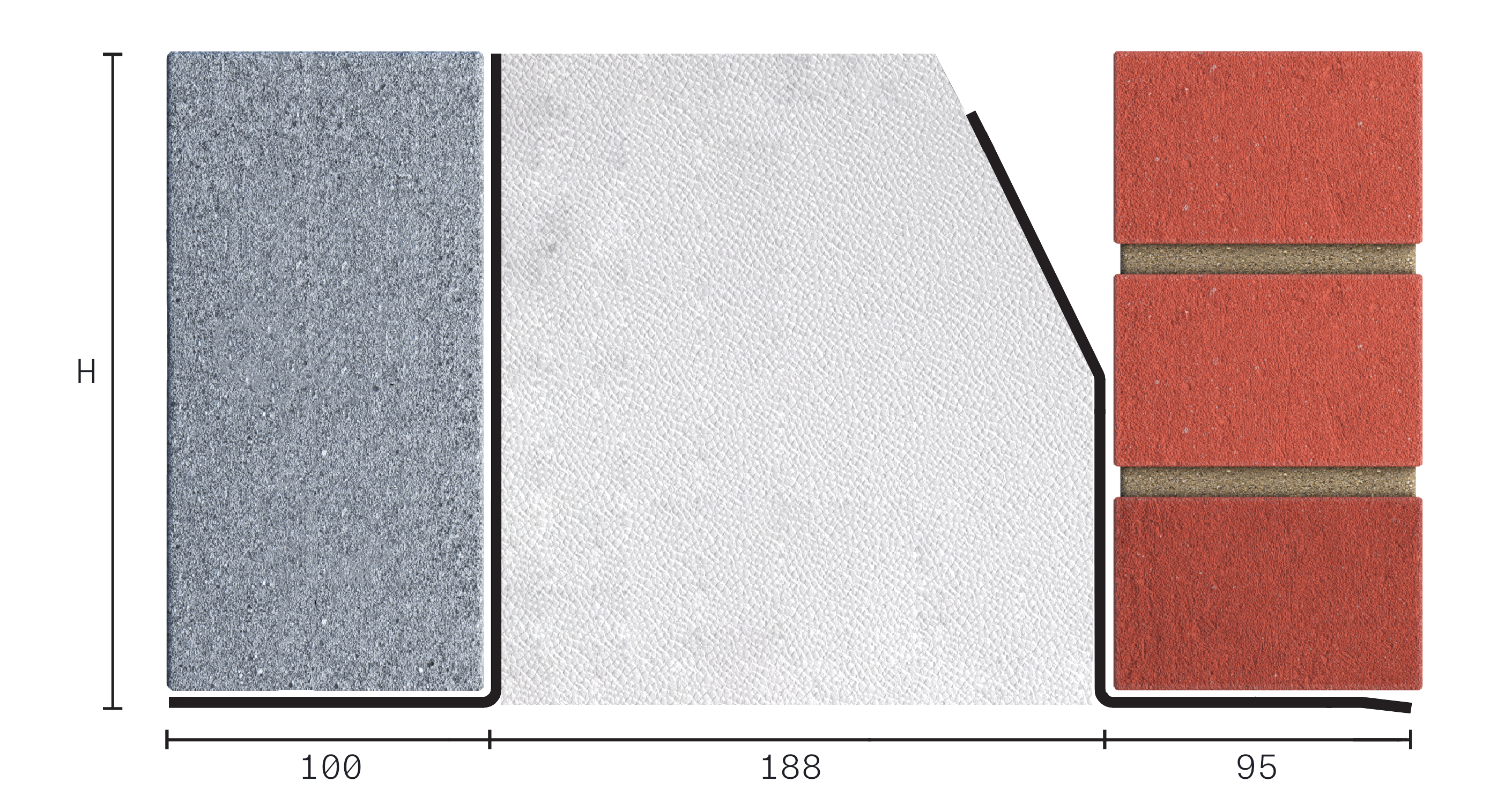

Product Code Standard Length (mm) SWL (kN) 1:1/3:1 Weight (kg) Nominal Height (mm)
TS190/1000750 750 15 6.29 153
TS190/1000900 900 15 7.55 153
TS190/1001050 1050 15 8.81 153
TS190/1001200 1200 15 10.07 153
TS190/1001350 1350 15 11.33 153
TS190/1001500 1500 15 12.59 153
TS190/1001650 1650 18 20.49 202
TS190/1001800 1800 18 22.36 202
TS190/1001950 1950 20 24.22 202
TS190/1002100 2100 20 26.08 202
TS190/1002250 2250 22 36.95 233
TS190/1002400 2400 22 39.41 233
TS190/1002550 2550 26 41.87 233
TS190/1002700 2700 26 44.33 233
TS190/1002850 2850 26 49.70 229
TS190/1003000 3000 26 52.32 229
TS190/1003300 3300 26 57.55 229
TS190/1003600 3600 26 62.78 229
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 3600mm.
  • Separate DPC tray required
  • Achieving a remarkably low Psi value ensures this Catnic lintel will always meet the performance criteria requirements of Appendix Q found in SAP 2012 providing easy compliance with Part L of the Building Regulations


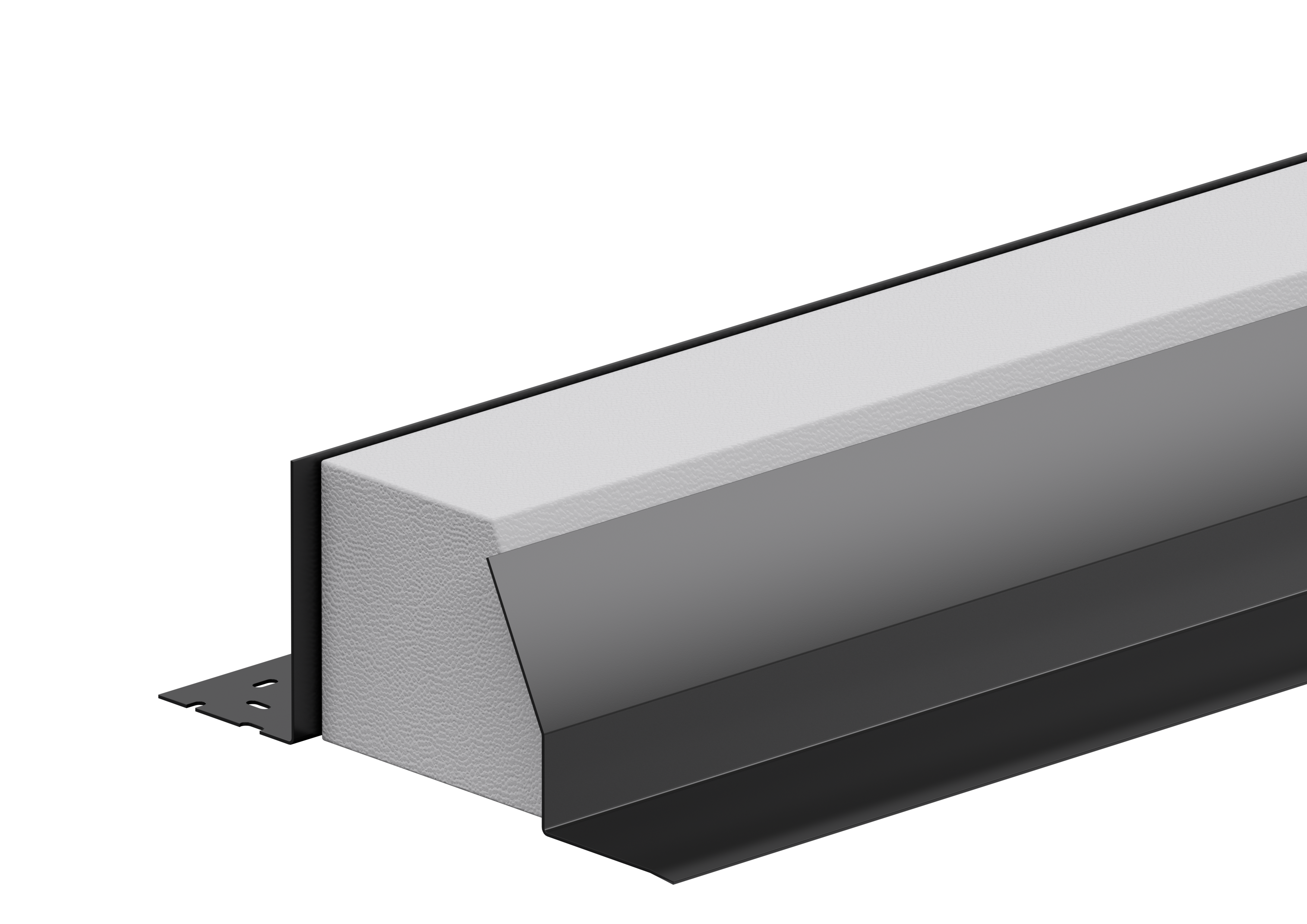

Steel lintel with unique thermal break for use in cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. The easy to use open back profile allows masonry to be built up continuously on both outer and inner leaf, available in standard, heavy, and extra heavy duty from 90-205mm cavities. Fully insulated, with complete thermal break, integral plaster key and Catnic's signature black powder coating.
  • Psi values of 0.02 to 0.05 W/mK
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • Designed to maximise energy saving at home
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

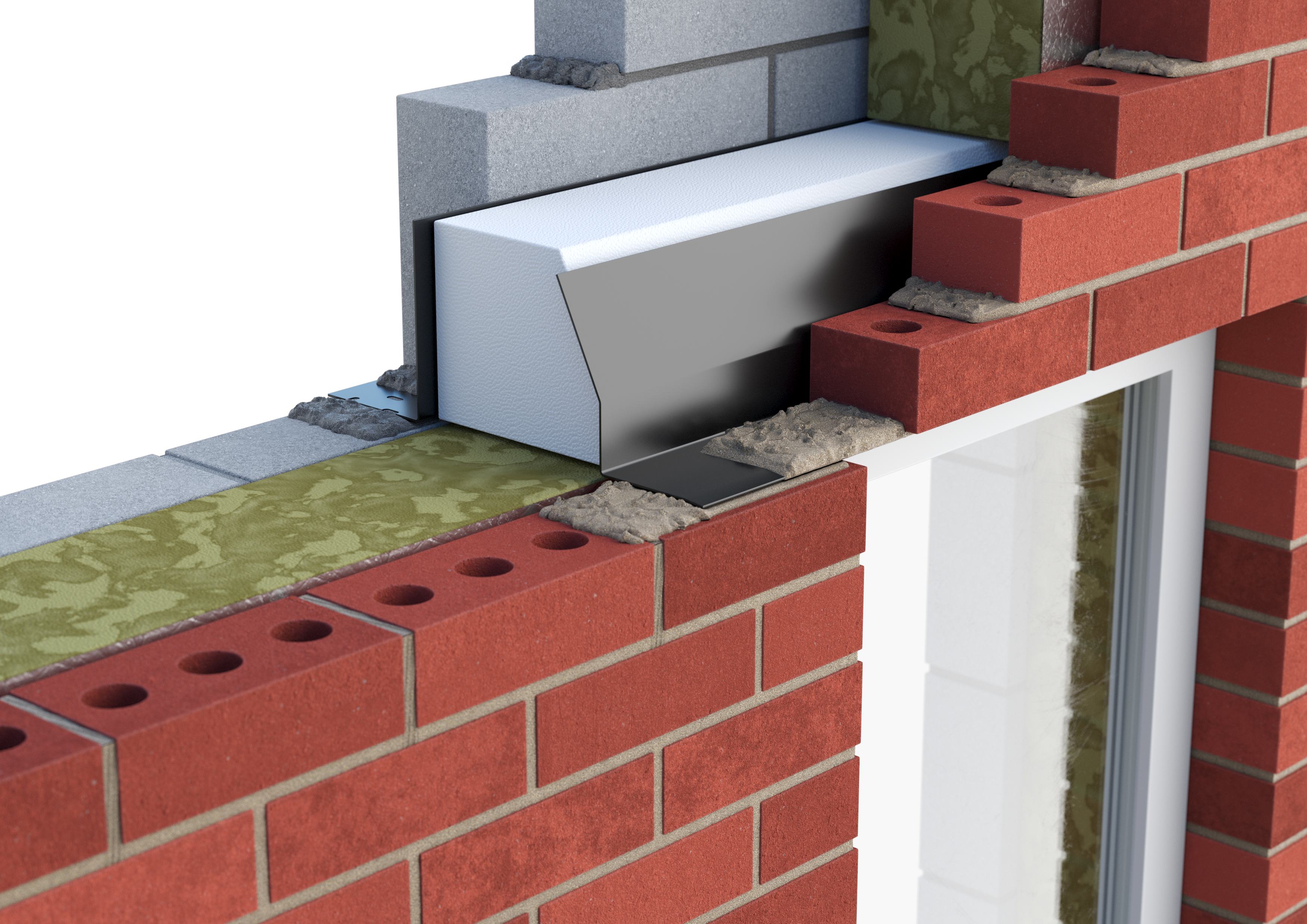

Catnic standard duty thermally broken cavity wall lintel for 190-205mm cavity wall shown in situ
  • Psi values of 0.02 to 0.05 W/mK

    Independently verified by the Building Research Establishment.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
