Overview

Product Information

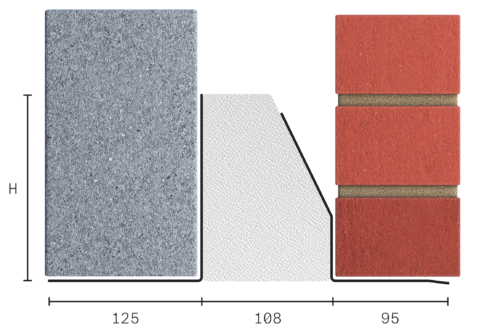

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
110-125
Inner Leaf
125-140
Wall Width
Loading Conditions
Standard

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/3:1 Weight (kg) Nominal Height (mm)
TS110/1250750 750 12 6.32 153
TS110/1250900 900 12 7.58 153
TS110/1251050 1050 12 8.84 153
TS110/1251200 1200 12 10.10 153
TS110/1251350 1350 17 16.65 198
TS110/1251500 1500 17 18.50 198
TS110/1251650 1650 17 20.34 198
TS110/1251800 1800 17 22.19 198
TS110/1251950 1950 20 32.19 236
TS110/1252100 2100 20 34.67 236
TS110/1252250 2250 20 37.15 236
TS110/1252400 2400 20 39.62 236
TS110/1252550 2550 26 44.32 229
TS110/1252700 2700 26 46.93 229
TS110/1252850 2850 26 49.53 229
TS110/1253000 3000 26 52.14 229
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm.
  • Separate DPC tray required
  • Achieving a remarkably low Psi value ensures this Catnic lintel will always meet the performance criteria requirements of Appendix Q found in SAP 2012 providing easy compliance with Part L of the Building Regulations

Features

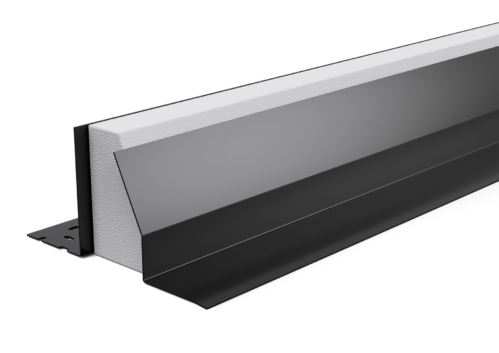

Steel lintel with unique thermal break for use in cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. The easy to use open back profile allows masonry to be built up continuously on both outer and inner leaf, available in standard, heavy, and extra heavy duty from 90-205mm cavities. Fully insulated, with complete thermal break, integral plaster key and Catnic's signature black powder coating.
  • Psi values of 0.02 to 0.05 W/mK
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • Designed to maximise energy saving at home
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

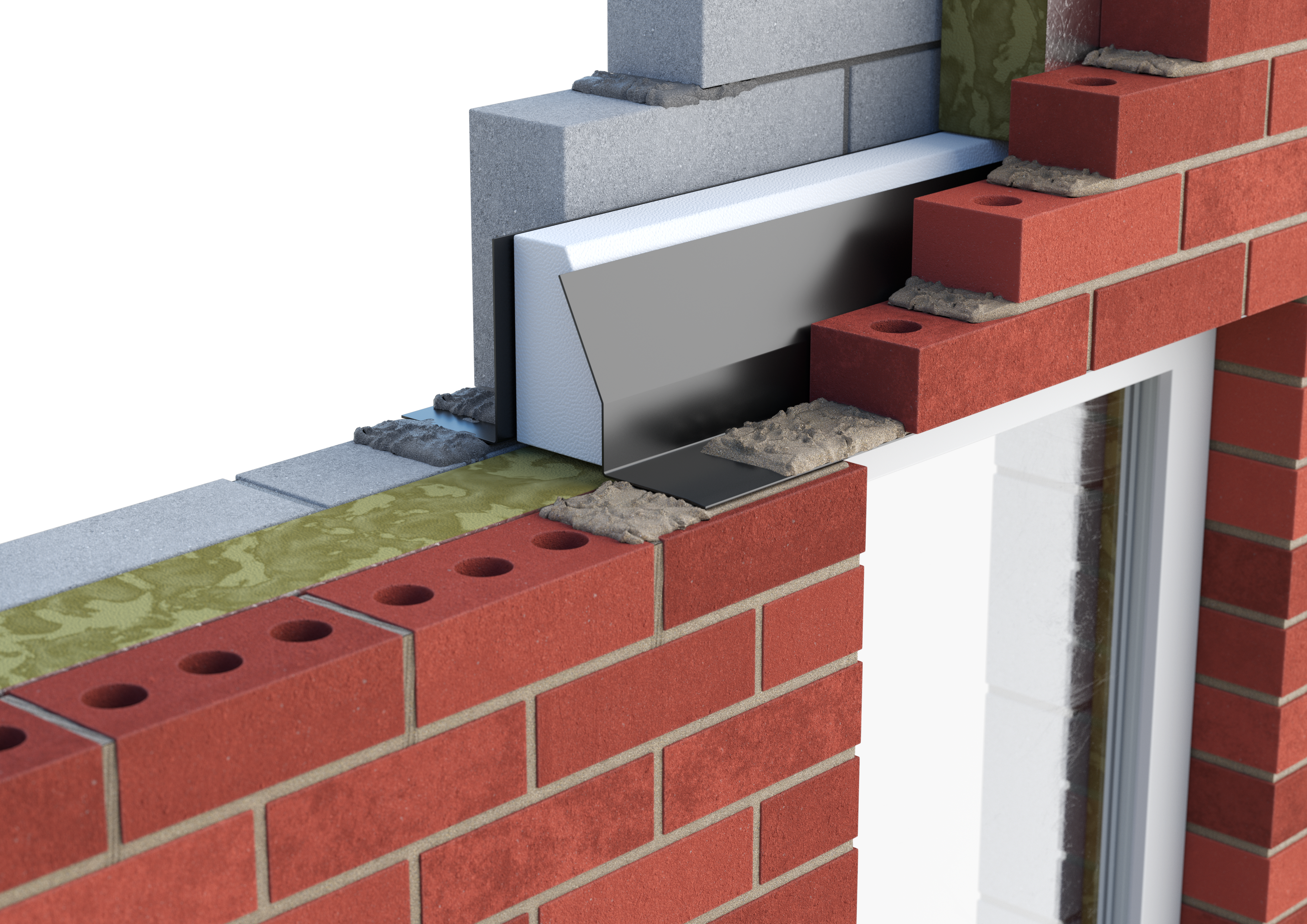

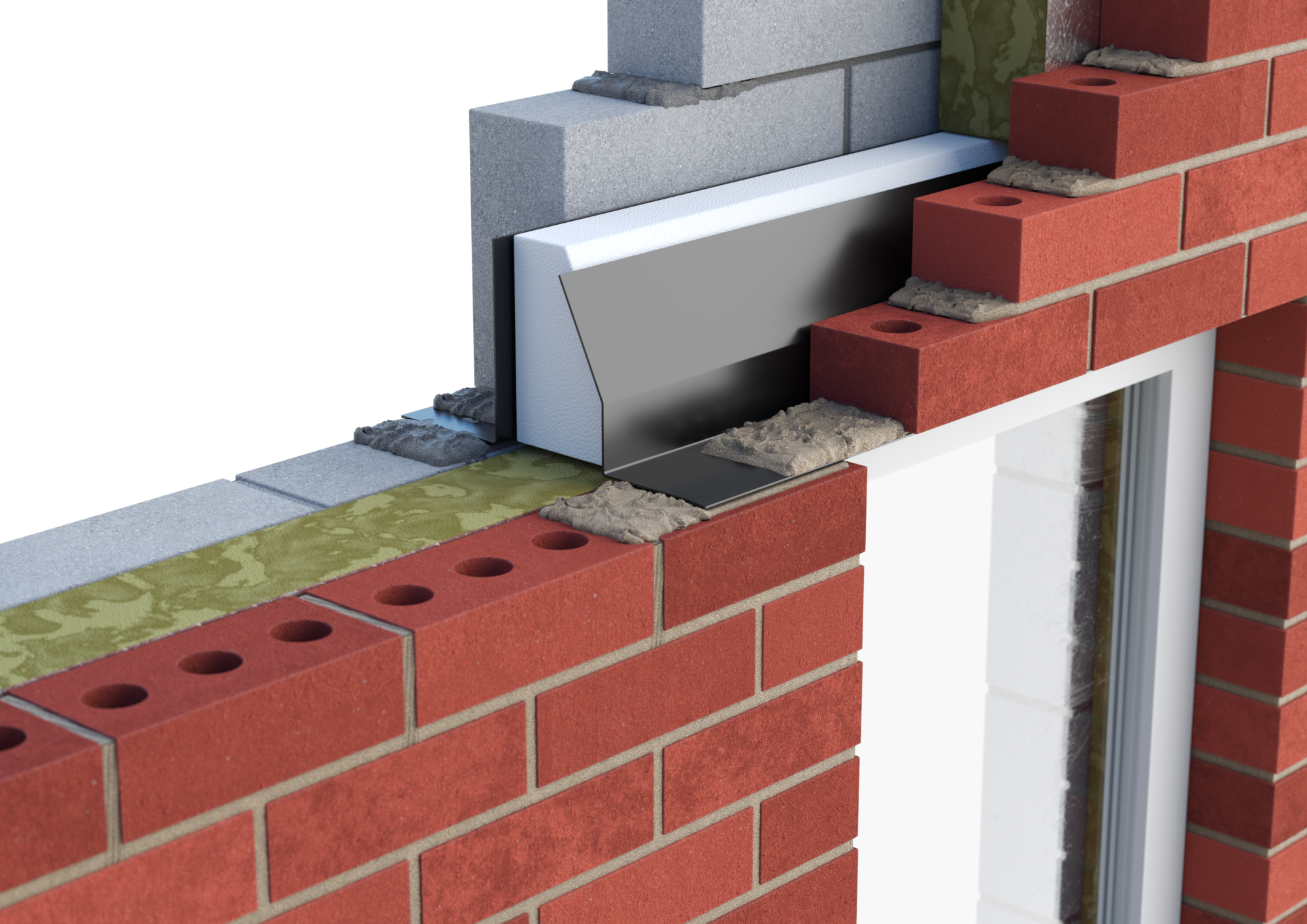

Catnic standard duty thermally broken cavity wall lintel for 110-125mm cavity wall shown in situ
  • Psi values of 0.02 to 0.05 W/mK

    Independently verified by the Building Research Establishment.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
