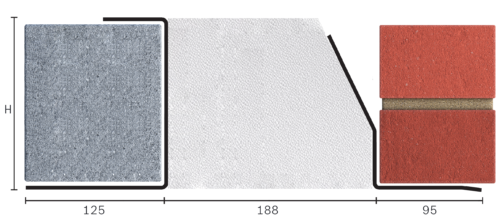

Product Code Standard Length (mm) SWL (kN) 1:1/19:1 Weight (kg) Nominal Height (mm)
TH190/1250750 750 32 10.88 154
TH190/1250900 900 32 13.06 154
TH190/1251050 1050 32 15.24 154
TH190/1251200 1200 32 17.41 154
TH190/1251350 1350 32 19.59 154
TH190/1251500 1500 32 21.77 154
TH190/1251650 1650 32 23.94 154
TH190/1251800 1800 32 26.12 154
TH190/1251950 1950 48 35.06 229
TH190/1252100 2100 48 37.76 229
TH190/1252250 2250 45 40.46 229
TH190/1252400 2400 45 43.15 229
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 2400mm.
  • Separate DPC tray required
  • When using the Catnic TH and TX Open Back ranges with concrete floors, always ensure that the blockwork is built tight against the inner vertical face, and that a mortar joint is added to the top of the blockwork so that the floor units have an even spread over the inner flange of the lintel.
  • Achieving a remarkably low Psi value ensures this Catnic lintel will always meet the performance criteria requirements of Appendix Q found in SAP 2012 providing easy compliance with Part L of the Building Regulations


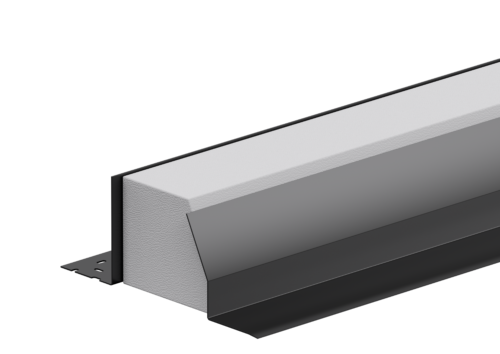

Steel lintel with unique thermal break for use in cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. The easy to use open back profile allows masonry to be built up continuously on both outer and inner leaf, available in standard, heavy, and extra heavy duty from 90-205mm cavities. Fully insulated, with complete thermal break, integral plaster key and Catnic's signature black powder coating.
  • Psi values of 0.02 to 0.05 W/mK
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • Designed to maximise energy saving at home
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

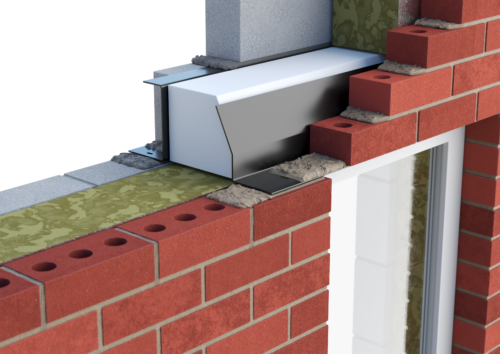

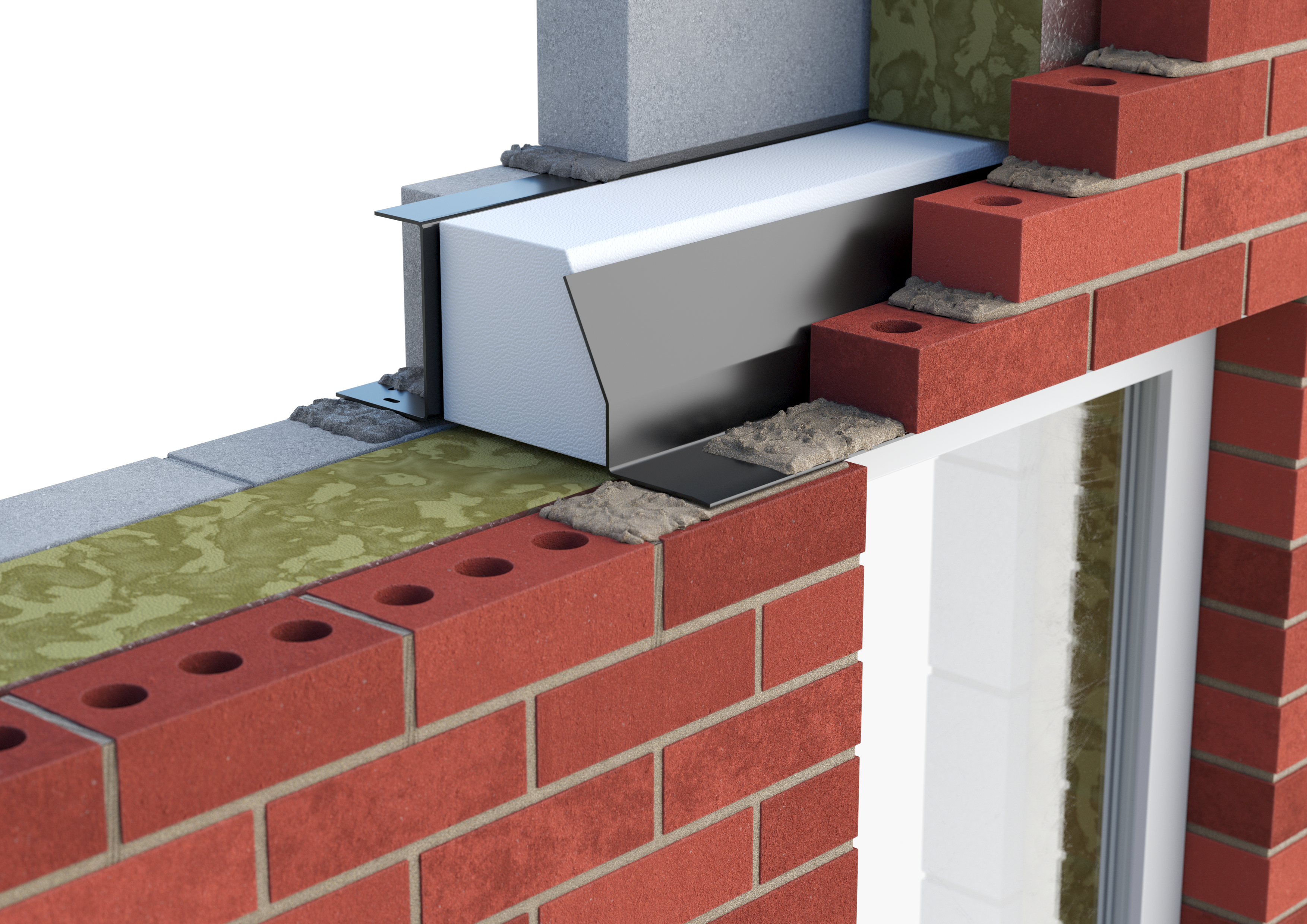

Catnic heavy duty thermally broken cavity wall lintel for 190-205mm cavity wall shown in situ
  • Psi values of 0.02 to 0.05 W/mK

    Independently verified by the Building Research Establishment.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
