Heavy Duty Steel Lintel

TH110/100

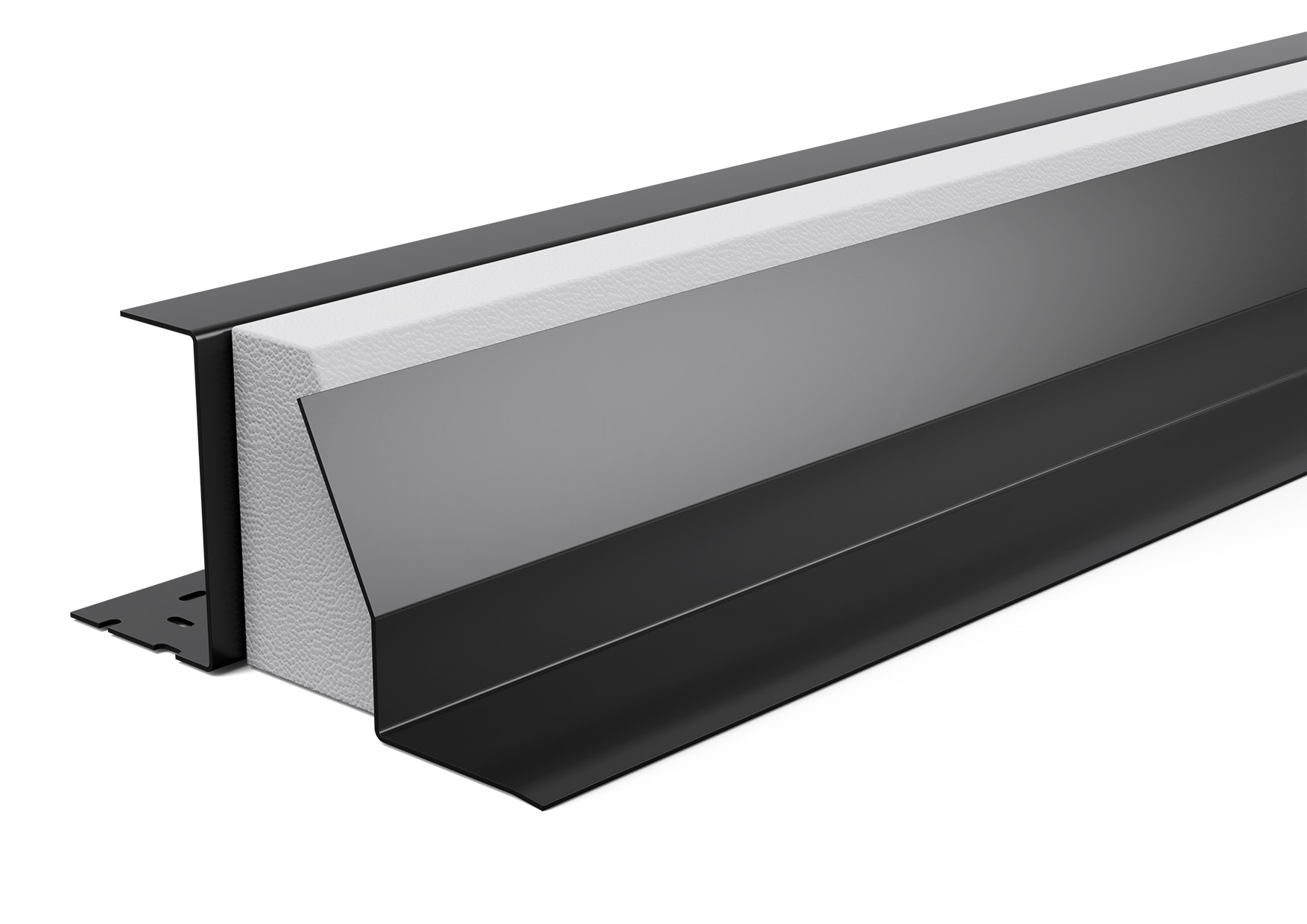

Catnic heavy duty thermally broken cavity wall lintel for 110-125mm cavity with 125-140mm inner leaf

Overview

Product Information

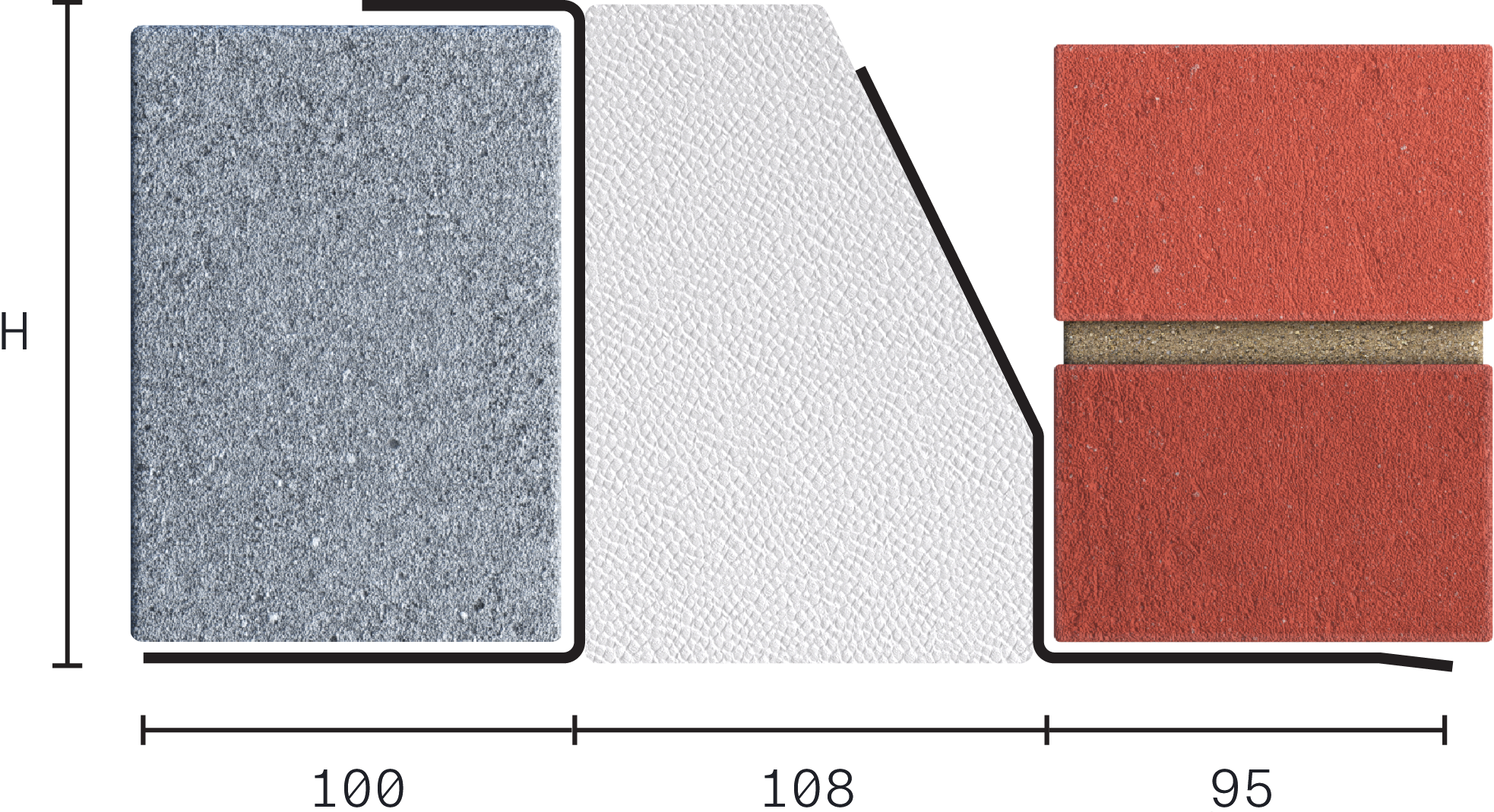

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
110-125
Inner Leaf
100-115
Wall Width
Loading Conditions
Heavy

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/19:1 Weight (kg) Nominal Height (mm)
TH110/1000750 750 32 10.05 154
TH110/1000900 900 32 12.06 154
TH110/1001050 1050 32 14.07 154
TH110/1001200 1200 32 16.08 154
TH110/1001350 1350 32 18.09 154
TH110/1001500 1500 32 20.10 154
TH110/1001650 1650 32 22.11 154
TH110/1001800 1800 32 24.12 154
TH110/1001950 1950 48 32.86 229
TH110/1002100 2100 48 35.39 229
TH110/1002250 2250 45 37.91 229
TH110/1002400 2400 45 40.44 229
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in 150mm increments up to 2400mm.
  • Separate DPC tray required
  • When using the Catnic TH and TX Open Back ranges with concrete floors, always ensure that the blockwork is built tight against the inner vertical face, and that a mortar joint is added to the top of the blockwork so that the floor units have an even spread over the inner flange of the lintel.
  • Achieving a remarkably low Psi value ensures this Catnic lintel will always meet the performance criteria requirements of Appendix Q found in SAP 2012 providing easy compliance with Part L of the Building Regulations

Features

Steel lintel with unique thermal break for use in cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. The easy to use open back profile allows masonry to be built up continuously on both outer and inner leaf, available in standard, heavy, and extra heavy duty from 90-205mm cavities. Fully insulated, with complete thermal break, integral plaster key and Catnic's signature black powder coating.
  • Psi values of 0.02 to 0.05 W/mK
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • Designed to maximise energy saving at home
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

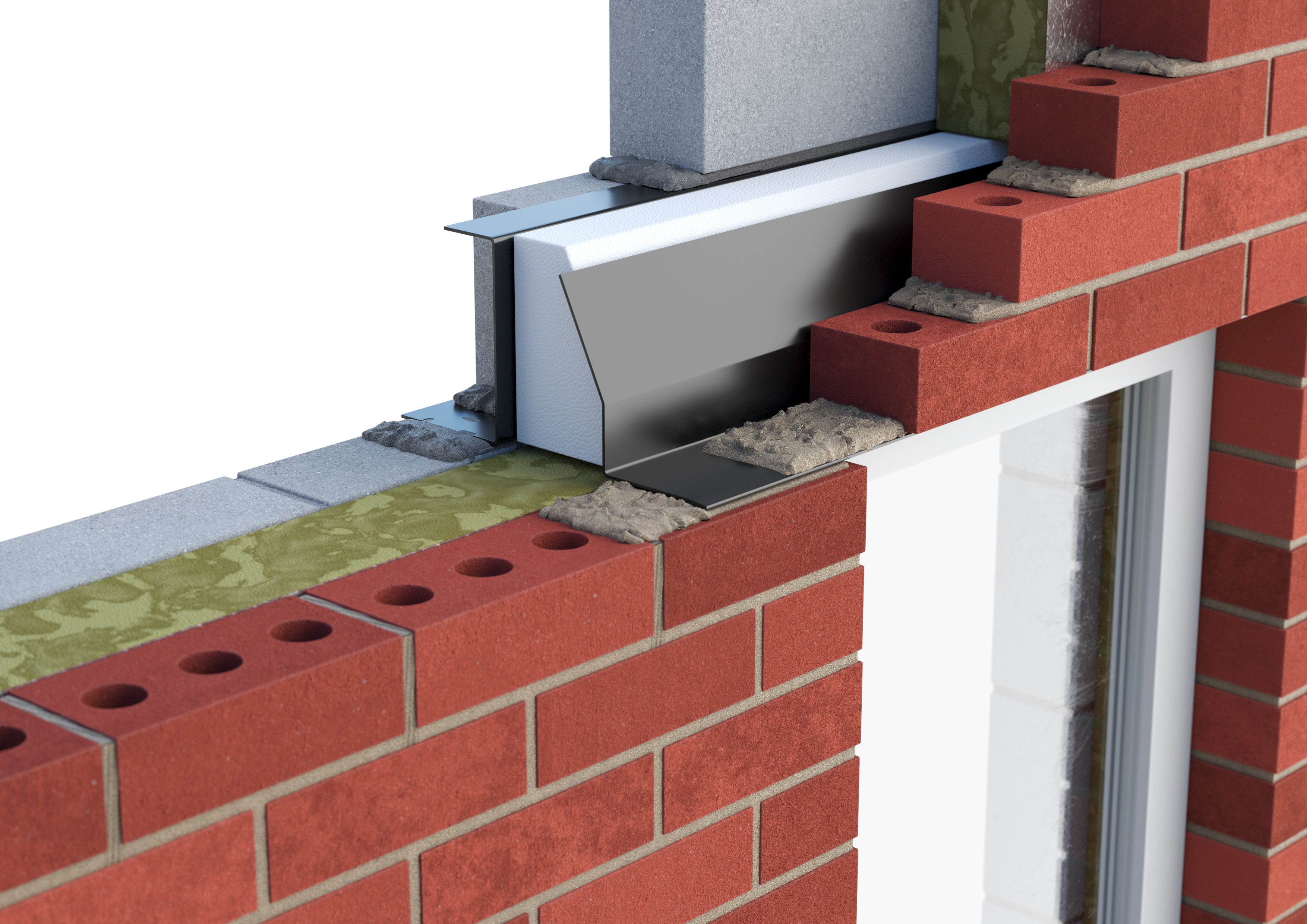

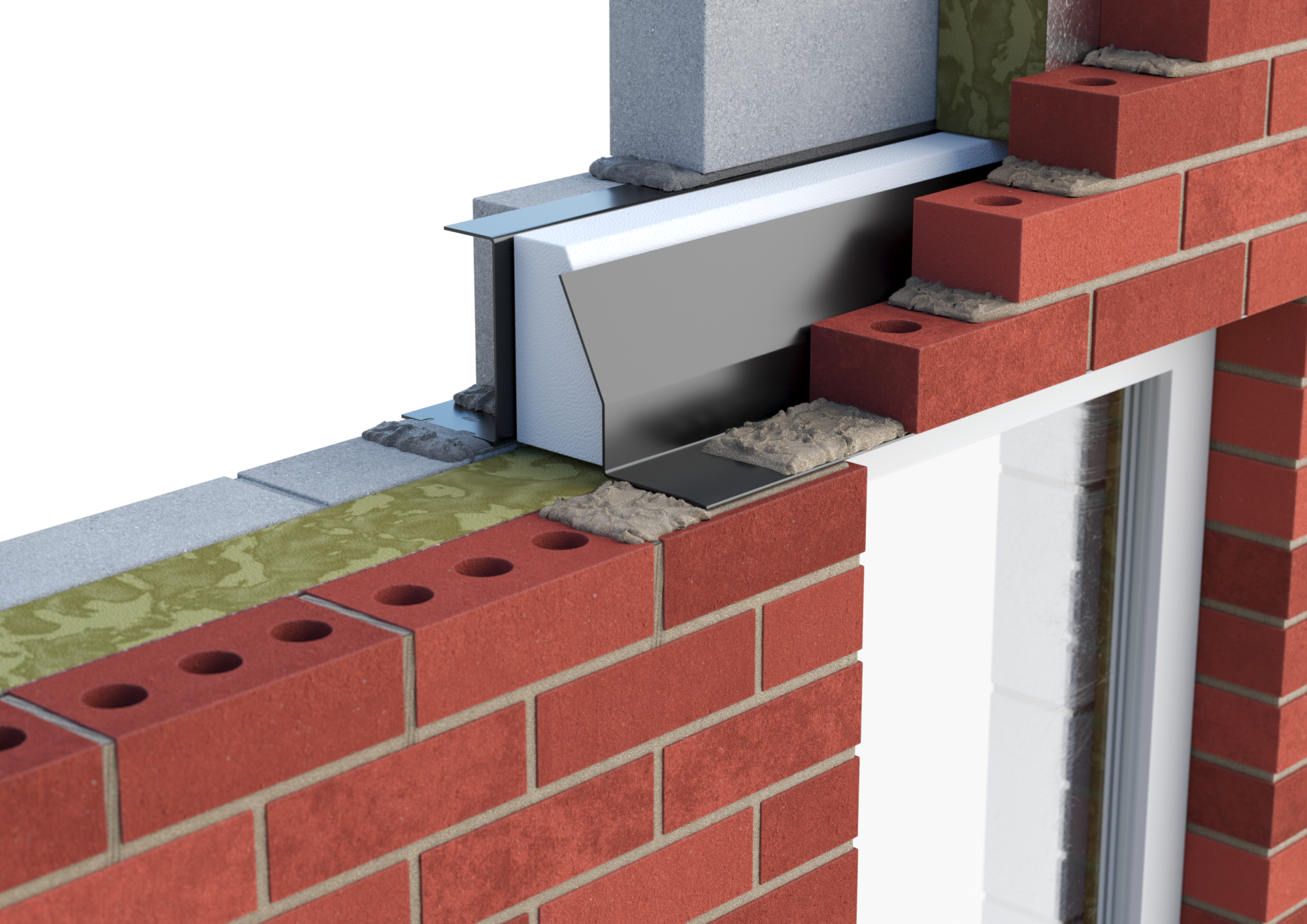

Catnic heavy duty thermally broken cavity wall lintel for 110-125mm cavity wall shown in situ
  • Psi values of 0.02 to 0.05 W/mK

    Independently verified by the Building Research Establishment.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.

What our customers think

  • “We have found the thermally broken lintels well-made, easy to work with and durable. Using thermally broken lintels on site has helped us to comply with the Building Regulation Part L requirements in a simple, straightforward manner”

    George Sowerby
    T.G Sowerby Developments Ltd

  • “I recently placed two orders with Catnic and I can honestly say from speaking to the rep Toby, all the way to transport their service and communication regarding the orders was superb!.”

    Dave Daniels
    Travis Perkins PLC

  • "Catnic has always been very quick and prompt in getting back to us when we ask for quotes and any problems we may come across. Very useful and easy to deal with! Excellent!"

    George Atkins
    Turnbull

  • “Catnic is a leader in its field, and the high quality of its TBL is testament to that. The team has been on hand at every stage of this project so far, offering technical support during the planning stages and now into the early stages of installation"

    Matt Taylor
    RBLI

  • "We have been using Catnic Lintels for over 10 years, they are by far the best. A superbly well organised company who offer exemplary service, their lintels are extremely capable and well suited to our high quality homes."

    Chris Dodge
    County and Coast Homes

  • “Catnic worked with our drawings and outlined exactly what we needed - including the structural loading measurements. Catnic is the only manufacturer that provides such a comprehensive scheduling service for free. It really is invaluable."

    Mike Parkinson
    Keyworker Homes

  • "Catnic is able to provide quality products according to the demands of the project at a competitive price"

    Steve Blythe
    Skanska

Video Guides

When selecting a lintel, there are three factors that should be considered to ensure the correct specification: the type of wall construction, the dimensions of the structural opening and the total load on the lintel. In this video, we run you through the lintel selection process.

Catnic thermally broken lintel installation

Once you have chosen the correct lintel for your project, it is crucial that the lintel be installed properly – if it is not, it could lead to serious issues for the building. In this video, we explain the installation considerations for cavity wall lintels.

Builder installed Catnic CG90/100 lintel

Catnic’s Thermally Broken Lintel is the only lintel on the market to provide a complete thermal break between the inner and outer leafs. In this video, we outline the key benefits of Thermally Broken Lintels and explain the installation process.

Catnic TS90/100 lifted into position by builders

Steel lintels, and specifically Catnic's thermally broken lintels, have a significant role to play in reducing thermal bridging and achieving carbon gains. They represent one of the simplest and most economical ways for building fabric to be designed and constructed to help achieve the carbon gains necessary to meet current and future building regulations.

Catnic balcony installation at kingsdown gate

Support & FAQs

Calculating the load imposed on lintels depends on a variety of factors, including the wall type in which the lintel is installed, and whether floor or roof loads need to be accounted for in addition to masonry loads. Lintels are primarily design to support uniformly distributed loads (UDLs) but on occasions point loads also need to be considered. This guide only provides an overview of how the loads on lintel are established and should not be used as a substitute for obtaining loading calculations either direct from the lintel manufacturer or from a qualified structural engineer.

Specifying Catnic’s Thermally Broken Lintels (TBLs) will significantly improve the thermal efficiency of a property and help ensure that the project’s necessary environmental credentials are met. Specifying Catnic TBLs can be done with ease as they have the same safe working loads as Catnic’s traditional lintels – meaning TBLs can be specified like for like. Catnic TBLs can also be used for standard duty, heavy duty and extra heavy use, making them suitable for a wide range of projects. You'll find our full range here

The correct specification of lintels is crucial, however it is just as important to ensure that each one is installed correctly. Here are five top tips to ensure an trouble free installation. To watch our video on installing cavity wall lintels click here
