Overview

Product Information

Wall Construction
N/A
Outer Leaf
N/A
Cavity
N/A
Inner Leaf
N/A
Wall Width
Loading Conditions
N/A

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
FCWHITE0750 750 N/A 0.21 N/A
FCWHITE0900 900 N/A 0.25 N/A
FCWHITE1050 1050 N/A 0.29 N/A
FCWHITE1200 1200 N/A 0.33 N/A
FCWHITE1350 1350 N/A 0.37 N/A
FCWHITE1500 1500 N/A 0.41 N/A
FCWHITE1650 1650 N/A 0.46 N/A
FCWHITE1800 1800 N/A 0.50 N/A
FCWHITE1950 1950 N/A 0.54 N/A
FCWHITE2100 2100 N/A 0.58 N/A
FCWHITE2250 2250 N/A 0.62 N/A
FCWHITE2400 2400 N/A 0.66 N/A
FCWHITE2550 2550 N/A 0.70 N/A
FCWHITE2700 2700 N/A 0.75 N/A
FCWHITE2850 2850 N/A 0.79 N/A
FCWHITE3000 3000 N/A 0.83 N/A
FCWHITE3300 3300 N/A 0.91 N/A
FCWHITE3600 3600 N/A 0.99 N/A
FCWHITE3900 3900 N/A 1.08 N/A
FCWHITE4200 4200 N/A 1.17 N/A
FCWHITE4575 4575 N/A 1.26 N/A
FCWHITE4800 4800 N/A 1.33 N/A
FCWHITE5100 5100 N/A 1.40 N/A
  • All external wall lintels fitted with lintel cladding must be installed with a flexible damp proof course (DPC) ensuring that the DPC projects beyond the front face of the cladding.

Features

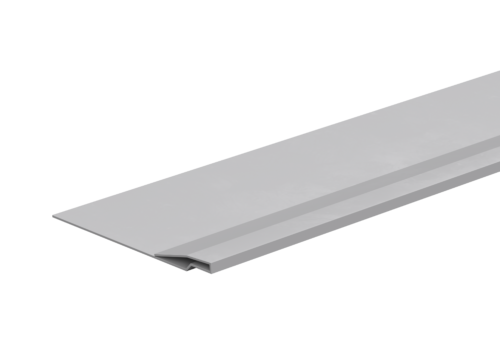

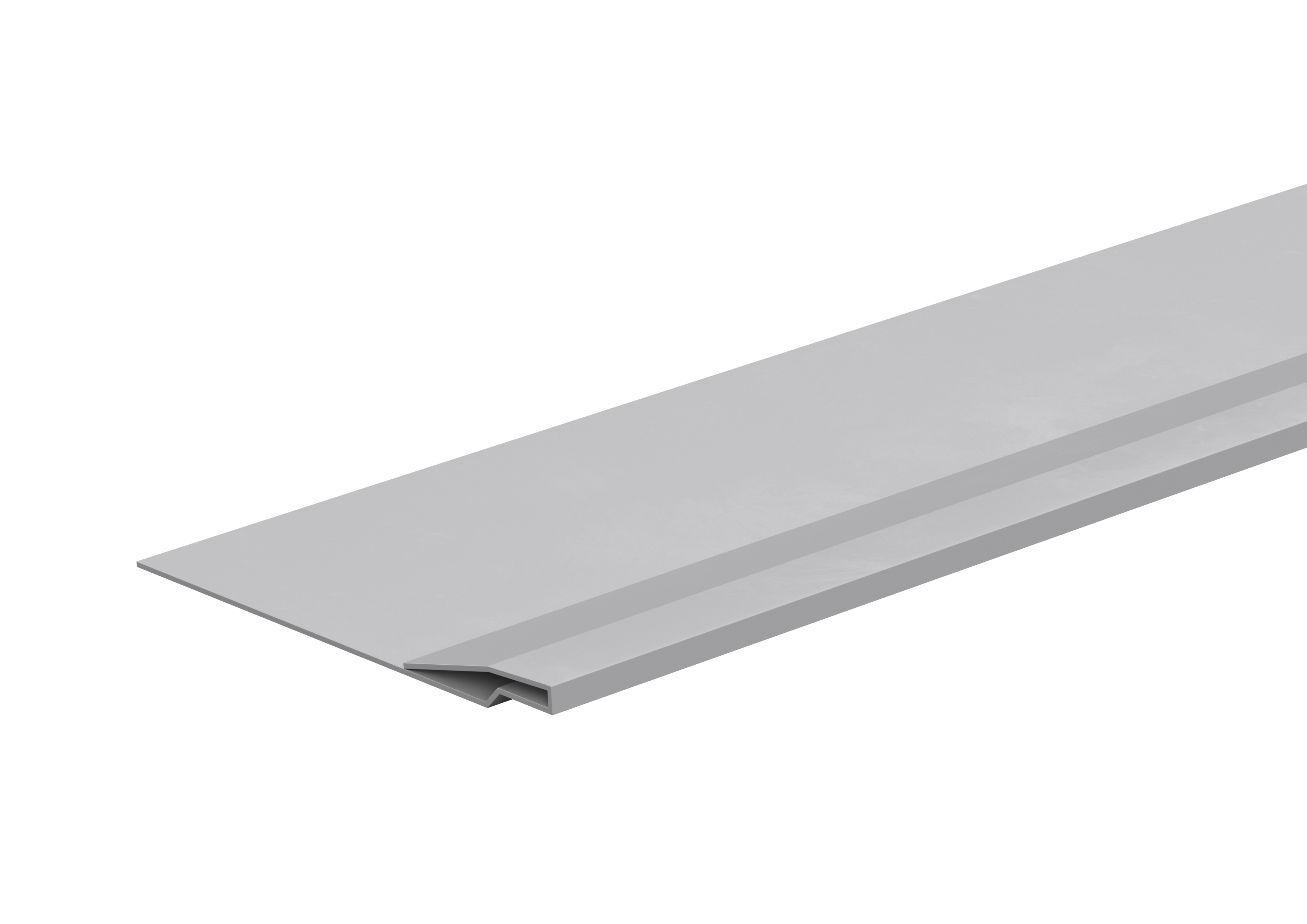

Lintel Soffitt Cladding is an optional cladding that provides extra protection, especially in coastal regions and in situations where much of the lintel soffit is exposed.
  • Lintel Soffitt Cladding is an optional cladding that provides extra protection, especially in coastal regions and in situations where much of the lintel soffit is exposed.
  • Suitable for use with Cougar lintels (CG, CH, CX) timber frame lintels (CTF5, CTF7, CTF9, CN23), thermally broken lintels (TS, TH, TX) and External solid wall lintels (CN71 and CN81).
