Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
FCBLACK0750 750 N/A 0.21 N/A
FCBLACK0900 900 N/A 0.25 N/A
FCBLACK1050 1050 N/A 0.29 N/A
FCBLACK1200 1200 N/A 0.33 N/A
FCBLACK1350 1350 N/A 0.37 N/A
FCBLACK1500 1500 N/A 0.41 N/A
FCBLACK1650 1650 N/A 0.46 N/A
FCBLACK1800 1800 N/A 0.50 N/A
FCBLACK1950 1950 N/A 0.54 N/A
FCBLACK2100 2100 N/A 0.58 N/A
FCBLACK2250 2250 N/A 0.62 N/A
FCBLACK2400 2400 N/A 0.66 N/A
FCBLACK2550 2550 N/A 0.70 N/A
FCBLACK2700 2700 N/A 0.74 N/A
FCBLACK2850 2850 N/A 0.78 N/A
FCBLACK3000 3000 N/A 0.83 N/A
FCBLACK3300 3300 N/A 0.91 N/A
FCBLACK3600 3600 N/A 0.99 N/A
FCBLACK3900 3900 N/A 1.08 N/A
FCBLACK4200 4200 N/A 1.16 N/A
FCBLACK4575 4575 N/A 1.26 N/A
FCBLACK4800 4800 N/A 1.33 N/A
FCBLACK5100 5100 N/A 1.41 N/A
  • All external wall lintels fitted with lintel cladding must be installed with a flexible damp proof course (DPC) ensuring that the DPC projects beyond the front face of the cladding.

Features

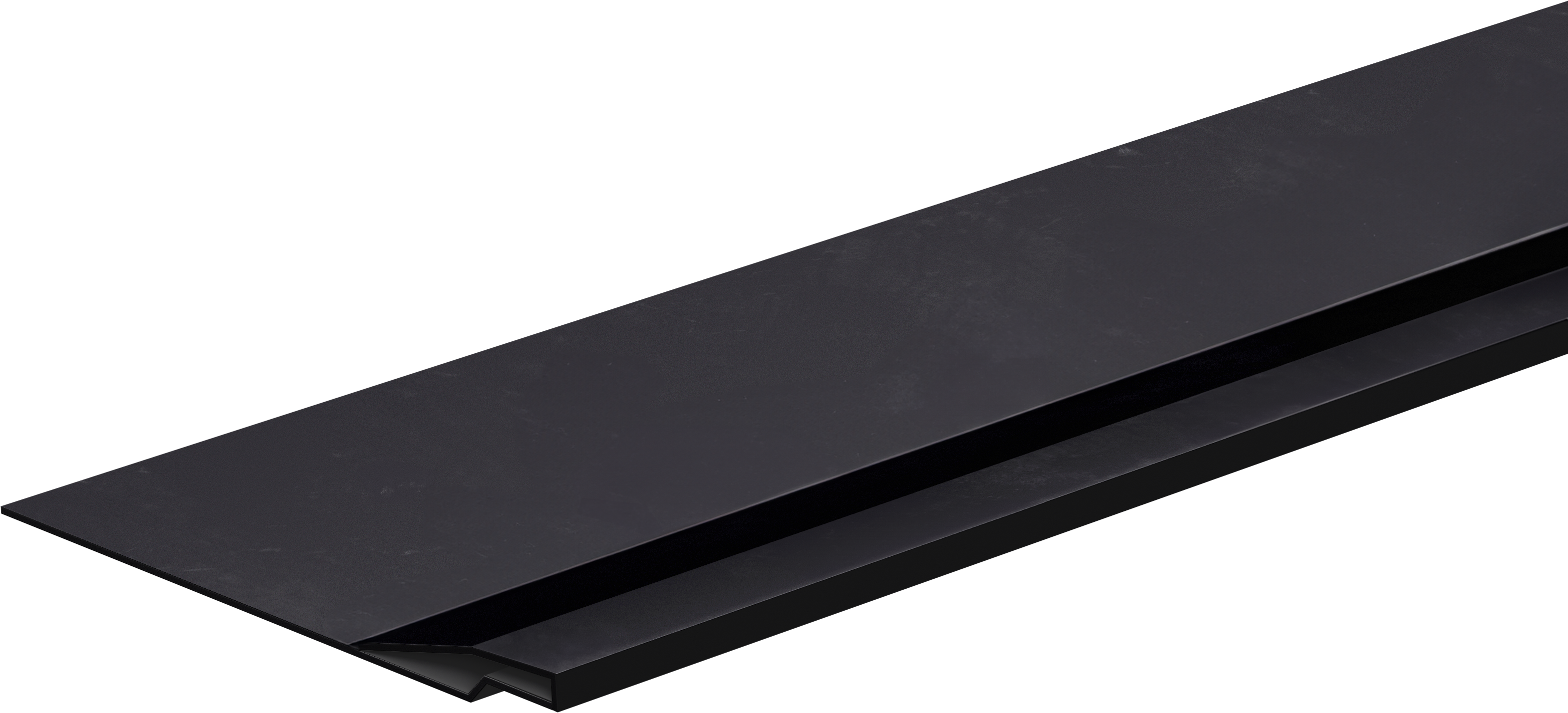

Lintel Soffitt Cladding is an optional cladding that provides extra protection, especially in coastal regions and in situations where much of the lintel soffit is exposed.
  • Lintel Soffitt Cladding is an optional cladding that provides extra protection, especially in coastal regions and in situations where much of the lintel soffit is exposed.
  • Suitable for use with Cougar lintels (CG, CH, CX) timber frame lintels (CTF5, CTF7, CTF9, CN23), thermally broken lintels (TS, TH, TX) and External solid wall lintels (CN71 and CN81).
  • N/A
  • N/A
  • N/A
  • N/A
