Extreme Load Steel Lintel

CXL350

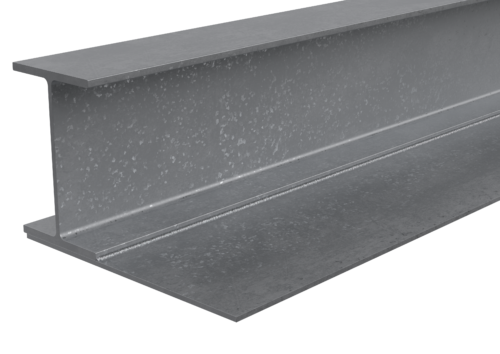

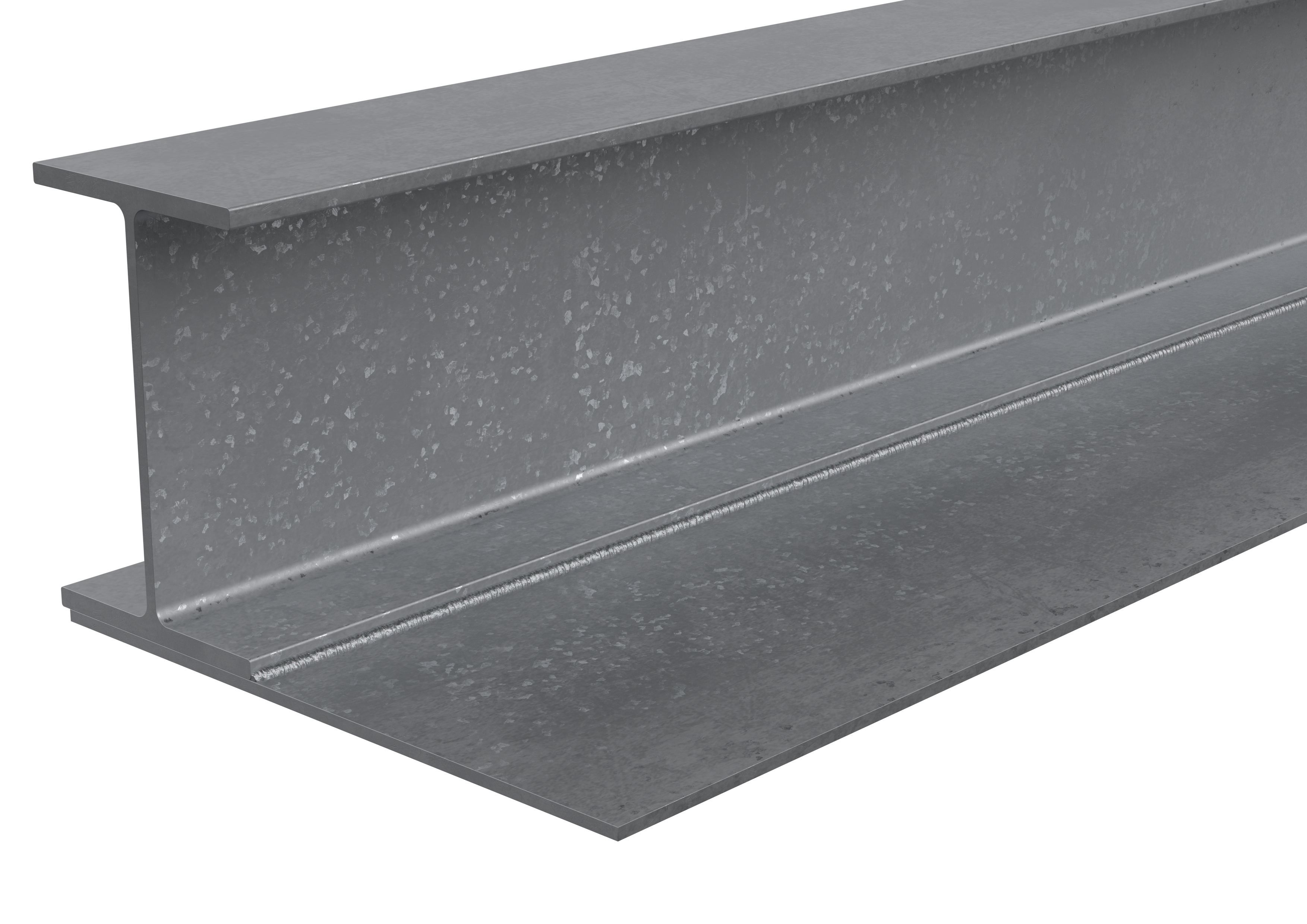

Catnic extreme duty cavity wall lintel for 150mm cavity

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
150-165
Inner Leaf
100-115
Wall Width
Loading Conditions
Extreme Load

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 5:1/19:1 Weight (kg) Nominal Height (mm)
CXL350/2100 2100 88 97.02 213
CXL350/2150 2150 88 99.33 213
CXL350/2200 2200 88 101.64 213
CXL350/2250 2250 88 103.95 213
CXL350/2300 2300 88 106.26 213
CXL350/2400 2400 88 110.88 213
CXL350/2450 2450 88 113.19 213
CXL350/2500 2500 88 115.50 213
CXL350/2550 2550 88 117.81 213
CXL350/2600 2600 88 120.12 213
CXL350/2650 2650 88 122.43 213
CXL350/2700 2700 88 124.74 213
CXL350/2750 2750 88 127.05 213
CXL350/2800 2800 88 129.36 213
CXL350/2850 2850 88 131.57 213
CXL350/2900 2900 88 133.98 213
CXL350/2950 2950 88 136.29 213
CXL350/3000 3000 88 138.60 213
CXL350/3100 3100 83 143.22 213
CXL350/3150 3150 83 144.55 213
CXL350/3200 3200 83 147.84 213
CXL350/3250 3250 83 150.15 213
CXL350/3300 3300 83 152.46 213
CXL350/3350 3350 83 154.77 213
CXL350/3400 3400 83 157.08 213
CXL350/3450 3450 83 159.39 213
CXL350/3500 3500 83 161.70 213
CXL350/3600 3600 83 166.32 213
CXL350/3650 3650 83 168.63 213
CXL350/3700 3700 83 170.94 213
CXL350/3750 3750 83 173.25 213
CXL350/3800 3800 83 175.56 213
CXL350/3850 3850 83 177.87 213
CXL350/3900 3900 83 180.18 213
CXL350/4000 4000 83 184.80 213
CXL350/4050 4050 83 187.11 213
CXL350/4200 4200 83 194.04 213
CXL350/4250 4250 83 196.35 213
CXL350/4300 4300 83 198.66 213
CXL350/4350 4350 83 200.97 213
CXL350/4400 4400 83 203.28 213
CXL350/4450 4450 83 205.59 213
CXL350/4500 4500 83 207.90 213
CXL350/4575 4575 83 211.14 213
CXL350/4600 4600 83 212.52 213
CXL350/4650 4650 83 216.76 213
CXL350/4700 4700 83 217.14 213
CXL350/4750 4750 83 219.45 213
CXL350/4800 4800 83 221.76 213
CXL350/4900 4900 78 226.38 213
CXL350/4950 4950 78 228.69 213
CXL350/5000 5000 78 231.00 213
CXL350/5050 5050 78 233.31 213
CXL350/5100 5100 78 235.62 213
CXL350/5150 5150 71 237.93 213
CXL350/5200 5200 71 240.24 213
CXL350/5250 5250 71 242.55 213
CXL350/5350 5350 71 247.17 213
CXL350/5400 5400 71 249.48 213
CXL350/5500 5500 64 254.10 213
CXL350/5600 5600 64 258.72 213
CXL350/5650 5650 64 261.03 213
CXL350/5700 5700 64 263.34 213
CXL350/5800 5800 56 267.96 213
CXL350/6000 6000 56 277.20 213
CXL350/6300 6300 52 291.06 213
CXL350/6500 6500 52 300.30 213
CXL350/6600 6600 47 304.92 213
  • the SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 200mm end bearings.
  • Standard lengths are available in increments of 50mm at lengths up to 6600mm.

Features

Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised
  • Hot Dip Galvanised
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
  • Galvanised steel
