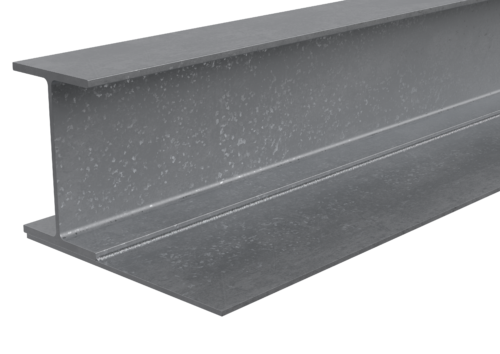

Extreme Load Steel Lintel

CXL330

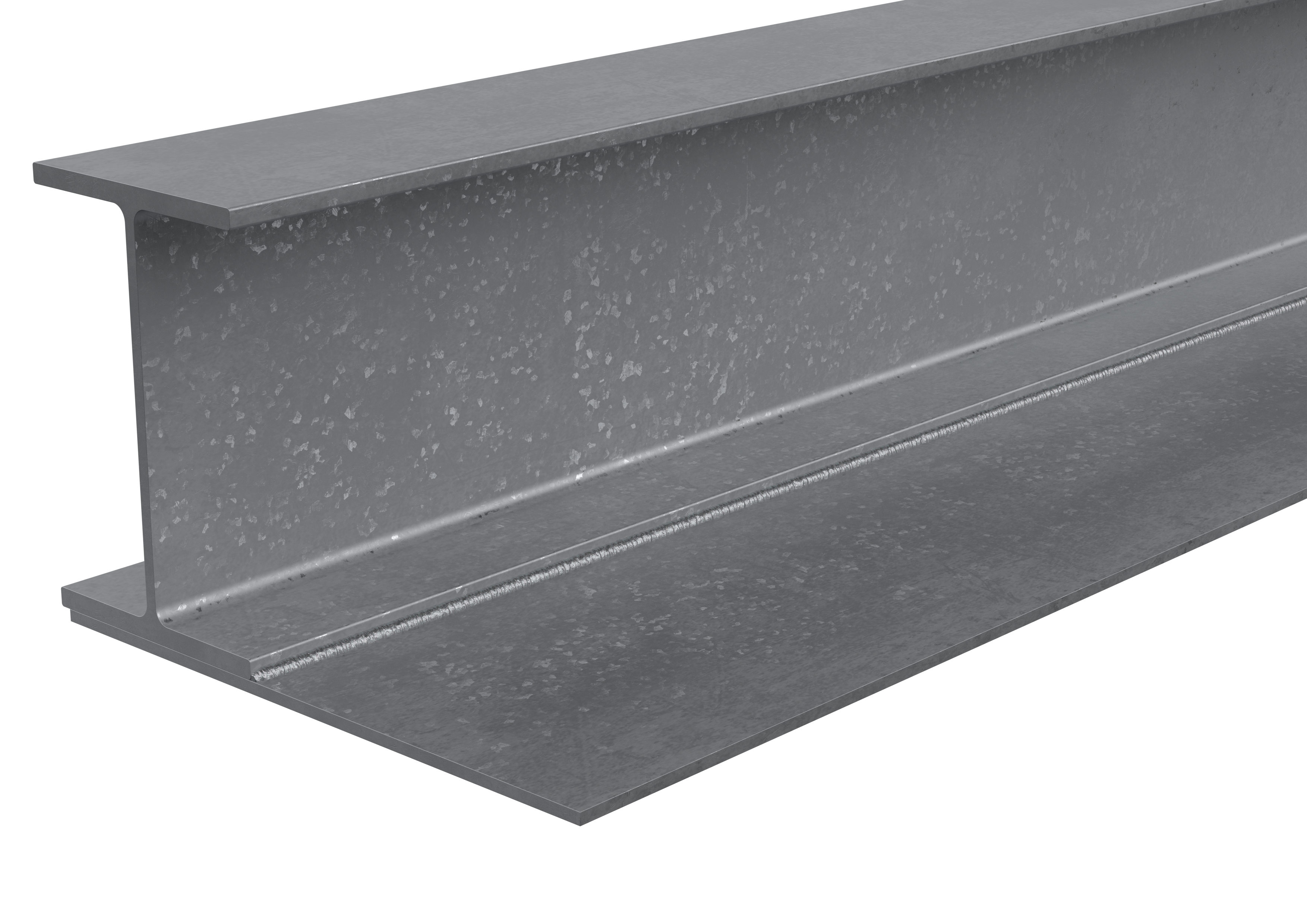

Catnic extreme duty cavity wall lintel for 330mm cavity

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
130-145
Inner Leaf
100-115
Wall Width
Loading Conditions
Extreme Load

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 5:1/19:1 Weight (kg) Nominal Height (mm)
CXL330/2100 2100 88 95.05 213
CXL330/2200 2200 88 99.56 213
CXL330/2250 2250 88 101.84 213
CXL330/2300 2300 88 104.09 213
CXL330/2400 2400 88 108.63 213
CXL330/2450 2450 88 110.89 213
CXL330/2500 2500 88 113.15 213
CXL330/2550 2550 88 115.41 213
CXL330/2600 2600 88 117.67 213
CXL330/2650 2650 88 119.93 213
CXL330/2700 2700 88 122.20 213
CXL330/2800 2800 88 126.73 213
CXL330/2850 2850 88 128.99 213
CXL330/2900 2900 88 131.25 213
CXL330/3000 3000 88 135.78 213
CXL330/3100 3100 83 140.30 213
CXL330/3150 3150 83 142.58 213
CXL330/3200 3200 83 144.83 213
CXL330/3300 3300 83 149.36 213
CXL330/3400 3400 83 153.88 213
CXL330/3450 3450 83 156.14 213
CXL330/3500 3500 83 158.39 213
CXL330/3600 3600 83 162.94 213
CXL330/3700 3700 83 167.45 213
CXL330/3750 3750 83 169.72 213
CXL330/3800 3800 83 171.99 213
CXL330/3900 3900 83 176.52 213
CXL330/3950 3950 83 178.77 213
CXL330/4000 4000 83 181.04 213
CXL330/4200 4200 83 190.07 213
CXL330/4250 4250 83 192.36 213
CXL330/4300 4300 83 194.61 213
CXL330/4400 4400 83 199.14 213
CXL330/4500 4500 83 203.67 213
CXL330/4600 4600 83 208.19 213
CXL330/4700 4700 83 212.71 213
CXL330/4800 4800 83 217.24 213
CXL330/4900 4900 78 221.77 213
CXL330/5000 5000 78 226.30 213
CXL330/5100 5100 78 230.82 213
CXL330/5200 5200 71 235.34 213
CXL330/5400 5400 71 244.39 213
CXL330/5450 5450 64 246.65 213
CXL330/5500 5500 64 248.92 213
CXL330/5600 5600 64 253.44 213
CXL330/5700 5700 64 257.98 213
CXL330/5750 5750 56 260.25 213
CXL330/5800 5800 56 262.50 213
CXL330/6000 6000 56 271.54 213
CXL330/6050 6050 52 273.81 213
CXL330/6300 6300 52 285.15 213
CXL330/6400 6400 47 289.65 213
CXL330/6600 6600 47 298.70 213
  • the SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 200mm end bearings.
  • Standard lengths are available in increments of 50mm at lengths up to 6600mm.

Features

Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised
  • Hot Dip Galvanised
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
  • Galvanised steel

What our customers think

  • “We have found the thermally broken lintels well-made, easy to work with and durable. Using thermally broken lintels on site has helped us to comply with the Building Regulation Part L requirements in a simple, straightforward manner”

    George Sowerby
    T.G Sowerby Developments Ltd

  • “I recently placed two orders with Catnic and I can honestly say from speaking to the rep Toby, all the way to transport their service and communication regarding the orders was superb!.”

    Dave Daniels
    Travis Perkins PLC

  • "Catnic has always been very quick and prompt in getting back to us when we ask for quotes and any problems we may come across. Very useful and easy to deal with! Excellent!"

    George Atkins
    Turnbull

  • “Catnic is a leader in its field, and the high quality of its TBL is testament to that. The team has been on hand at every stage of this project so far, offering technical support during the planning stages and now into the early stages of installation"

    Matt Taylor
    RBLI

  • "We have been using Catnic Lintels for over 10 years, they are by far the best. A superbly well organised company who offer exemplary service, their lintels are extremely capable and well suited to our high quality homes."

    Chris Dodge
    County and Coast Homes

  • “Catnic worked with our drawings and outlined exactly what we needed - including the structural loading measurements. Catnic is the only manufacturer that provides such a comprehensive scheduling service for free. It really is invaluable."

    Mike Parkinson
    Keyworker Homes

  • "Catnic is able to provide quality products according to the demands of the project at a competitive price"

    Steve Blythe
    Skanska

Video Guides

When selecting a lintel, there are three factors that should be considered to ensure the correct specification: the type of wall construction, the dimensions of the structural opening and the total load on the lintel. In this video, we run you through the lintel selection process.

Catnic thermally broken lintel installation

Once you have chosen the correct lintel for your project, it is crucial that the lintel be installed properly – if it is not, it could lead to serious issues for the building. In this video, we explain the installation considerations for cavity wall lintels.

Builder installed Catnic CG90/100 lintel

Catnic’s Thermally Broken Lintel is the only lintel on the market to provide a complete thermal break between the inner and outer leafs. In this video, we outline the key benefits of Thermally Broken Lintels and explain the installation process.

Catnic TS90/100 lifted into position by builders

Steel lintels, and specifically Catnic's thermally broken lintels, have a significant role to play in reducing thermal bridging and achieving carbon gains. They represent one of the simplest and most economical ways for building fabric to be designed and constructed to help achieve the carbon gains necessary to meet current and future building regulations.

Catnic balcony installation at kingsdown gate

Support & FAQs

Calculating the load imposed on lintels depends on a variety of factors, including the wall type in which the lintel is installed, and whether floor or roof loads need to be accounted for in addition to masonry loads. Lintels are primarily design to support uniformly distributed loads (UDLs) but on occasions point loads also need to be considered. This guide only provides an overview of how the loads on lintel are established and should not be used as a substitute for obtaining loading calculations either direct from the lintel manufacturer or from a qualified structural engineer.

Specifying Catnic’s Thermally Broken Lintels (TBLs) will significantly improve the thermal efficiency of a property and help ensure that the project’s necessary environmental credentials are met. Specifying Catnic TBLs can be done with ease as they have the same safe working loads as Catnic’s traditional lintels – meaning TBLs can be specified like for like. Catnic TBLs can also be used for standard duty, heavy duty and extra heavy use, making them suitable for a wide range of projects. You'll find our full range here

The correct specification of lintels is crucial, however it is just as important to ensure that each one is installed correctly. Here are five top tips to ensure an trouble free installation. To watch our video on installing cavity wall lintels click here
