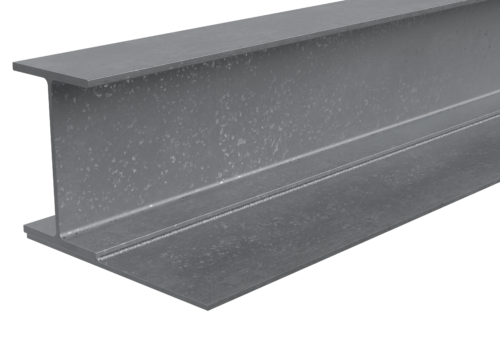

Extreme Load Steel Lintel

CXL310

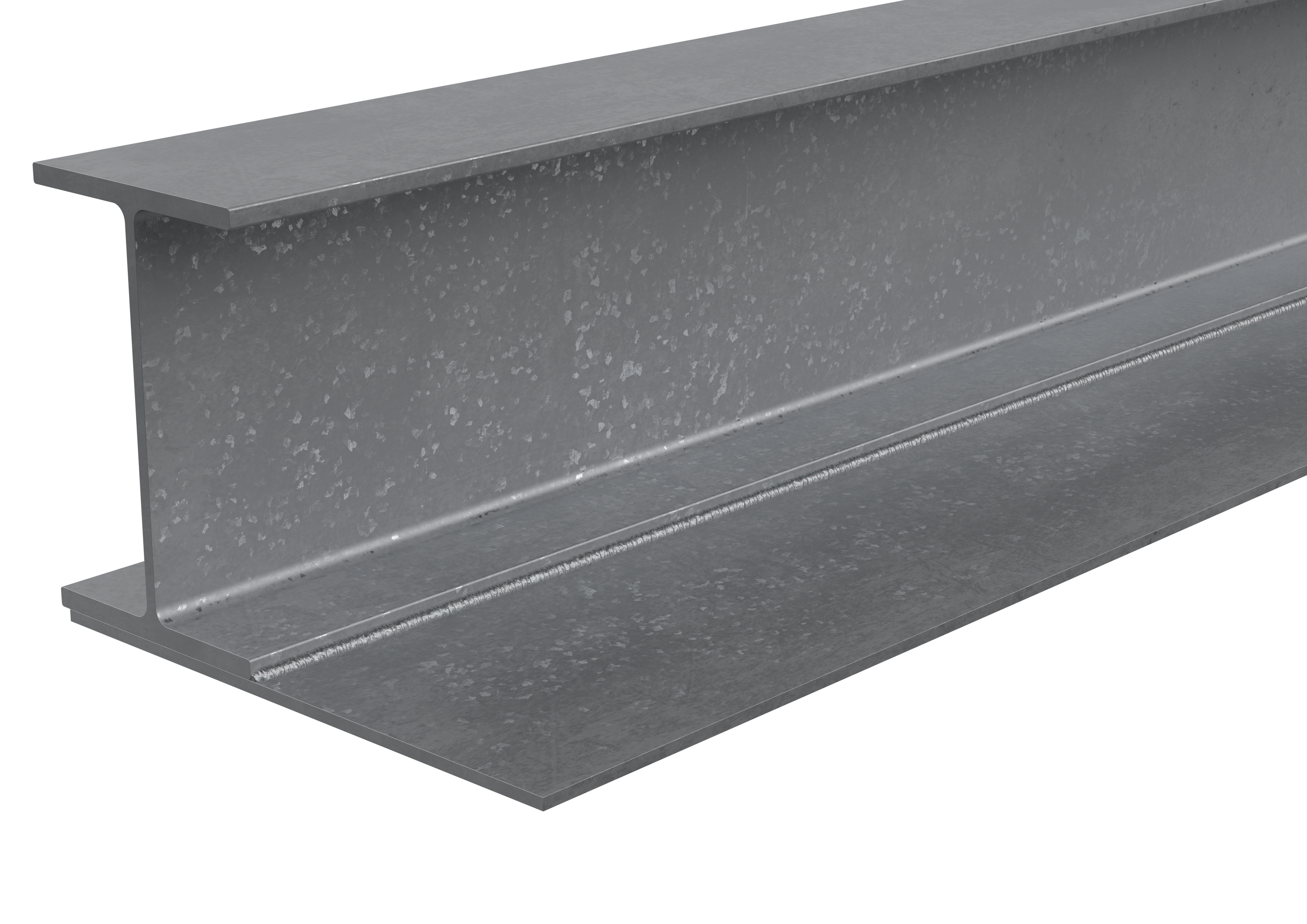

Catnic extreme duty cavity wall lintel for 110mm cavity

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
110-125
Inner Leaf
100-115
Wall Width
Loading Conditions
Extreme Load

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 5:1/19:1 Weight (kg) Nominal Height (mm)
CXL310/2100 2100 88 93.06 213
CXL310/2150 2150 88 95.28 213
CXL310/2200 2200 88 97.48 213
CXL310/2250 2250 88 99.69 213
CXL310/2300 2300 88 101.92 213
CXL310/2350 2350 88 104.12 213
CXL310/2400 2400 88 106.36 213
CXL310/2450 2450 88 108.57 213
CXL310/2500 2500 88 110.77 213
CXL310/2550 2550 88 112.99 213
CXL310/2600 2600 88 115.22 213
CXL310/2650 2650 88 117.42 213
CXL310/2700 2700 88 119.66 213
CXL310/2800 2800 88 124.06 213
CXL310/2850 2850 88 126.30 213
CXL310/2900 2900 88 128.52 213
CXL310/2950 2950 88 130.75 213
CXL310/3000 3000 88 132.95 213
CXL310/3050 3050 83 135.13 213
CXL310/3100 3100 83 137.39 213
CXL310/3150 3150 83 139.59 213
CXL310/3200 3200 83 141.81 213
CXL310/3250 3250 83 144.02 213
CXL310/3300 3300 83 146.23 213
CXL310/3350 3350 83 148.43 213
CXL310/3400 3400 83 150.69 213
CXL310/3450 3450 83 152.85 213
CXL310/3500 3500 83 155.12 213
CXL310/3550 3550 83 157.34 213
CXL310/3600 3600 83 159.53 213
CXL310/3650 3650 83 161.73 213
CXL310/3700 3700 83 167.45 213
CXL310/3800 3800 83 168.36 213
CXL310/3850 3850 83 170.57 213
CXL310/3900 3900 83 172.82 213
CXL310/3950 3950 83 175.04 213
CXL310/4000 4000 83 177.28 213
CXL310/4050 4050 83 179.44 213
CXL310/4100 4100 83 181.71 213
CXL310/4150 4150 83 183.92 213
CXL310/4200 4200 83 186.14 213
CXL310/4250 4250 83 188.31 213
CXL310/4300 4300 83 190.56 213
CXL310/4350 4350 83 192.80 213
CXL310/4400 4400 83 195.00 213
CXL310/4450 4450 83 197.22 213
CXL310/4500 4500 83 199.43 213
CXL310/4600 4600 83 203.86 213
CXL310/4650 4650 83 206.08 213
CXL310/4700 4700 83 208.27 213
CXL310/4750 4750 83 210.46 213
CXL310/4800 4800 83 212.68 213
CXL310/4850 4850 78 214.95 213
CXL310/4900 4900 78 217.15 213
CXL310/4950 4950 78 219.35 213
CXL310/5000 5000 78 221.58 213
CXL310/5050 5050 78 223.74 213
CXL310/5100 5100 78 226.00 213
CXL310/5200 5200 71 230.38 213
CXL310/5250 5250 71 232.60 213
CXL310/5300 5300 71 234.90 213
CXL310/5400 5400 71 239.33 213
CXL310/5450 5450 64 241.55 213
CXL310/5500 5500 64 243.71 213
CXL310/5600 5600 64 248.17 213
CXL310/5700 5700 64 252.62 213
CXL310/5800 5800 56 257.02 213
CXL310/5900 5900 56 261.45 213
CXL310/6000 6000 56 265.86 213
CXL310/6300 6300 52 279.12 213
CXL310/6400 6400 47 283.59 213
CXL310/6500 6500 47 288.00 213
CXL310/6600 6600 47 292.45 213
  • the SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 200mm end bearings.
  • Standard lengths are available in increments of 50mm at lengths up to 6600mm.

Features

Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised
  • Hot Dip Galvanised
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
  • Galvanised steel
