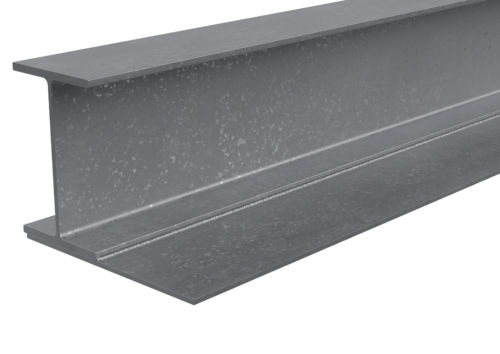

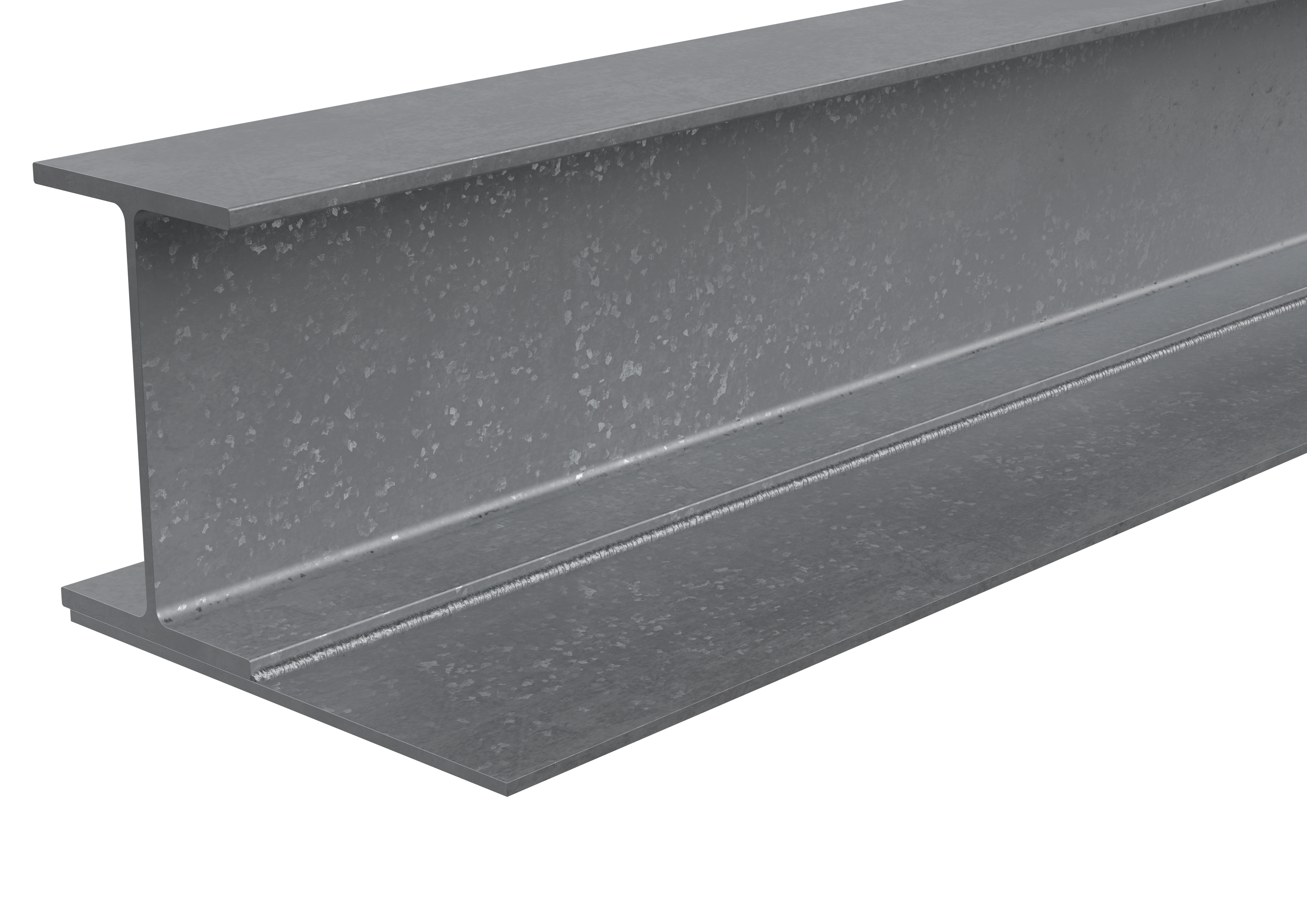

Catnic extreme duty cavity wall lintel for 90mm cavity
Extreme Load Steel Lintel

CXL290

Description
Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
90-105
Inner Leaf
100-115
Wall Width
Loading Conditions
Extreme Load

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 5:1/19:1 Weight (kg) Nominal Height (mm) Price
CXL290/2100 2100 88 91.00 212 Contact sales
CXL290/2150 2150 88 93.00 212 Contact sales
CXL290/2200 2200 88 95.82 212 Contact sales
CXL290/2250 2250 88 98.00 212 Contact sales
CXL290/2300 2300 88 100.17 212 Contact sales
CXL290/2350 2350 88 102.35 212 Contact sales
CXL290/2400 2400 88 104.00 212 Contact sales
CXL290/2450 2450 88 106.65 212 Contact sales
CXL290/2500 2500 88 108.33 212 Contact sales
CXL290/2550 2550 88 111.00 212 Contact sales
CXL290/2600 2600 88 112.66 212 Contact sales
CXL290/2625 2625 88 113.74 212 Contact sales
CXL290/2650 2650 88 114.83 212 Contact sales
CXL290/2700 2700 88 117.00 212 Contact sales
CXL290/2750 2750 88 119.17 212 Contact sales
CXL290/2800 2800 88 121.34 212 Contact sales
CXL290/2850 2850 88 124.00 212 Contact sales
CXL290/2900 2900 88 126.18 212 Contact sales
CXL290/2950 2950 88 127.83 212 Contact sales
CXL290/3000 3000 88 131.00 212 Contact sales
CXL290/3050 3050 83 132.17 212 Contact sales
CXL290/3100 3100 83 134.34 212 Contact sales
CXL290/3150 3150 83 136.51 212 Contact sales
CXL290/3200 3200 83 138.66 212 Contact sales
CXL290/3250 3250 83 140.83 212 Contact sales
CXL290/3300 3300 83 144.00 212 Contact sales
CXL290/3350 3350 83 145.17 212 Contact sales
CXL290/3400 3400 83 147.33 212 Contact sales
CXL290/3450 3450 83 149.50 212 Contact sales
CXL290/3500 3500 83 150.67 212 Contact sales
CXL290/3550 3550 83 154.82 212 Contact sales
CXL290/3600 3600 83 157.00 212 Contact sales
CXL290/3650 3650 83 159.00 212 Contact sales
CXL290/3675 3675 83 159.03 212 Contact sales
CXL290/3700 3700 83 161.37 212 Contact sales
CXL290/3750 3750 83 163.55 212 Contact sales
CXL290/3800 3800 83 165.73 212 Contact sales
CXL290/3850 3850 83 167.75 212 Contact sales
CXL290/3900 3900 83 170.00 212 Contact sales
CXL290/3950 3950 83 171.17 212 Contact sales
CXL290/4000 4000 83 173.33 212 Contact sales
CXL290/4050 4050 83 175.49 212 Contact sales
CXL290/4100 4100 83 179.00 212 Contact sales
CXL290/4150 4150 83 179.83 212 Contact sales
CXL290/4200 4200 83 183.00 212 Contact sales
CXL290/4250 4250 83 184.17 212 Contact sales
CXL290/4300 4300 83 187.36 212 Contact sales
CXL290/4350 4350 83 189.54 212 Contact sales
CXL290/4400 4400 83 190.67 212 Contact sales
CXL290/4450 4450 83 193.58 212 Contact sales
CXL290/4500 4500 83 195.00 212 Contact sales
CXL290/4550 4550 83 197.17 212 Contact sales
CXL290/4575 4575 83 199.00 212 Contact sales
CXL290/4600 4600 83 200.29 212 Contact sales
CXL290/4650 4650 83 202.36 212 Contact sales
CXL290/4700 4700 83 204.65 212 Contact sales
CXL290/4750 4750 83 206.60 212 Contact sales
CXL290/4800 4800 83 209.00 212 Contact sales
CXL290/4850 4850 78 211.18 212 Contact sales
CXL290/4900 4900 78 213.30 212 Contact sales
CXL290/4950 4950 78 215.50 212 Contact sales
CXL290/5000 5000 78 216.60 212 Contact sales
CXL290/5050 5050 78 218.77 212 Contact sales
CXL290/5100 5100 78 222.00 212 Contact sales
CXL290/5150 5150 71 224.18 212 Contact sales
CXL290/5200 5200 71 226.00 212 Contact sales
CXL290/5250 5250 71 228.53 212 Contact sales
CXL290/5275 5275 71 229.26 212 Contact sales
CXL290/5300 5300 71 230.65 212 Contact sales
CXL290/5350 5350 71 232.73 212 Contact sales
CXL290/5400 5400 71 235.00 212 Contact sales
CXL290/5450 5450 64 236.17 212 Contact sales
CXL290/5500 5500 64 239.47 212 Contact sales
CXL290/5550 5550 64 241.00 212 Contact sales
CXL290/5600 5600 64 242.67 212 Contact sales
CXL290/5650 5650 64 245.95 212 Contact sales
CXL290/5700 5700 64 248.00 212 Contact sales
CXL290/5750 5750 56 250.30 212 Contact sales
CXL290/5800 5800 56 253.00 212 Contact sales
CXL290/5850 5850 56 254.58 212 Contact sales
CXL290/5900 5900 56 255.67 212 Contact sales
CXL290/6000 6000 56 261.00 212 Contact sales
CXL290/6050 6050 52 262.09 212 Contact sales
CXL290/6100 6100 52 264.33 212 Contact sales
CXL290/6150 6150 52 268.55 212 Contact sales
CXL290/6200 6200 52 268.67 212 Contact sales
CXL290/6250 6250 52 270.83 212 Contact sales
CXL290/6300 6300 52 274.00 212 Contact sales
CXL290/6400 6400 47 277.34 212 Contact sales
CXL290/6450 6450 47 280.48 212 Contact sales
CXL290/6500 6500 47 281.58 212 Contact sales
CXL290/6600 6600 47 287.00 212 Contact sales
  • the SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 200mm end bearings.
  • Standard lengths are available in increments of 50mm at lengths up to 6600mm.
