Extreme Load Steel Lintel

CXL265

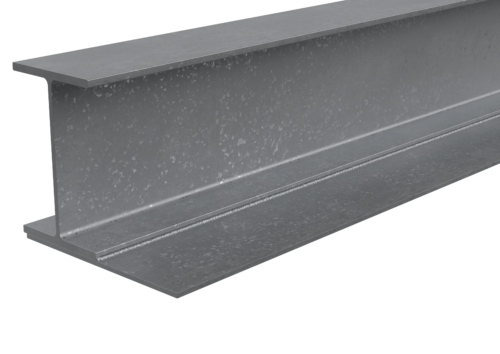

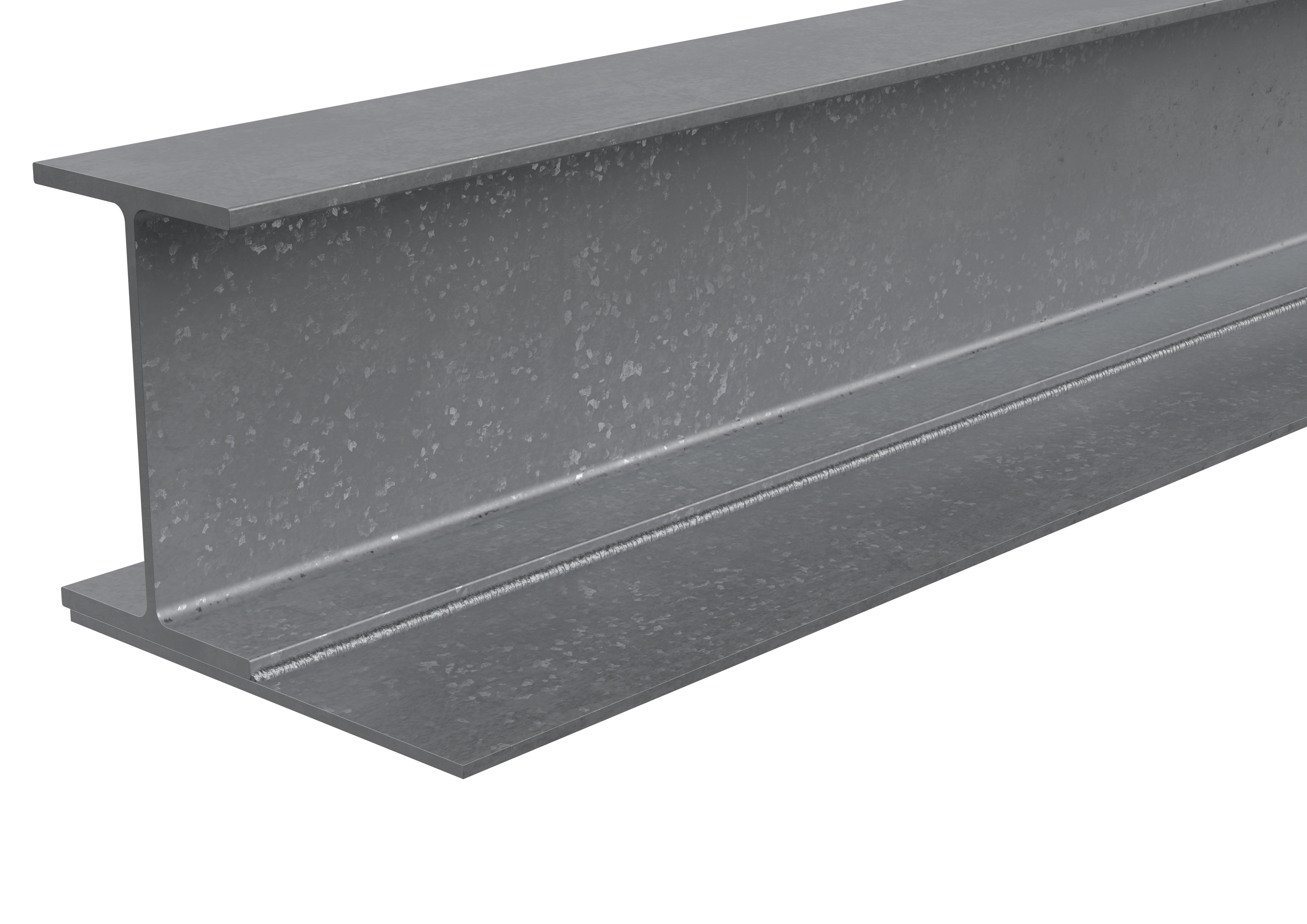

Catnic extreme duty cavity wall lintel for 70mm cavity

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
70-85
Inner Leaf
100-115
Wall Width
Loading Conditions
Extreme Load

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 5:1/19:1 Weight (kg) Nominal Height (mm)
CXL265/2100 2100 88 89.00 212
CXL265/2200 2200 88 93.30 212
CXL265/2250 2250 88 95.00 212
CXL265/2300 2300 88 97.50 212
CXL265/2400 2400 88 102.00 212
CXL265/2500 2500 88 105.95 212
CXL265/2550 2550 88 108.00 212
CXL265/2650 2650 88 111.89 212
CXL265/2700 2700 88 114.00 212
CXL265/2750 2750 88 116.75 212
CXL265/2800 2800 88 118.87 212
CXL265/2850 2850 88 121.00 212
CXL265/2900 2900 88 122.92 212
CXL265/3000 3000 88 127.00 212
CXL265/3050 3050 83 129.40 212
CXL265/3100 3100 83 131.49 212
CXL265/3200 3200 83 135.61 212
CXL265/3250 3250 83 137.87 212
CXL265/3300 3300 83 140.00 212
CXL265/3350 3350 83 142.11 212
CXL265/3400 3400 83 144.22 212
CXL265/3450 3450 83 146.33 212
CXL265/3500 3500 83 148.47 212
CXL265/3600 3600 83 152.00 212
CXL265/3700 3700 83 156.94 212
CXL265/3800 3800 83 161.18 212
CXL265/3900 3900 83 165.00 212
CXL265/4000 4000 83 169.20 212
CXL265/4050 4050 83 171.35 212
CXL265/4200 4200 83 178.00 212
CXL265/4250 4250 83 180.27 212
CXL265/4300 4300 83 182.24 212
CXL265/4400 4400 83 186.65 212
CXL265/4500 4500 83 190.71 212
CXL265/4575 4575 83 194.00 212
CXL265/4800 4800 83 203.00 212
CXL265/4850 4850 78 205.00 212
CXL265/5000 5000 78 211.76 212
CXL265/5100 5100 78 216.00 212
CXL265/5150 5150 71 218.12 212
CXL265/5200 5200 71 220.50 212
CXL265/5250 5250 71 222.62 212
CXL265/5400 5400 71 228.00 212
CXL265/5600 5600 64 237.50 212
CXL265/5700 5700 64 241.00 212
CXL265/5900 5900 56 250.28 212
CXL265/6000 6000 56 254.00 212
CXL265/6100 6100 52 258.74 212
CXL265/6200 6200 52 262.09 212
CXL265/6300 6300 52 266.00 212
CXL265/6400 6400 47 271.28 212
CXL265/6600 6600 47 279.00 212
  • the SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 200mm end bearings.
  • Standard lengths are available in increments of 50mm at lengths up to 6600mm.

Features

Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised
  • Hot Dip Galvanised
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
  • Galvanised steel
