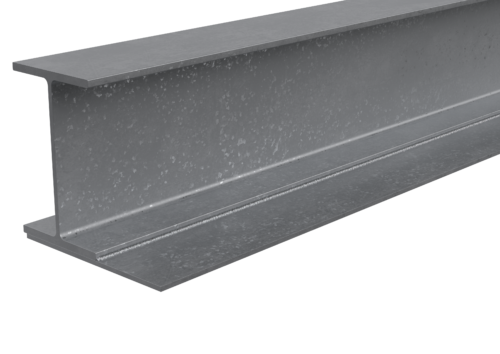

Extreme Load Steel Lintel

CXL240

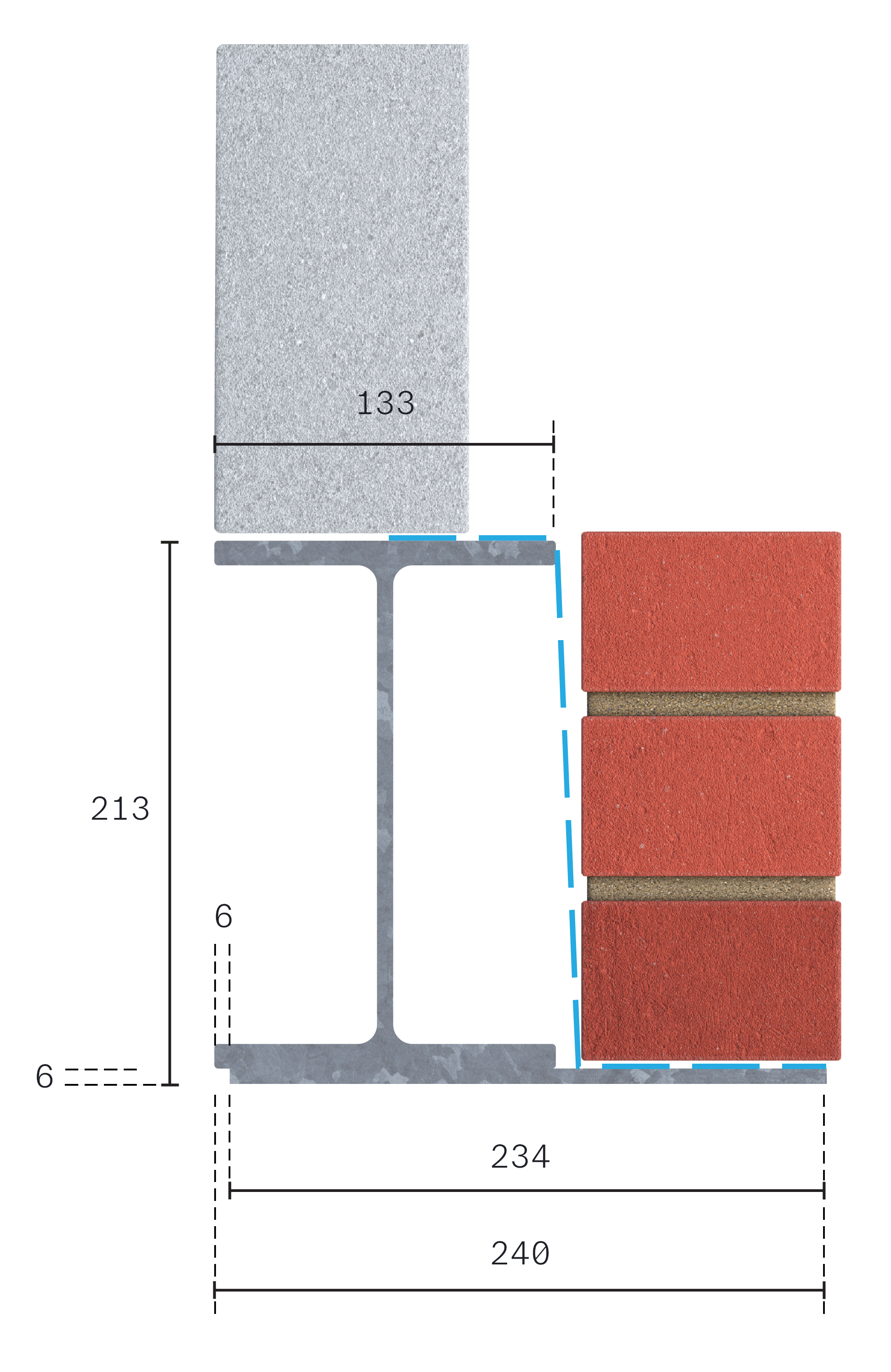

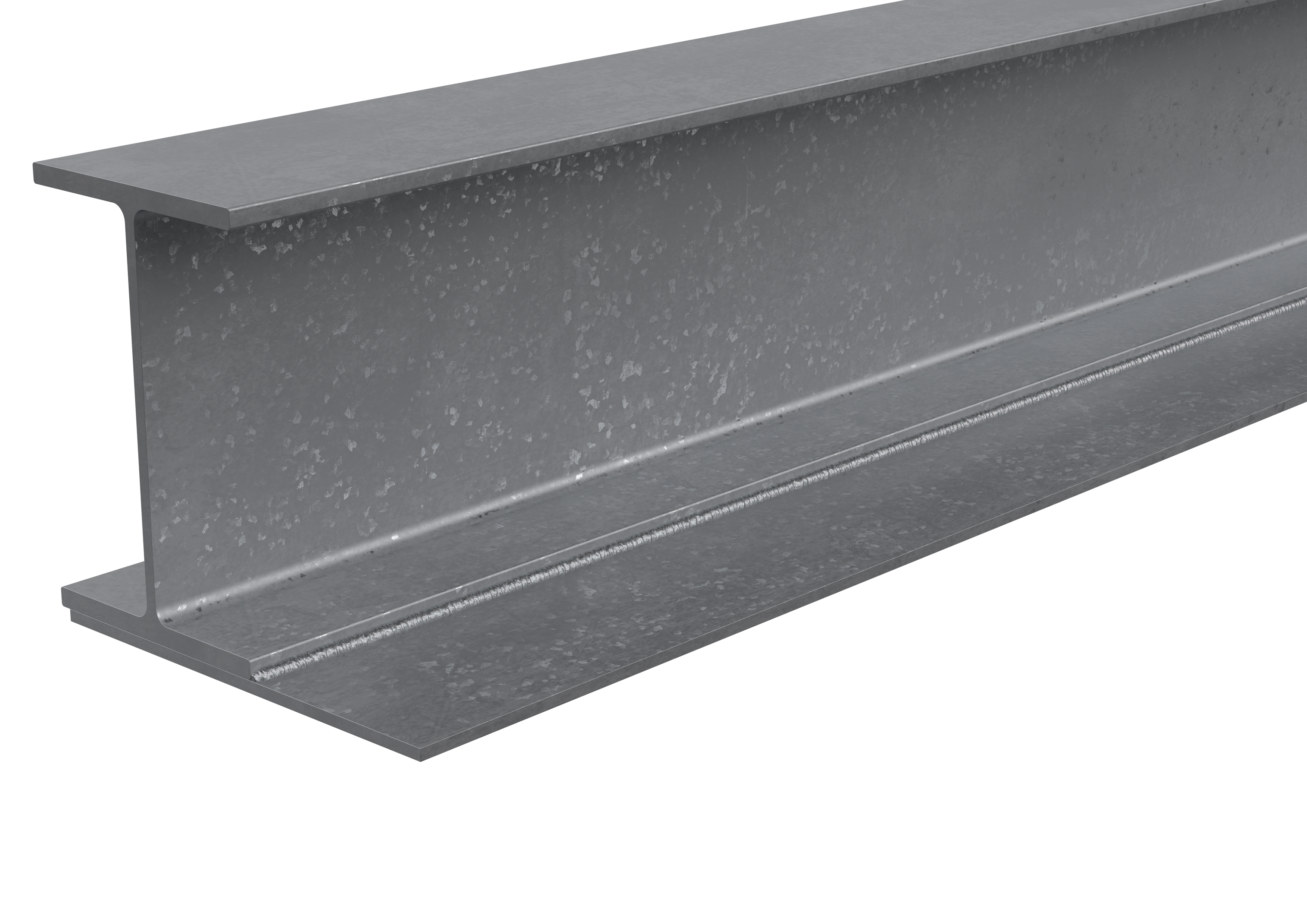

Catnic extreme duty cavity wall lintel for 50mm cavity

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
50-65
Inner Leaf
100-115
Wall Width
Loading Conditions
Extreme Load

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 5:1/19:1 Weight (kg) Nominal Height (mm)
CXL240/2100 2100 88 86.00 212
CXL240/2200 2200 88 90.10 212
CXL240/2250 2250 88 92.00 212
CXL240/2300 2300 88 94.89 212
CXL240/2400 2400 88 99.00 212
CXL240/2450 2450 88 101.08 212
CXL240/2500 2500 88 103.13 212
CXL240/2550 2550 88 105.00 212
CXL240/2600 2600 88 106.60 212
CXL240/2650 2650 88 109.31 212
CXL240/2700 2700 88 111.00 212
CXL240/2800 2800 88 115.51 212
CXL240/2850 2850 88 117.00 212
CXL240/2900 2900 88 119.64 212
CXL240/3000 3000 88 123.00 212
CXL240/3050 3050 83 125.70 212
CXL240/3100 3100 83 127.88 212
CXL240/3150 3150 83 129.93 212
CXL240/3200 3200 83 132.00 212
CXL240/3300 3300 83 136.00 212
CXL240/3400 3400 83 140.25 212
CXL240/3450 3450 83 142.31 212
CXL240/3500 3500 83 144.36 212
CXL240/3600 3600 83 148.00 212
CXL240/3700 3700 83 153.00 212
CXL240/3750 3750 83 154.69 212
CXL240/3800 3800 83 156.75 212
CXL240/3850 3850 83 158.81 212
CXL240/3900 3900 83 160.00 212
CXL240/4000 4000 83 164.00 212
CXL240/4100 4100 83 168.10 212
CXL240/4150 4150 83 170.15 212
CXL240/4200 4200 83 173.00 212
CXL240/4250 4250 83 174.71 212
CXL240/4300 4300 83 177.12 212
CXL240/4400 4400 83 181.23 212
CXL240/4450 4450 83 182.57 212
CXL240/4500 4500 83 185.61 212
CXL240/4575 4575 83 188.00 212
CXL240/4600 4600 83 189.75 212
CXL240/4650 4650 83 191.81 212
CXL240/4700 4700 83 112.00 212
CXL240/4750 4750 83 195.94 212
CXL240/4800 4800 83 197.00 212
CXL240/4900 4900 78 202.16 212
CXL240/5000 5000 78 206.25 212
CXL240/5050 5050 78 207.52 212
CXL240/5100 5100 78 210.00 212
CXL240/5150 5150 71 212.44 212
CXL240/5200 5200 71 214.12 212
CXL240/5300 5300 71 218.24 212
CXL240/5350 5350 71 220.67 212
CXL240/5400 5400 71 222.00 212
CXL240/5500 5500 64 226.12 212
CXL240/5600 5600 64 229.60 212
CXL240/5700 5700 64 234.00 212
CXL240/5750 5750 56 237.21 212
CXL240/5800 5800 56 238.38 212
CXL240/5900 5900 56 243.39 212
CXL240/6000 6000 56 247.00 212
CXL240/6100 6100 52 251.66 212
CXL240/6200 6200 52 255.78 212
CXL240/6300 6300 52 259.00 212
CXL240/6400 6400 47 264.00 212
CXL240/6600 6600 47 271.00 212
  • the SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 200mm end bearings.
  • Standard lengths are available in increments of 50mm at lengths up to 6600mm.

Features

Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised
  • Hot Dip Galvanised
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
  • Galvanised steel
