Extra Heavy Duty Steel Lintel

CX90/100

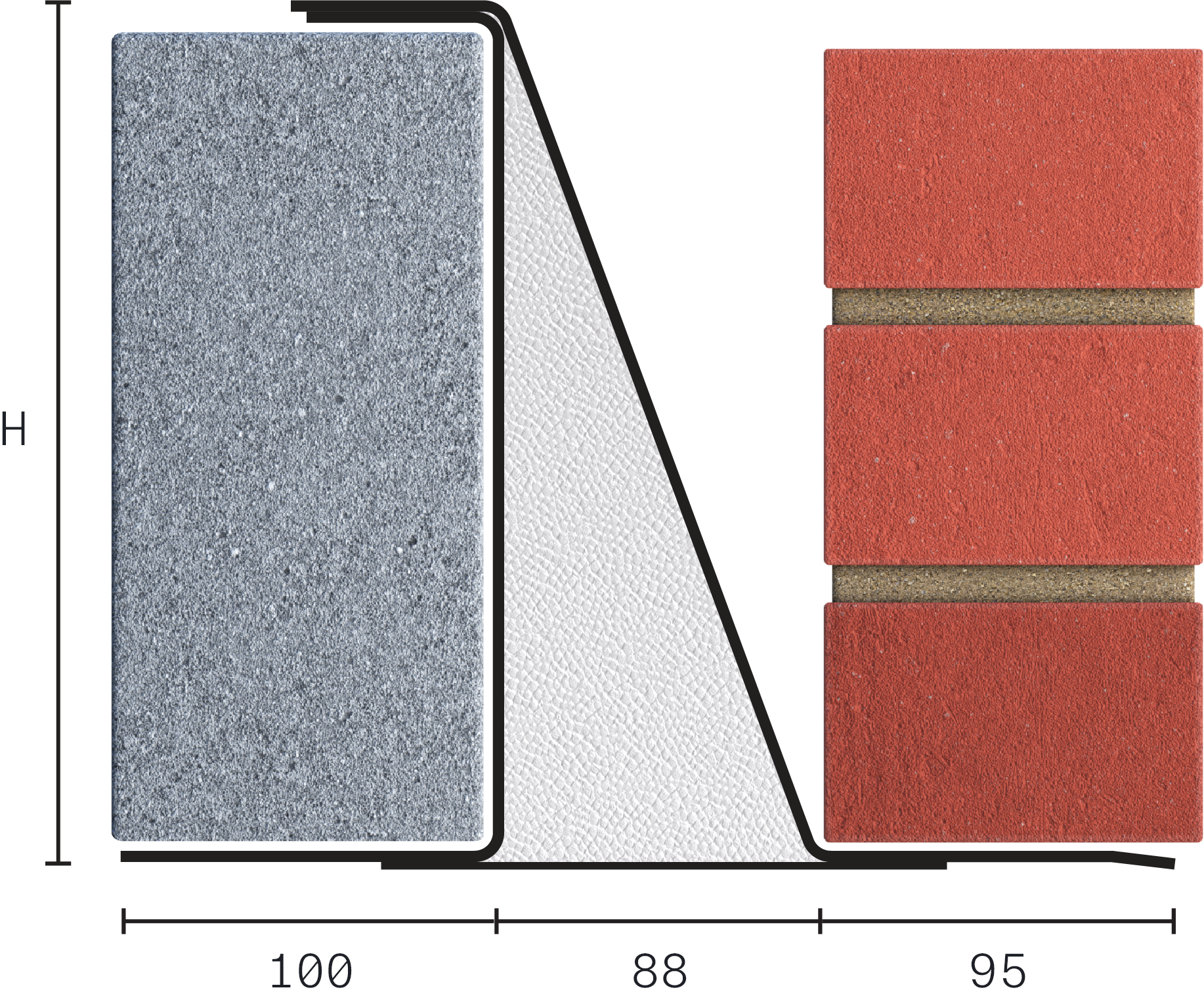

catnic steel lintel heavy duty or extra heavy duty profile shape

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
90-105
Inner Leaf
100-115
Wall Width
Loading Conditions
Extra Heavy

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/19:1 Weight (kg) Nominal Height (mm)
CX90/1000900 900 60 15.24 232
CX90/1001050 1050 60 17.78 232
CX90/1001200 1200 60 20.32 232 Buy Now
CX90/1001350 1350 60 22.86 232
CX90/1001500 1500 60 25.40 232 Buy Now
CX90/1001650 1650 60 27.93 232
CX90/1001800 1800 60 30.47 232 Buy Now
CX90/1001950 1950 60 33.01 232
CX90/1002100 2100 60 35.55 232 Buy Now
CX90/1002250 2250 60 38.09 232
CX90/1002400 2400 60 40.63 232 Buy Now
CX90/1002550 2550 60 43.17 232
CX90/1002700 2700 60 45.71 232 Buy Now
CX90/1002850 2850 55 48.25 232 Buy Now
CX90/1003000 3000 55 50.79 232 Buy Now
CX90/1003300 3300 50 67.58 232 Buy Now
CX90/1003600 3600 50 73.62 232 Buy Now
CX90/1003900 3900 50 79.76 232 Buy Now
CX90/1004200 4200 32 85.89 232 Buy Now
CX90/1004575 4575 32 93.70 232 Buy Now
CX90/1004800 4800 32 98.30 232 Buy Now
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
  • When using the Catnic CH and CX Open Back ranges with concrete floors, always ensure that the blockwork is built tight against the inner vertical face, and that a mortar joint is added to the top of the blockwork so that the floor units have an even spread over the inner flange of the lintel.

Features

Steel lintel for use in extra heavy duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Built-In DPC
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

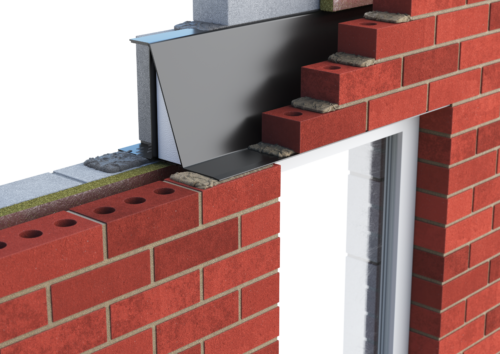

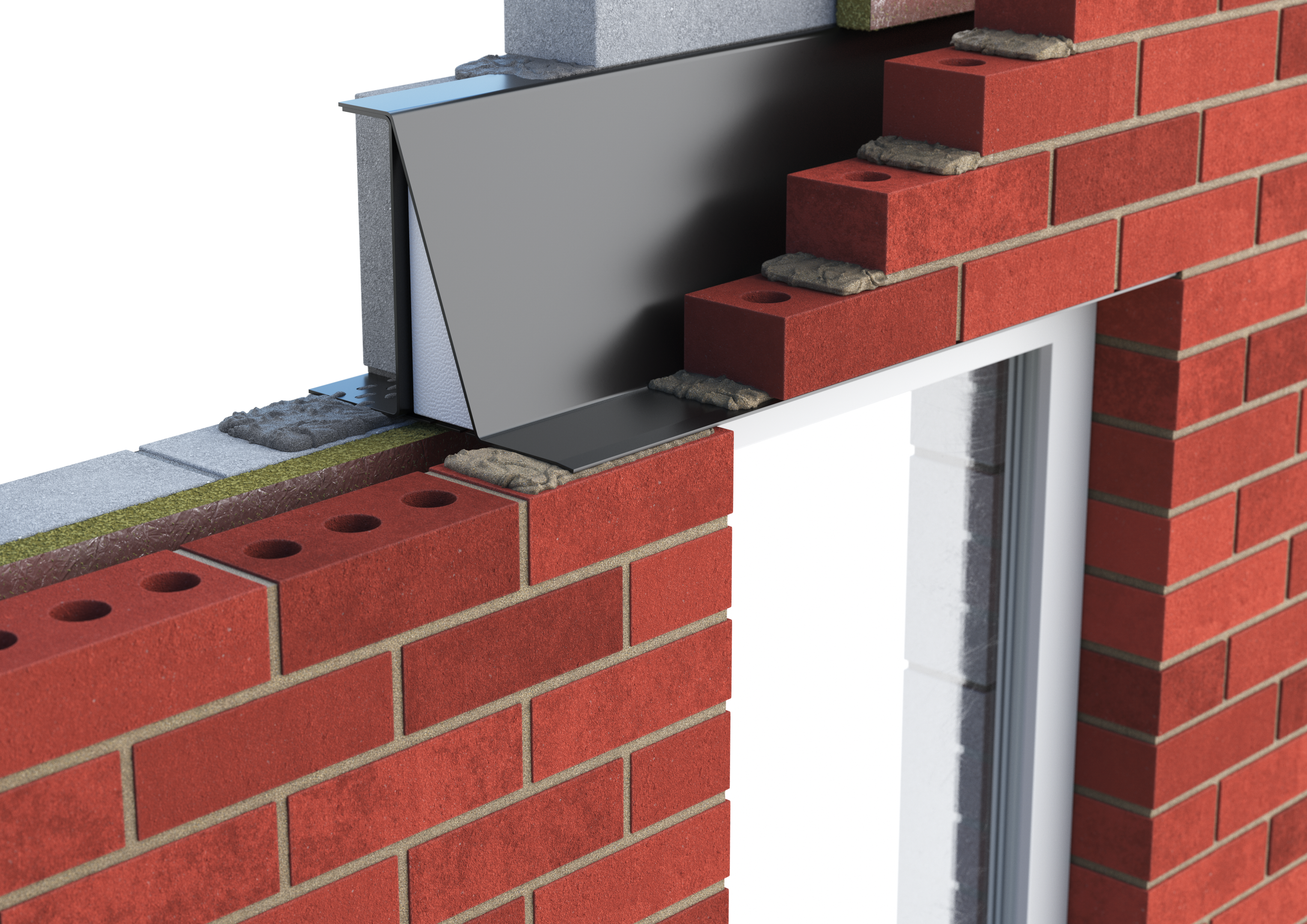

Catnic extra heavy duty cavity wall lintel for 90-105 cavity wall shown in situ
  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
