Product Information

Wall Construction
Cavity Wall
Outer Leaf
Inner Leaf
Wall Width
Loading Conditions
Extra Heavy


Product Code Standard Length (mm) SWL (kN) 1:1/19:1 Weight (kg) Nominal Height (mm)
CX70/1000900 900 60 14.72 232
CX70/1001050 1050 60 17.18 232
CX70/1001200 1200 60 19.63 232
CX70/1001350 1350 60 22.09 232
CX70/1001500 1500 60 24.54 232
CX70/1001650 1650 60 26.99 232
CX70/1001800 1800 60 29.45 232
CX70/1001950 1950 60 31.90 232
CX70/1002100 2100 60 34.36 232
CX70/1002250 2250 60 36.81 232
CX70/1002400 2400 60 39.26 232
CX70/1002550 2550 60 41.72 232
CX70/1002700 2700 60 44.17 232
CX70/1002850 2850 55 46.63 232
CX70/1003000 3000 55 49.08 232
CX70/1003300 3300 50 65.51 232
CX70/1003600 3600 50 71.46 232
CX70/1003900 3900 50 77.42 232
CX70/1004200 4200 32 83.37 232
CX70/1004575 4575 32 90.81 232
CX70/1004800 4800 32 95.28 232
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
  • When using the Catnic CH and CX Open Back ranges with concrete floors, always ensure that the blockwork is built tight against the inner vertical face, and that a mortar joint is added to the top of the blockwork so that the floor units have an even spread over the inner flange of the lintel.


Steel lintel for use in extra heavy duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Built-In DPC
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

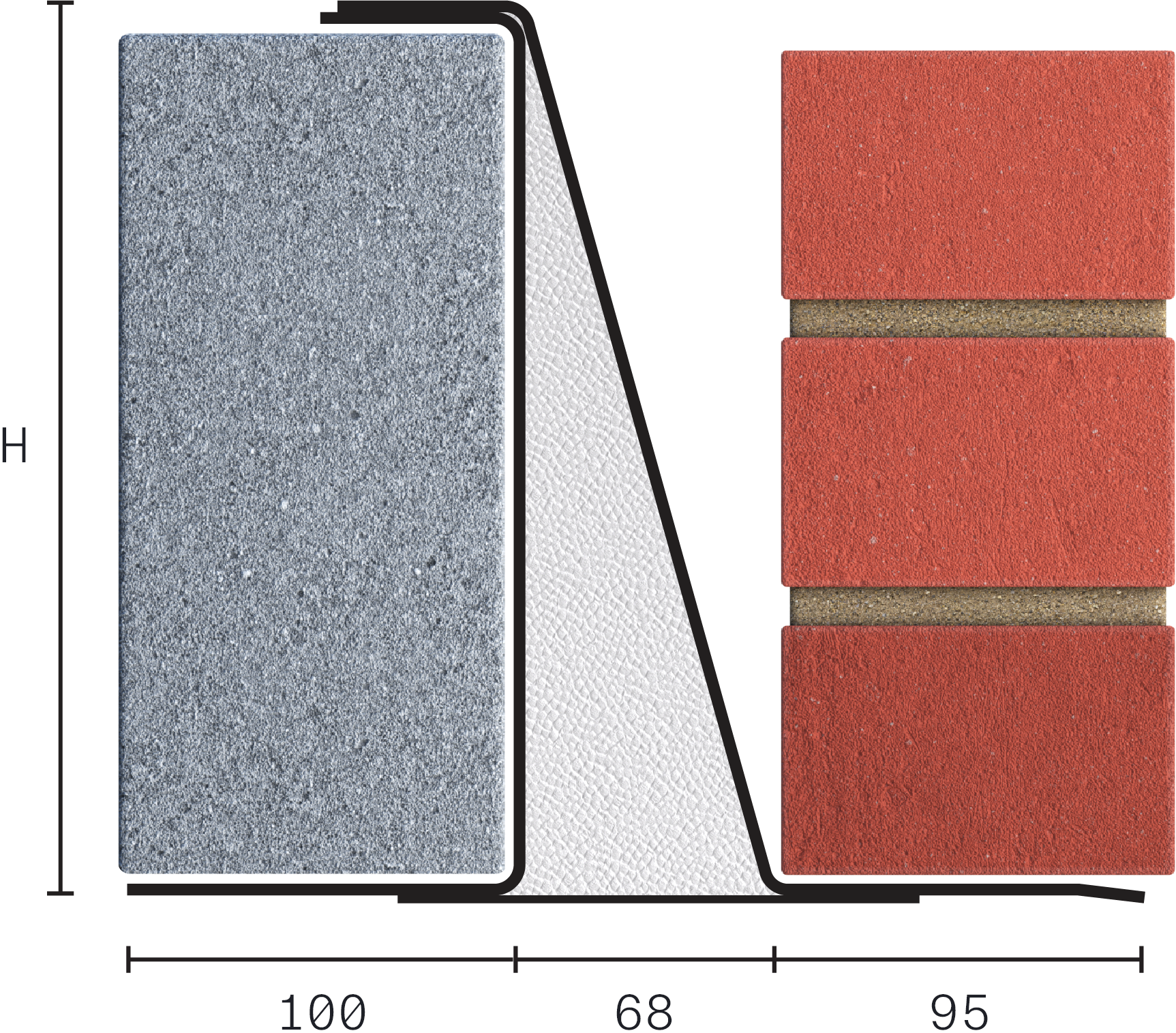

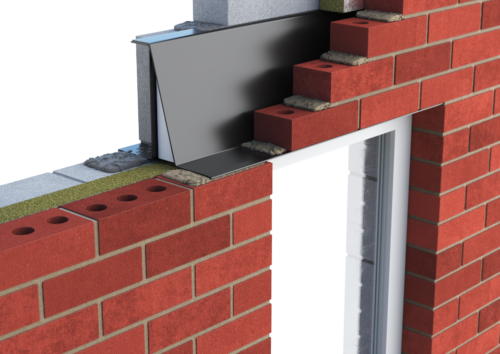

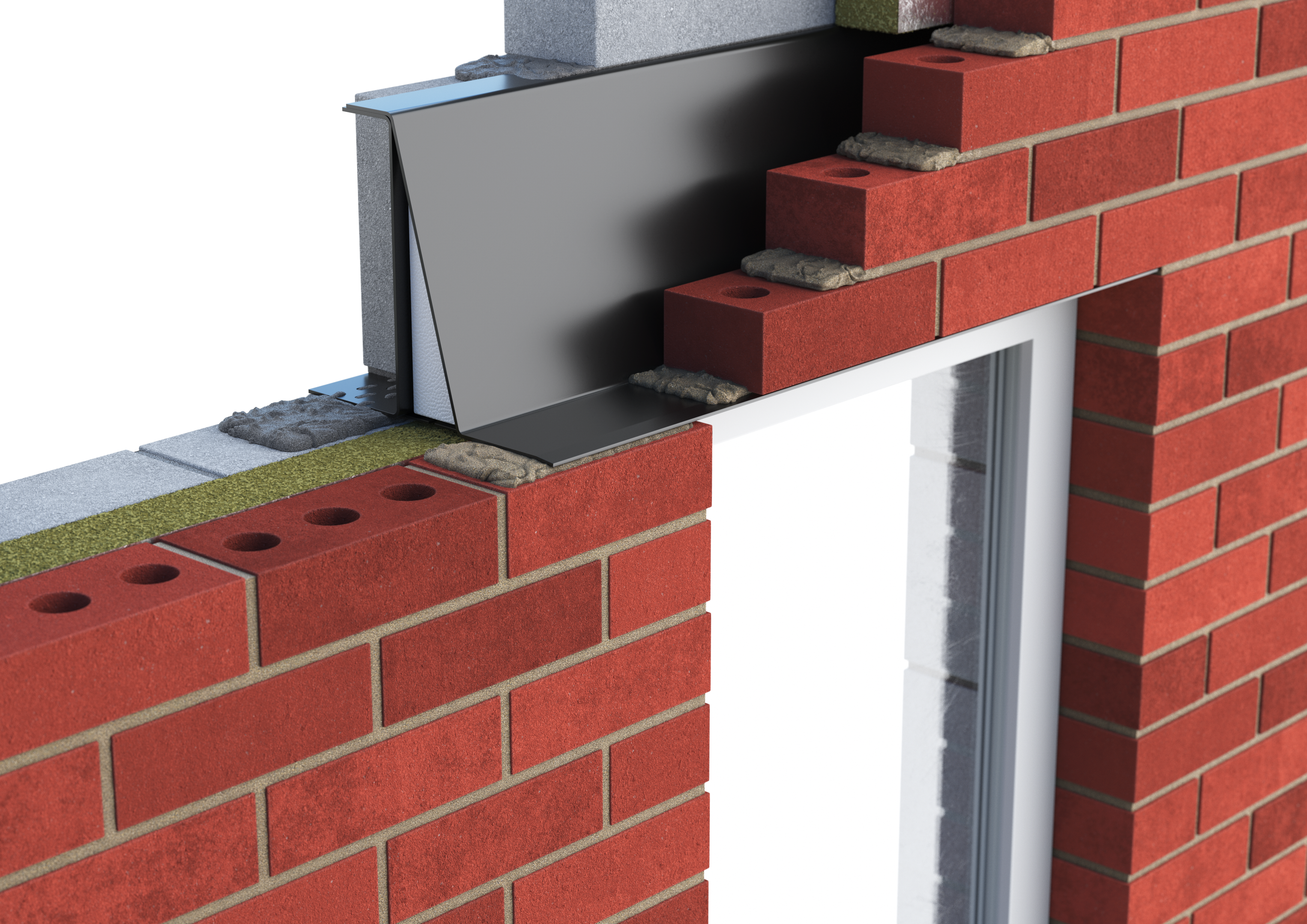

Catnic extra heavy duty cavity wall lintel for 70-85 cavity wall shown in situ
  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
