Extra Heavy Duty Steel Lintel

CX130/125

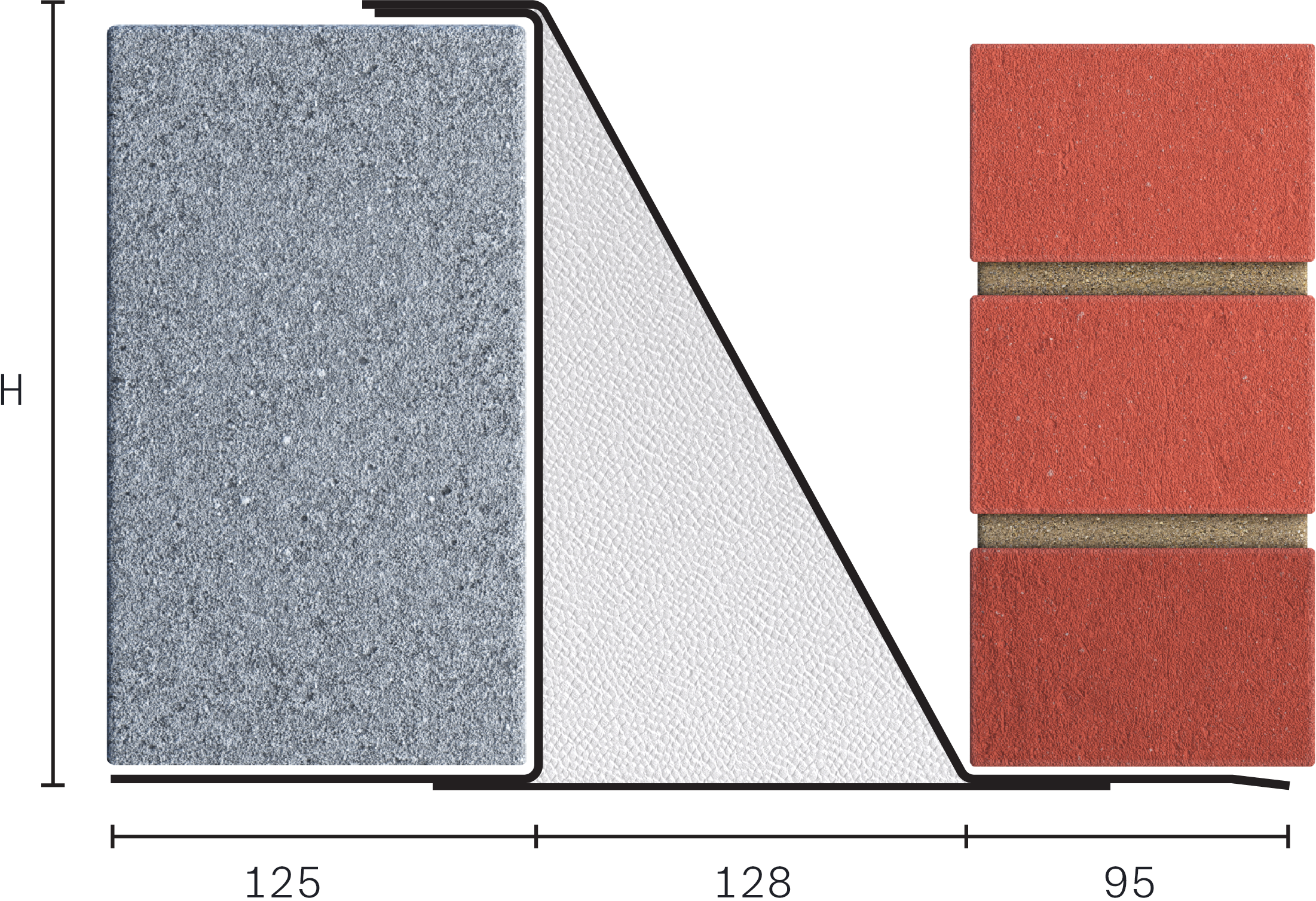

catnic steel lintel heavy duty or extra heavy duty profile shape

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
130-145
Inner Leaf
125-140
Wall Width
Loading Conditions
Extra Heavy

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/19:1 Weight (kg) Nominal Height (mm)
CX130/1250900 900 60 16.30 232
CX130/1251050 1050 60 19.02 232
CX130/1251200 1200 60 21.70 232
CX130/1251350 1350 60 24.45 232
CX130/1251500 1500 60 27.27 232
CX130/1251650 1650 60 29.88 232
CX130/1251800 1800 60 32.60 232
CX130/1251950 1950 60 35.31 232
CX130/1252100 2100 60 38.00 232
CX130/1252250 2250 60 40.75 232
CX130/1252400 2400 60 43.50 232
CX130/1252550 2550 60 46.18 232
CX130/1252700 2700 60 48.90 232
CX130/1252850 2850 55 51.61 232
CX130/1253000 3000 55 54.33 232
CX130/1253300 3300 50 71.90 232
CX130/1253600 3600 50 78.48 232
CX130/1253900 3900 50 85.02 232
CX130/1254200 4200 32 91.56 232
CX130/1254575 4575 32 99.74 232
CX130/1254800 4800 32 104.64 232
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
  • When using the Catnic CH and CX Open Back ranges with concrete floors, always ensure that the blockwork is built tight against the inner vertical face, and that a mortar joint is added to the top of the blockwork so that the floor units have an even spread over the inner flange of the lintel.

Features

Steel lintel for use in extra heavy duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Built-In DPC
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

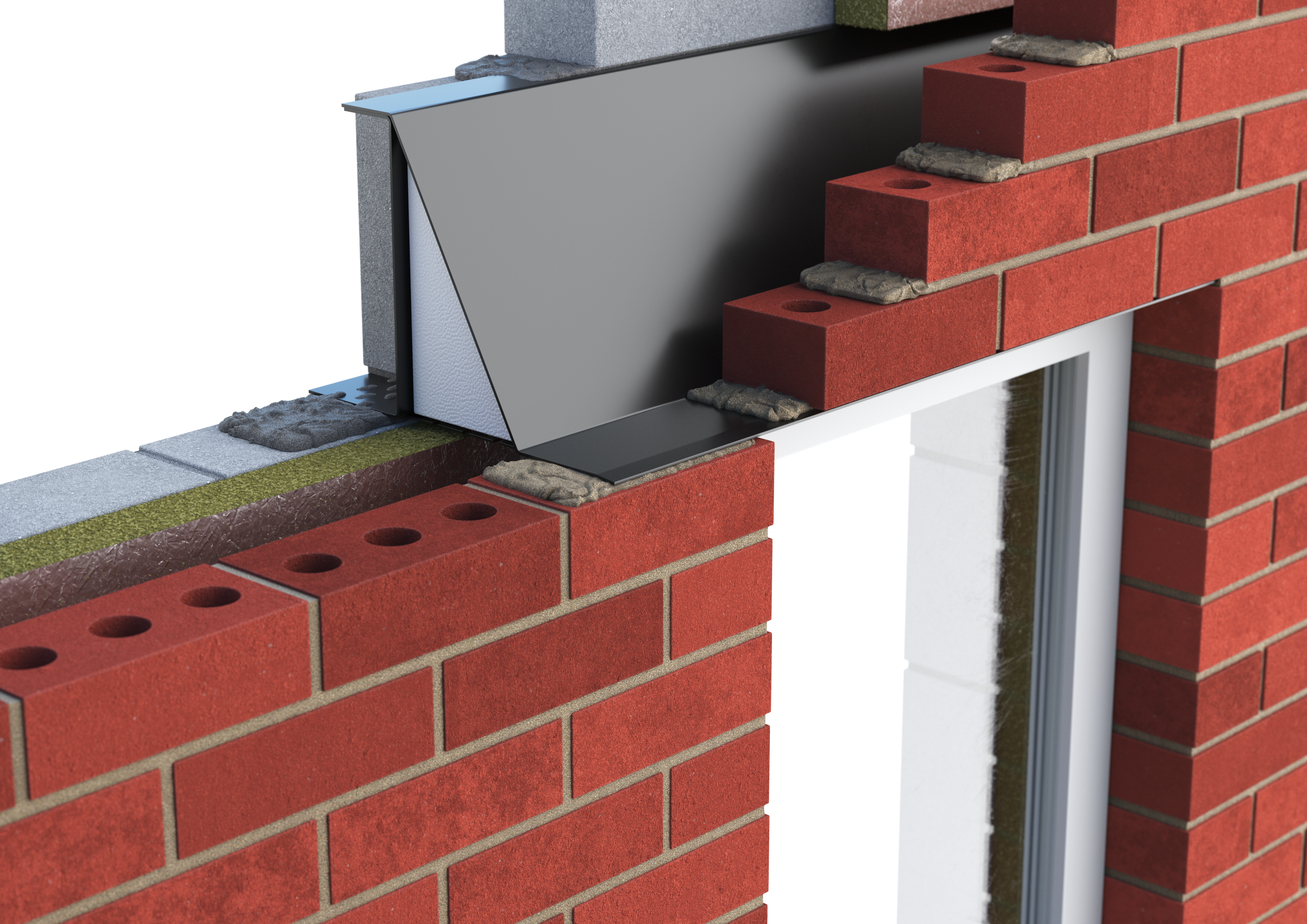

Catnic extra heavy duty cavity wall lintel for 130-145 cavity wall shown in situ
  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
