Standard Duty Steel Lintel

CTF9

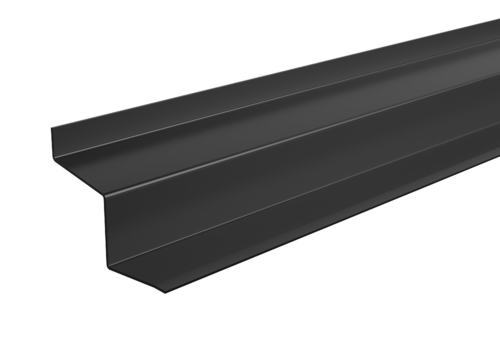

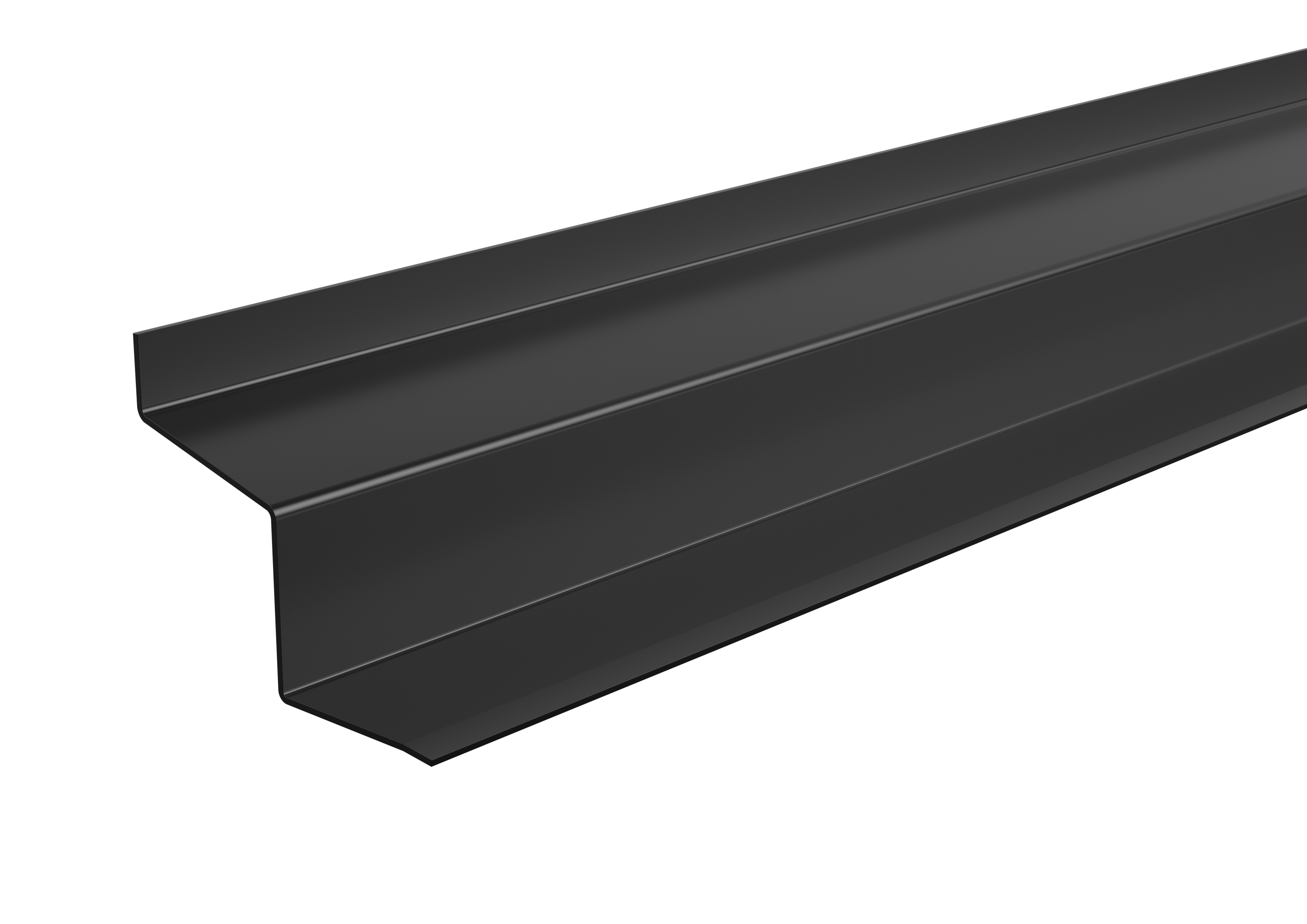

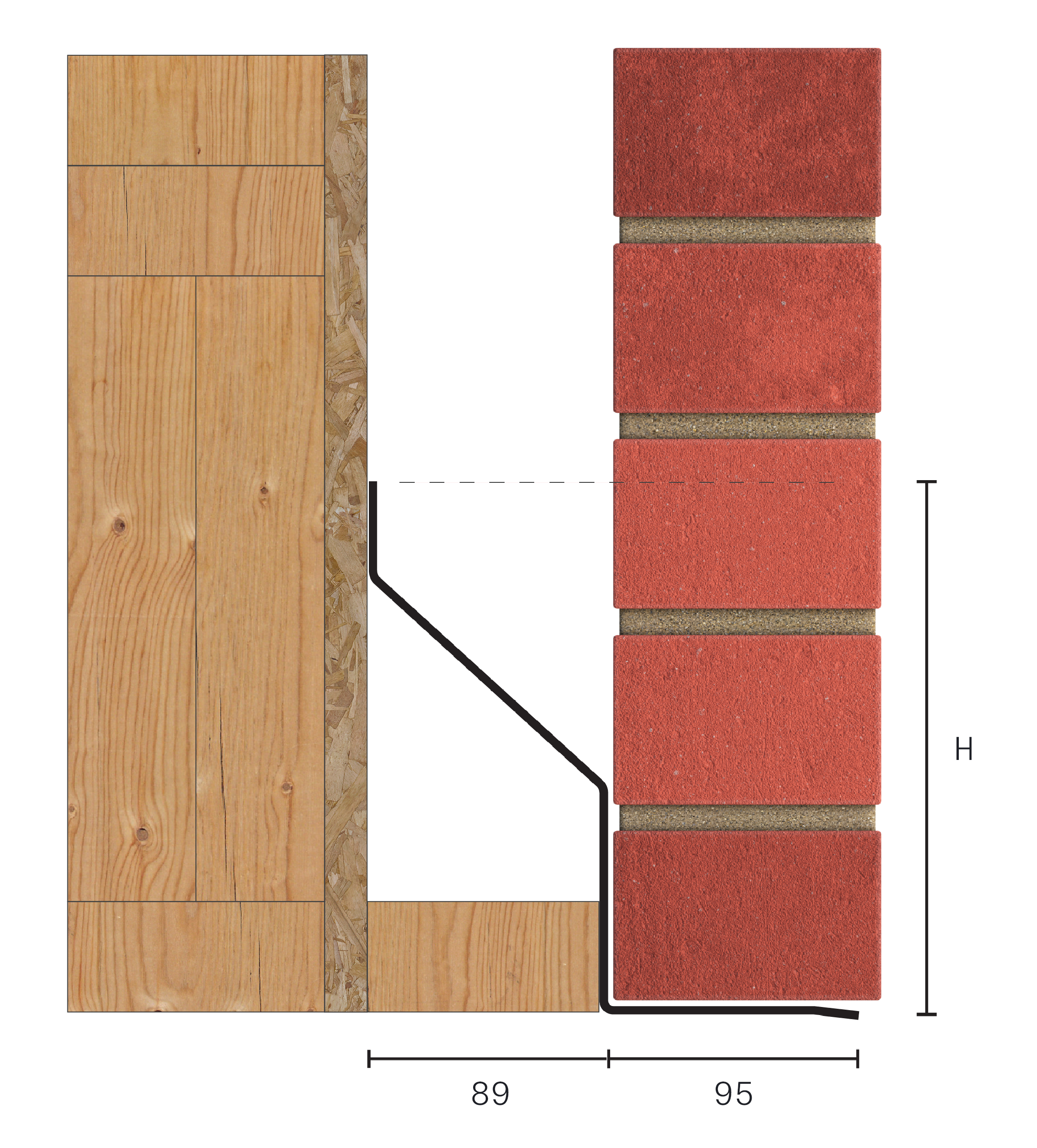

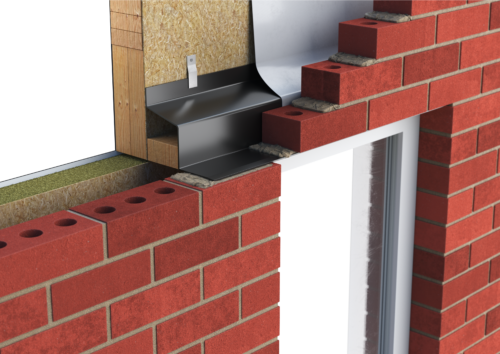

CATNIC CTF9 LINTEL for timber frame construction

Overview

Product Information

Wall Construction
Timber Frame
Outer Leaf
100-102
Cavity
90-105
Inner Leaf
N/A
Wall Width
Loading Conditions
Standard

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
CTF90750 750 5 2.83 146
CTF90900 900 5 3.39 146
CTF91050 1050 5 3.96 146
CTF91200 1200 5 4.52 146
CTF91350 1350 5 5.09 146
CTF91500 1500 5 5.66 146
CTF91650 1650 7 7.77 146
CTF91800 1800 7 8.48 146
CTF91950 1950 7 10.14 201
CTF92100 2100 7 10.92 201
CTF92250 2250 7 11.70 201
CTF92400 2400 7 12.48 201
CTF92550 2550 9 19.76 271
CTF92700 2700 9 20.93 271
CTF92850 2850 9 22.09 271
CTF93000 3000 9 23.25 271
CTF93300 3300 9 25.58 271
CTF93600 3600 9 27.90 271
CTF93900 3900 10 37.48 271
CTF94200 4200 10 40.36 271
CTF94575 4575 10 43.97 271
CTF94800 4800 10 46.13 271
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
  • CTF lintels should be suitably propped and secured with provided restraint clips and timber batten (not provided) during construction.

Features

Steel lintel for use in timber frame construction, consists of single element lintel, allows vertical differential movement of timber frame. Built in DPC thanks to Catnic's signature black powder coating
  • Duplex Corrosion Protection
  • Built-In DPC
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

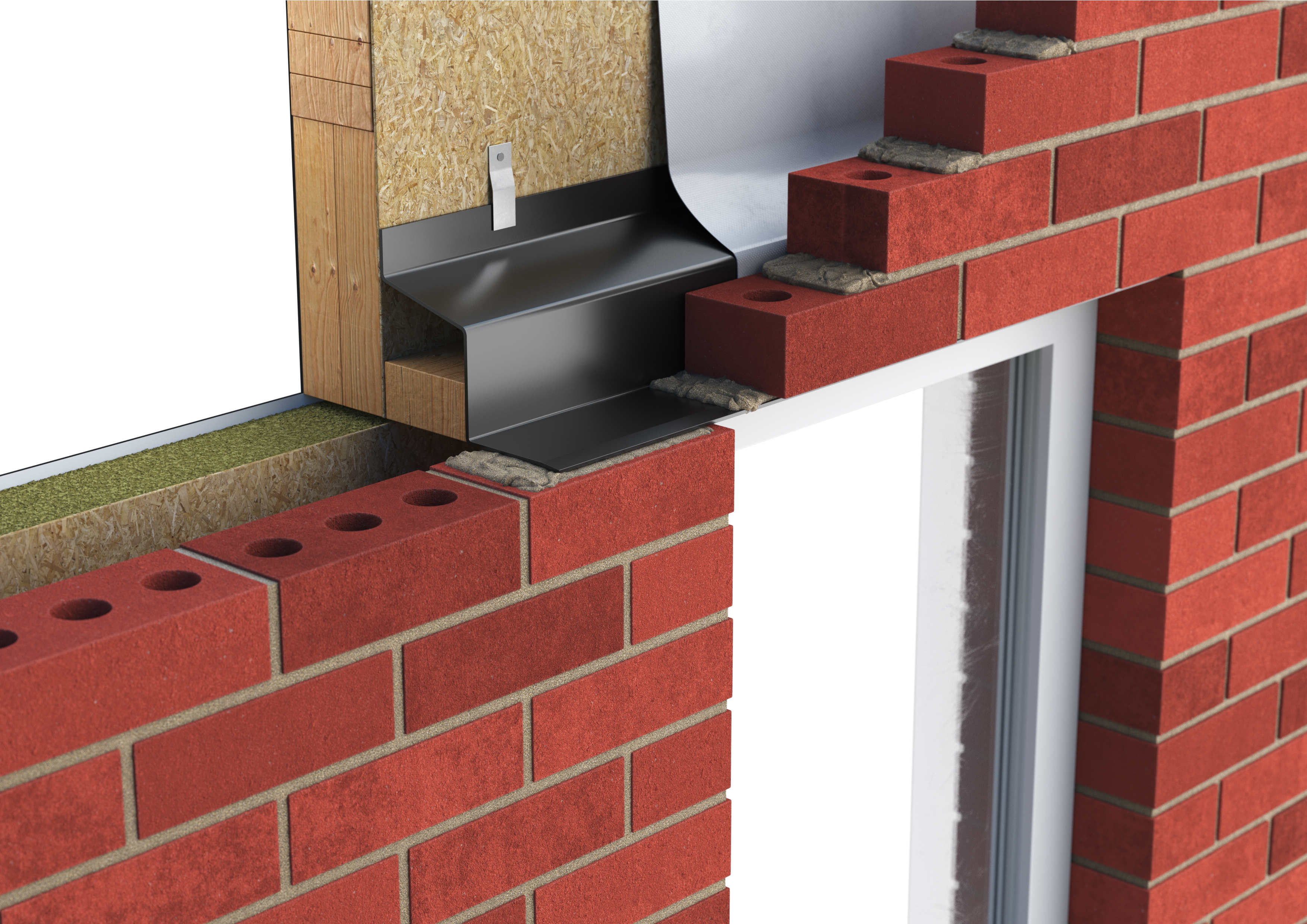

Catnic standard duty timber frame lintel for 90-105mm cavity wall shown in situ
  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.
