Standard Duty Steel Lintel

CTF7

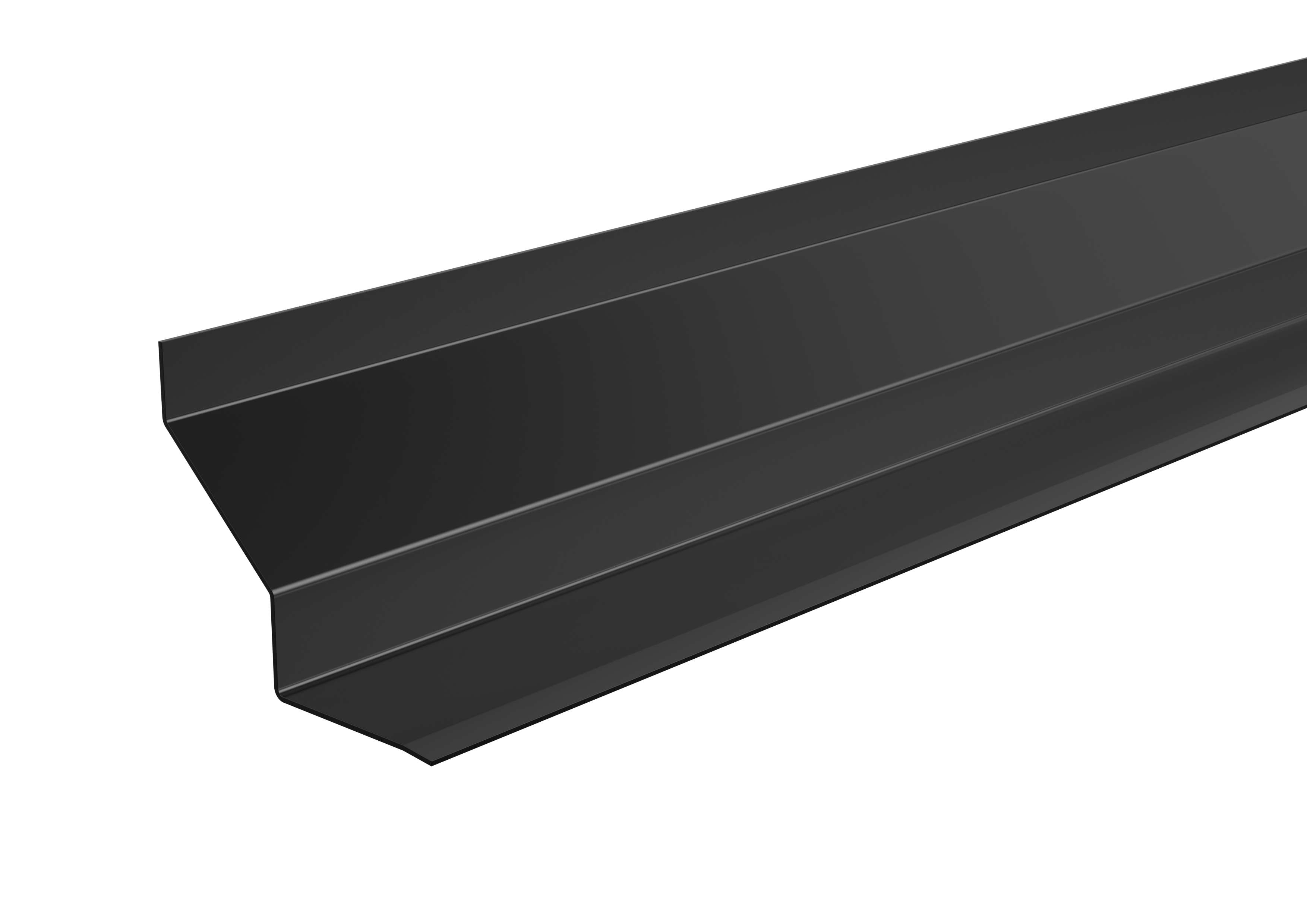

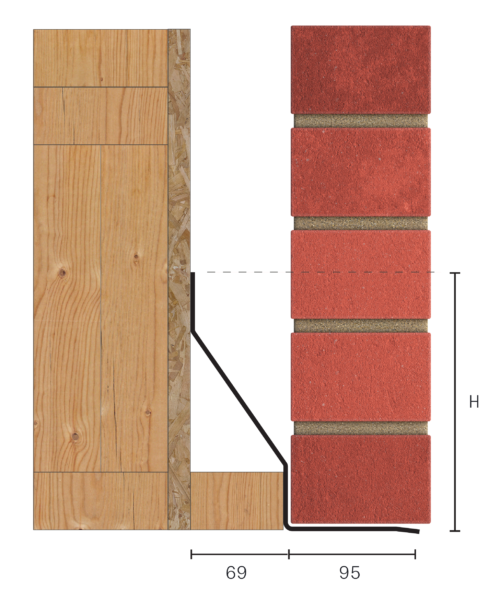

CATNIC CTF7 LINTEL for timber frame construction

Overview

Product Information

Wall Construction
Timber Frame
Outer Leaf
100-102
Cavity
70-85
Inner Leaf
N/A
Wall Width
Loading Conditions
Standard

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
CTF70750 750 5 2.51 145
CTF70900 900 5 3.02 145
CTF71050 1050 5 3.52 145
CTF71200 1200 5 4.02 145
CTF71350 1350 5 4.52 145
CTF71500 1500 5 5.03 145
CTF71650 1650 7 4.02 145
CTF71800 1800 7 7.54 145
CTF71950 1950 7 9.18 187
CTF72100 2100 7 9.89 187
CTF72250 2250 7 10.60 187
CTF72400 2400 7 11.30 187
CTF72550 2550 9 18.67 261
CTF72700 2700 9 19.76 261
CTF72850 2850 9 20.86 261
CTF73000 3000 9 21.96 261
CTF73300 3300 9 24.16 261
CTF73600 3600 9 26.35 261
CTF73900 3900 10 35.41 261
CTF74200 4200 10 38.14 261
CTF74575 4575 10 41.54 261
CTF74800 4800 10 43.58 261
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
  • CTF lintels should be suitably propped and secured with provided restraint clips and timber batten (not provided) during construction.

Features

Steel lintel for use in timber frame construction, consists of single element lintel, allows vertical differential movement of timber frame. Built in DPC thanks to Catnic's signature black powder coating
  • Duplex Corrosion Protection
  • Built-In DPC
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

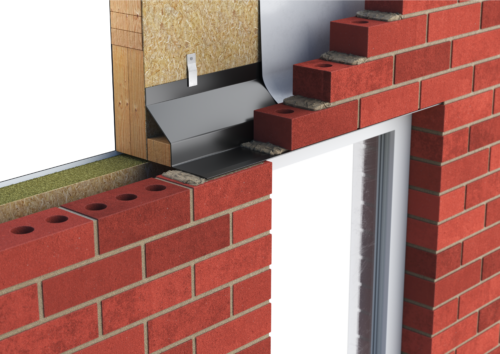

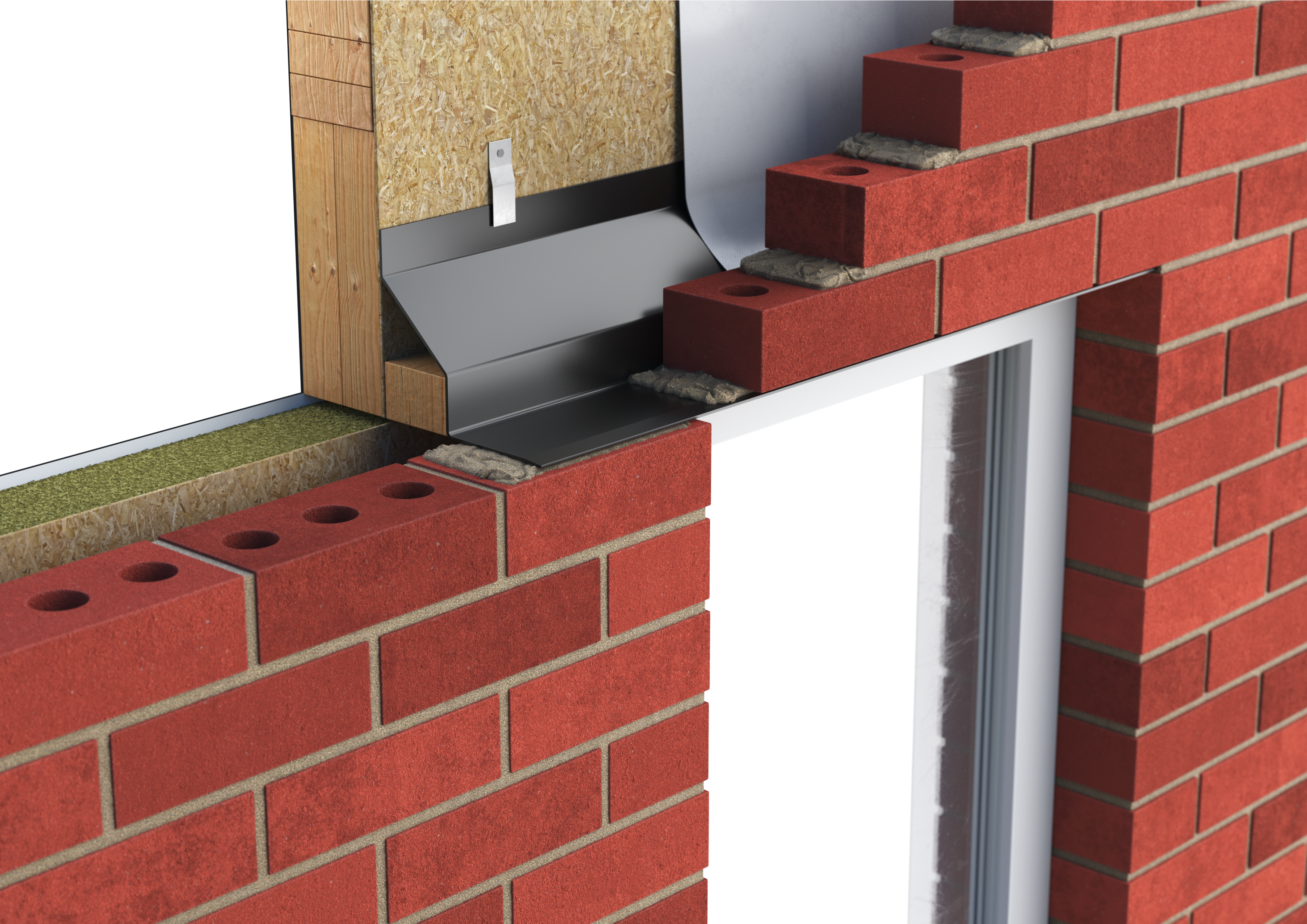

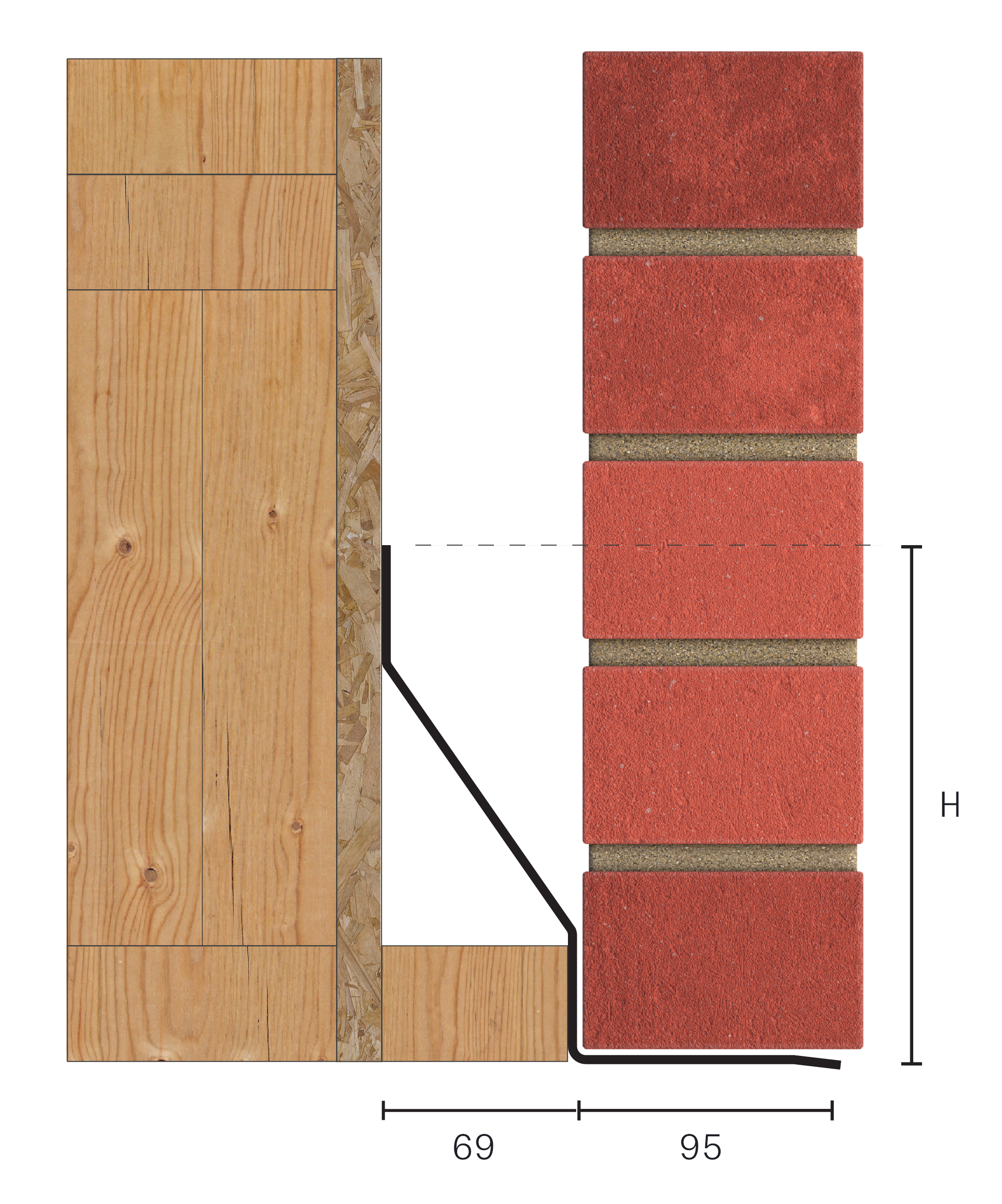

Catnic standard duty timber frame lintel for 70-85mm cavity wall shown in situ
  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.
