CTF5
Overview
Product Information

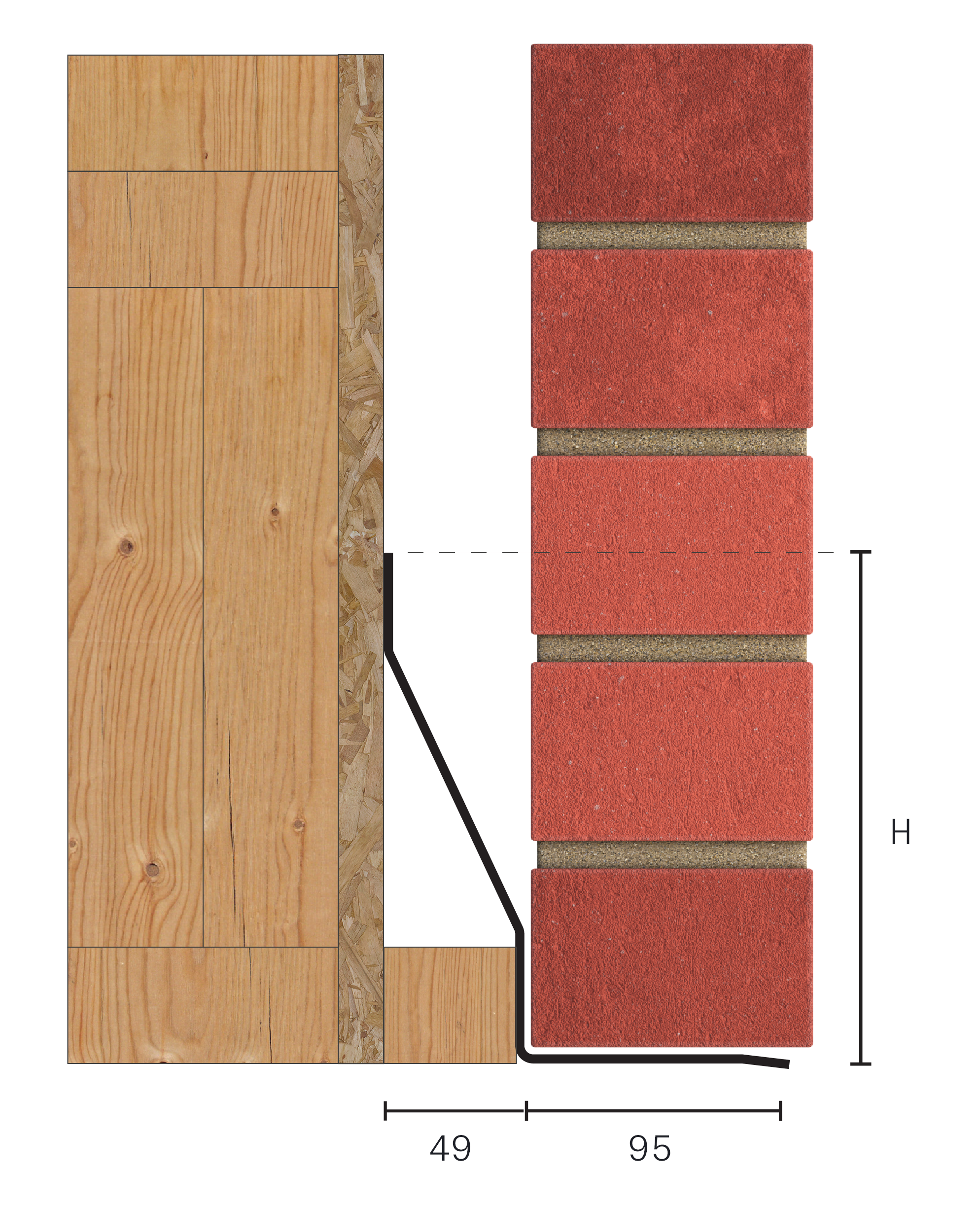

- Wall Construction
- Timber Frame
- Outer Leaf
- 100-102
- Cavity
- 50-65
- Inner Leaf
- N/A
- Wall Width
- Loading Conditions
- Standard
Specification
| Product Code | Standard Length (mm) | SWL (kN) | Weight (kg) | Nominal Height (mm) | |
|---|---|---|---|---|---|
| CTF50750 | 750 | 5 | 2.27 | 128 | |
| CTF50900 | 900 | 5 | 2.73 | 128 | |
| CTF51050 | 1050 | 5 | 3.18 | 128 | |
| CTF51200 | 1200 | 5 | 3.63 | 128 | |
| CTF51350 | 1350 | 5 | 4.09 | 128 | |
| CTF51500 | 1500 | 5 | 4.55 | 128 | |
| CTF51650 | 1650 | 7 | 6.24 | 128 | |
| CTF51800 | 1800 | 7 | 6.80 | 128 | |
| CTF51950 | 1950 | 7 | 8.76 | 183 | |
| CTF52100 | 2100 | 7 | 9.43 | 183 | |
| CTF52250 | 2250 | 7 | 10.10 | 183 | |
| CTF52400 | 2400 | 7 | 10.78 | 183 | |
| CTF52550 | 2550 | 7 | 14.31 | 183 | |
| CTF52700 | 2700 | 7 | 15.15 | 183 | |
| CTF52850 | 2850 | 7 | 15.99 | 183 | |
| CTF53000 | 3000 | 9 | 21.15 | 256 | |
| CTF53300 | 3300 | 9 | 23.27 | 256 | |
| CTF53600 | 3600 | 9 | 25.38 | 256 | |
| CTF53900 | 3900 | 10 | 34.09 | 256 | |
| CTF54200 | 4200 | 10 | 36.71 | 256 | |
| CTF54575 | 4575 | 10 | 39.99 | 256 | |
| CTF54800 | 4800 | 10 | 41.95 | 256 |
- The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
- Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
- CTF lintels should be suitably propped and secured with provided restraint clips and timber batten (not provided) during construction.
Features

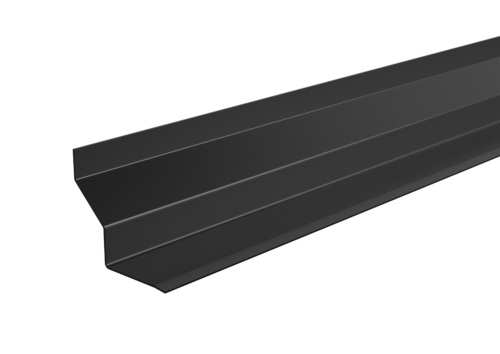

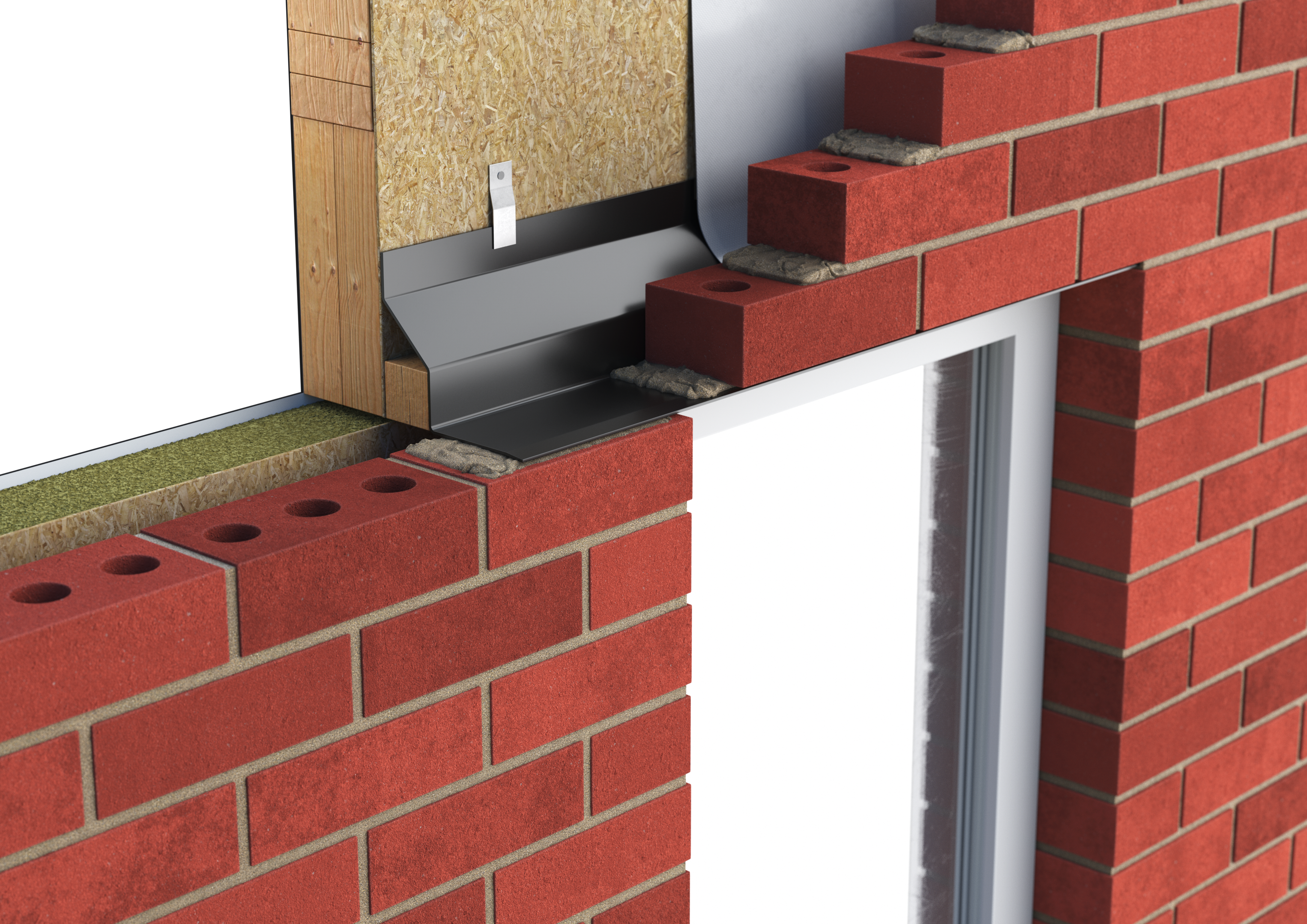

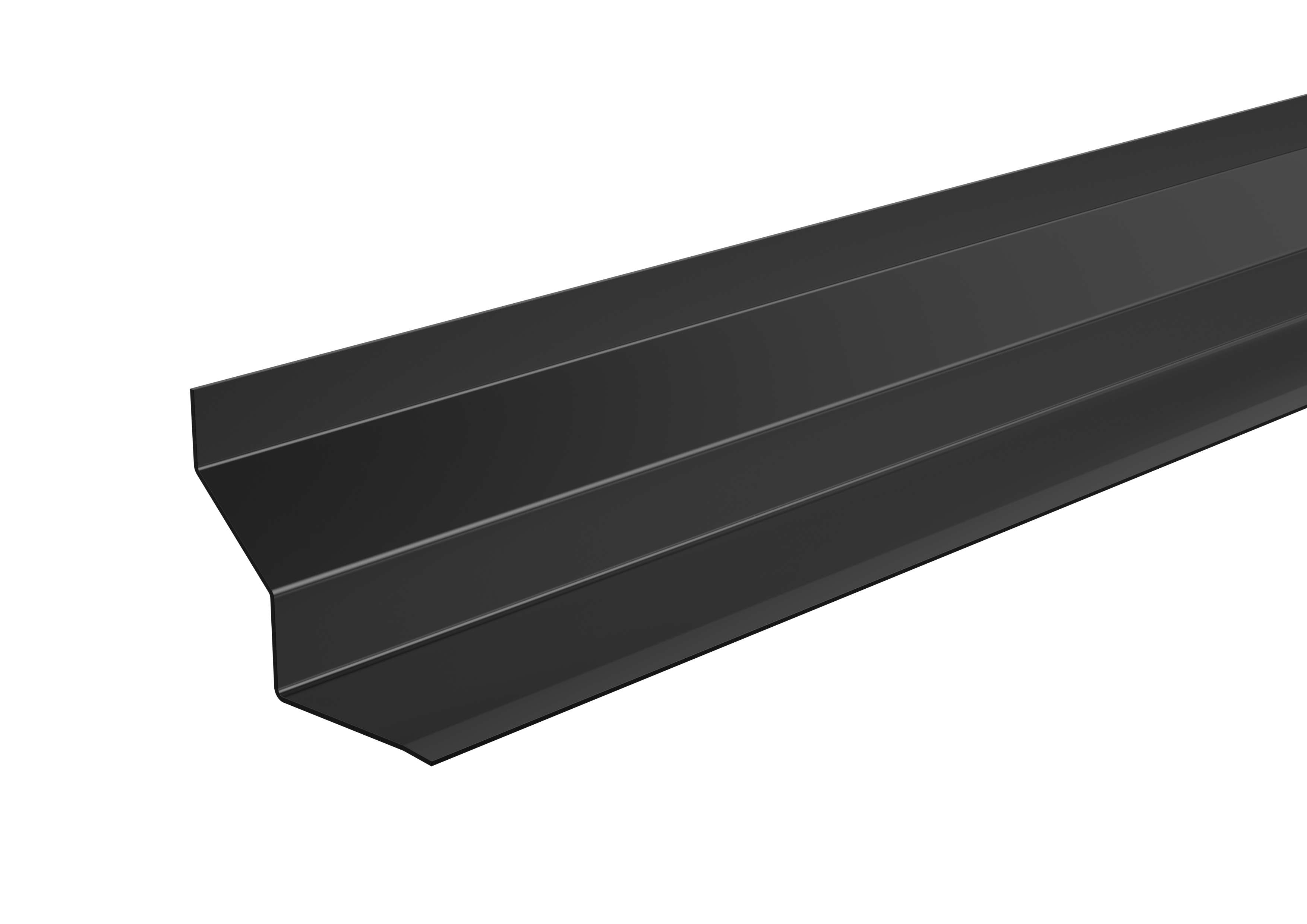

Steel lintel for use in timber frame construction, consists of single element lintel, allows vertical differential movement of timber frame. Built in DPC thanks to Catnic's signature black powder coating
- Duplex Corrosion Protection
- Built-In DPC
- Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
- Made using lower carbon manufacturing
- It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
