CN92
Overview
Product Information
- Wall Construction
- Internal Wall
- Outer Leaf
- N/A
- Cavity
- N/A

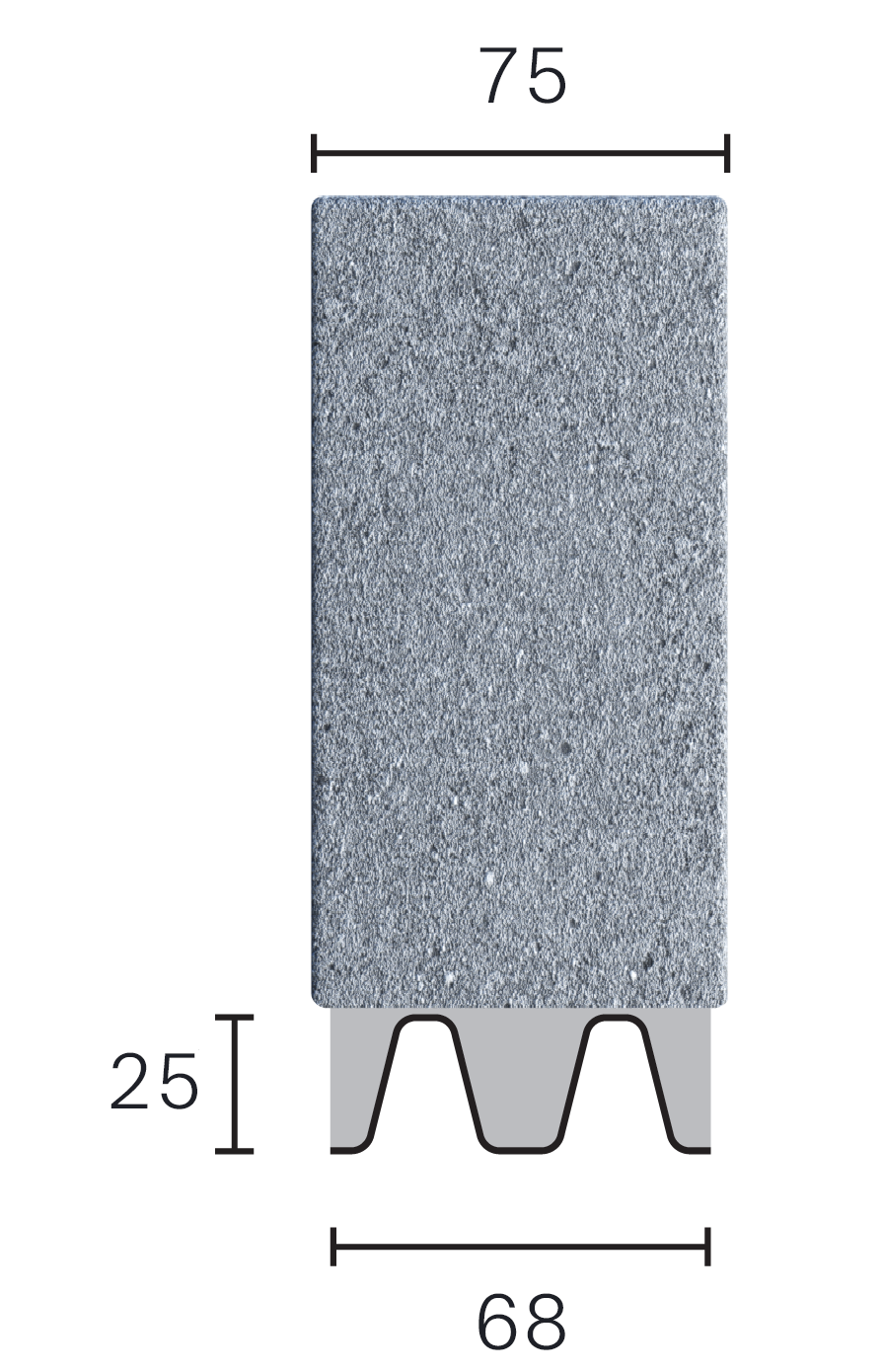

- Inner Leaf
- 75
- Wall Width
- 75
- Loading Conditions
- Extra Light
Specification
| Product Code | Standard Length (mm) | SWL (kN) | Weight (kg) | Nominal Height (mm) | |
|---|---|---|---|---|---|
| CN921050 | 1050 | 7 | 1.26 | 25 | |
| CN921200 | 1200 | 7 | 1.44 | 25 |
- The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
- Standard lengths are available in 150mm increments.
Features

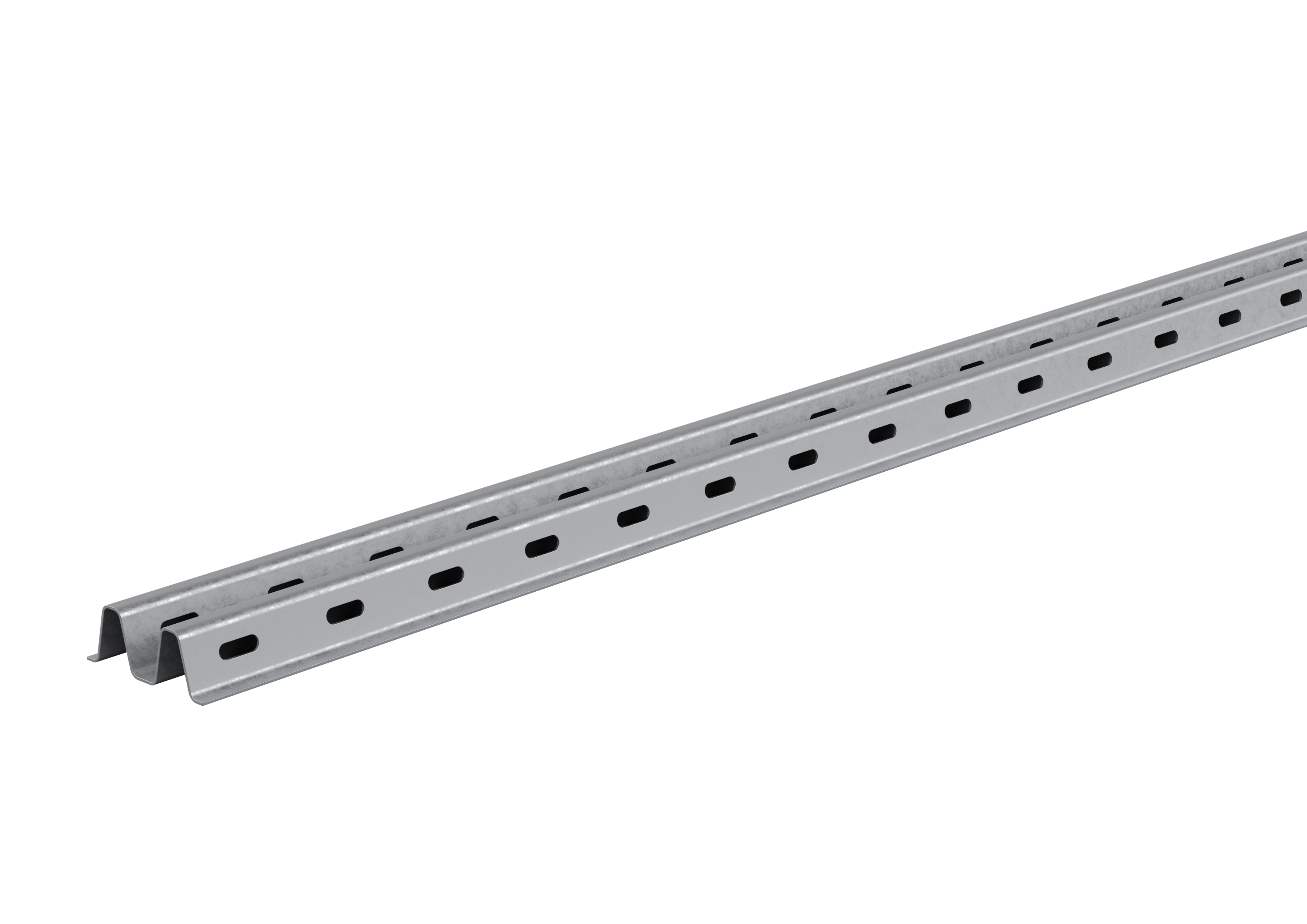

Light duty steel lintel for use in masonry wall construction for internal load bearing walls 75mm and 100mm. Offers a cost effective solution for extra light duty loads. Suitable for nominal domestic loading. Manufactured from galvanised steel.
- Galvanised Steel
- Integral Plaster Key
- Integral Insulation
- Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
- Made using lower carbon manufacturing
- It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
