Heavy Duty Steel Lintel

CN81C

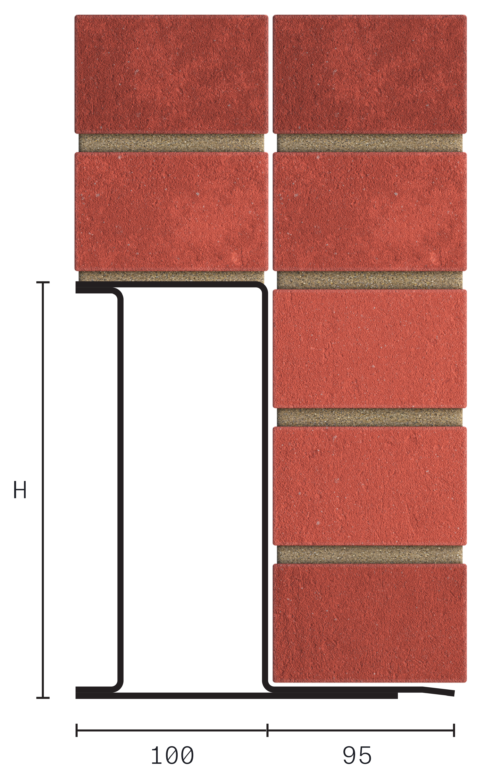

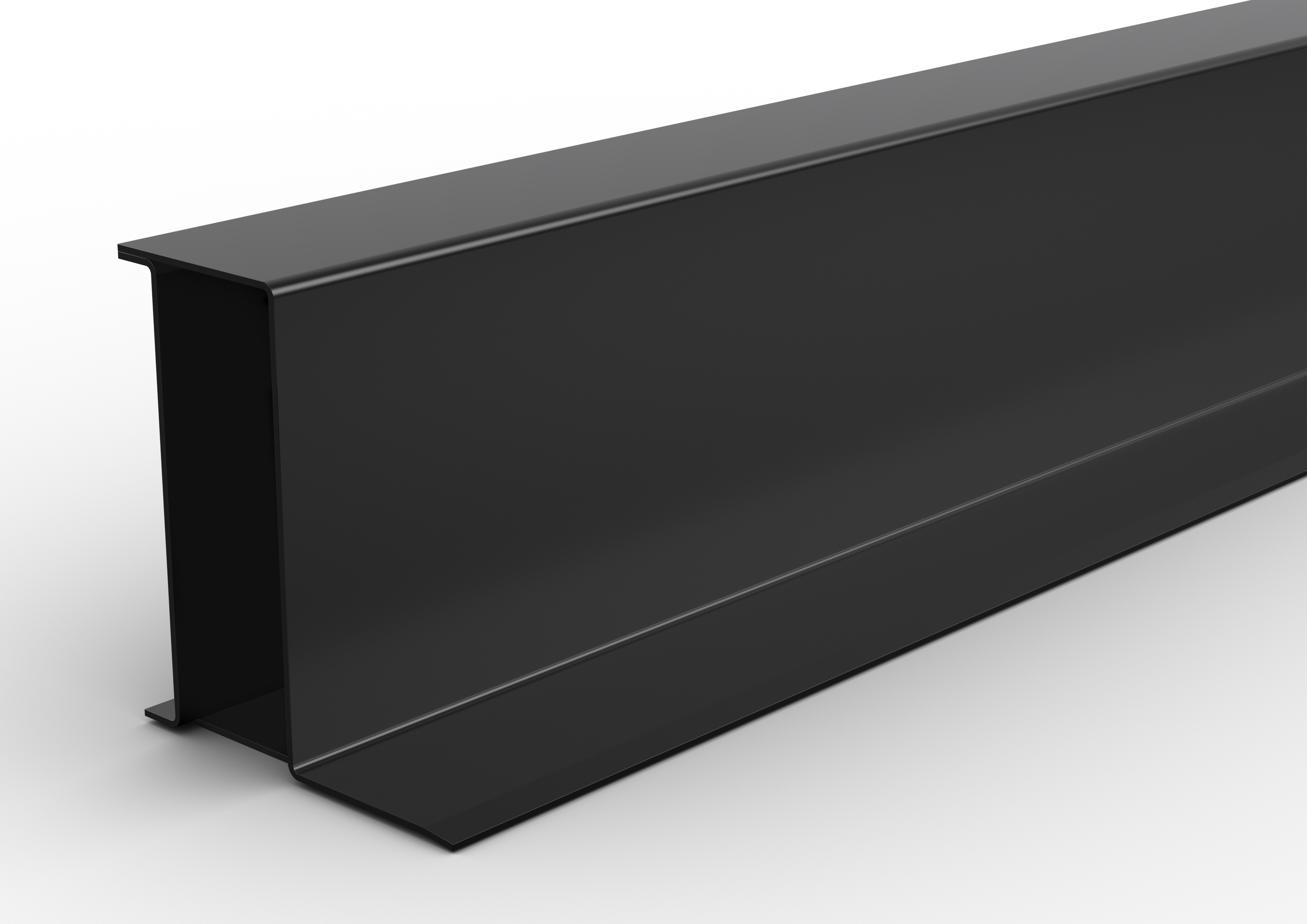

Catnic heavy duty box with toe wall lintel for 200mm and 215mm exterior solid walls

Overview

Product Information

Wall Construction
External Solid Wall
Outer Leaf
200-215
Cavity
N/A
Inner Leaf
N/A
Wall Width
200-215
Loading Conditions
Heavy

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
CN81C2100 2100 54 38.18 219
CN81C2250 2250 54 40.91 219
CN81C2400 2400 54 43.63 219
CN81C2550 2550 54 46.36 219
CN81C2700 2700 54 49.09 219
CN81C2850 2850 47 51.81 219
CN81C3000 3000 47 54.54 219
CN81C3300 3300 47 59.99 219
CN81C3600 3600 39 65.45 219
CN81C3900 3900 29 70.90 219
CN81C4200 4200 29 76.36 219
CN81C4575 4575 29 83.17 219
CN81C4800 4800 26 87.26 219
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 4800mm (including 4575mm, but excluding 4500mm).

Features

Standard duty steel lintel for use in masonry construction for 200mm and 215mm exterior solid walls. Manufactured from galvanised steel with Catnic's signature black powder coating.
  • Duplex Corrosion Protection
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

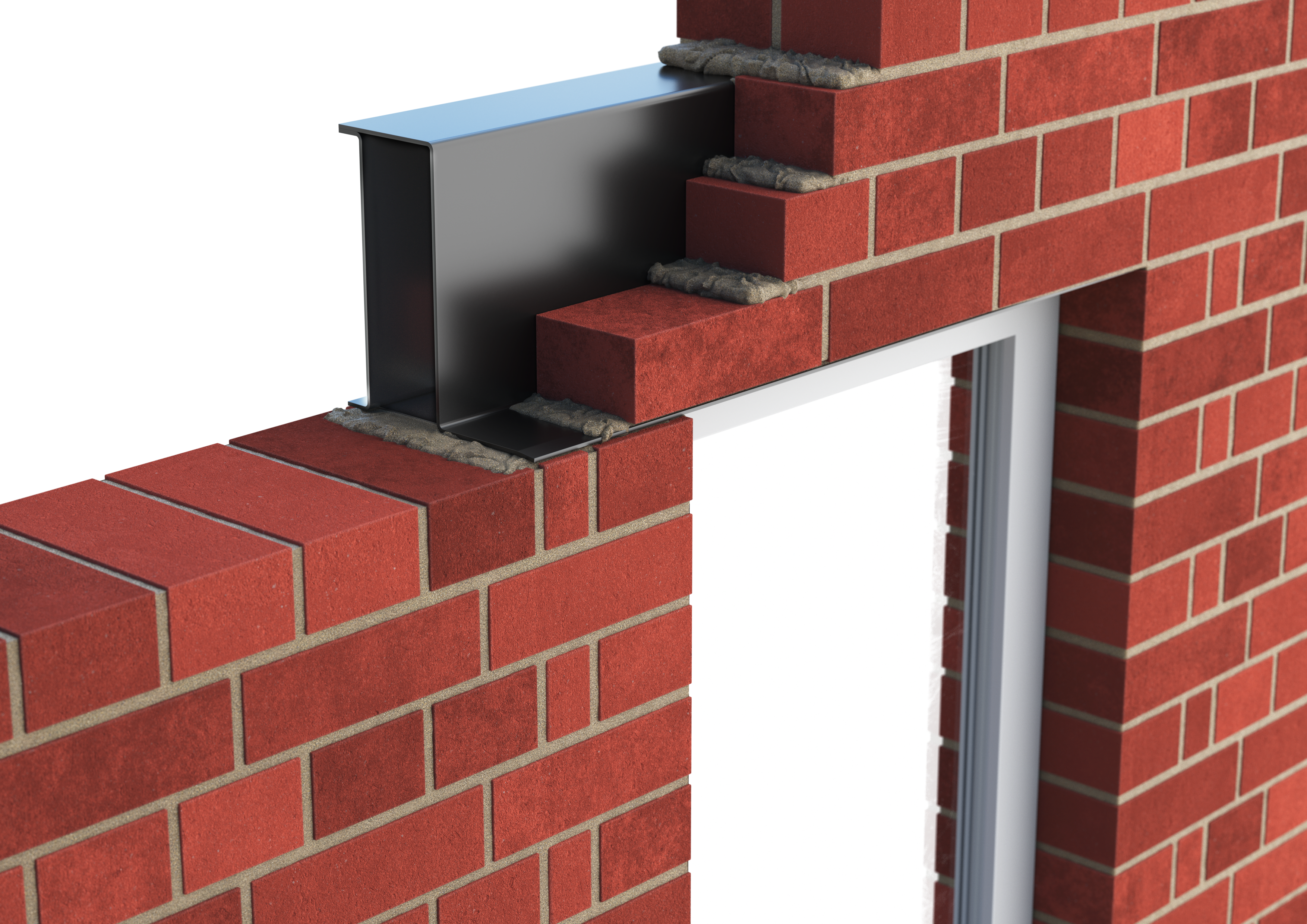

Catnic heavy duty box with toe wall lintel for exterior solid walls shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.
