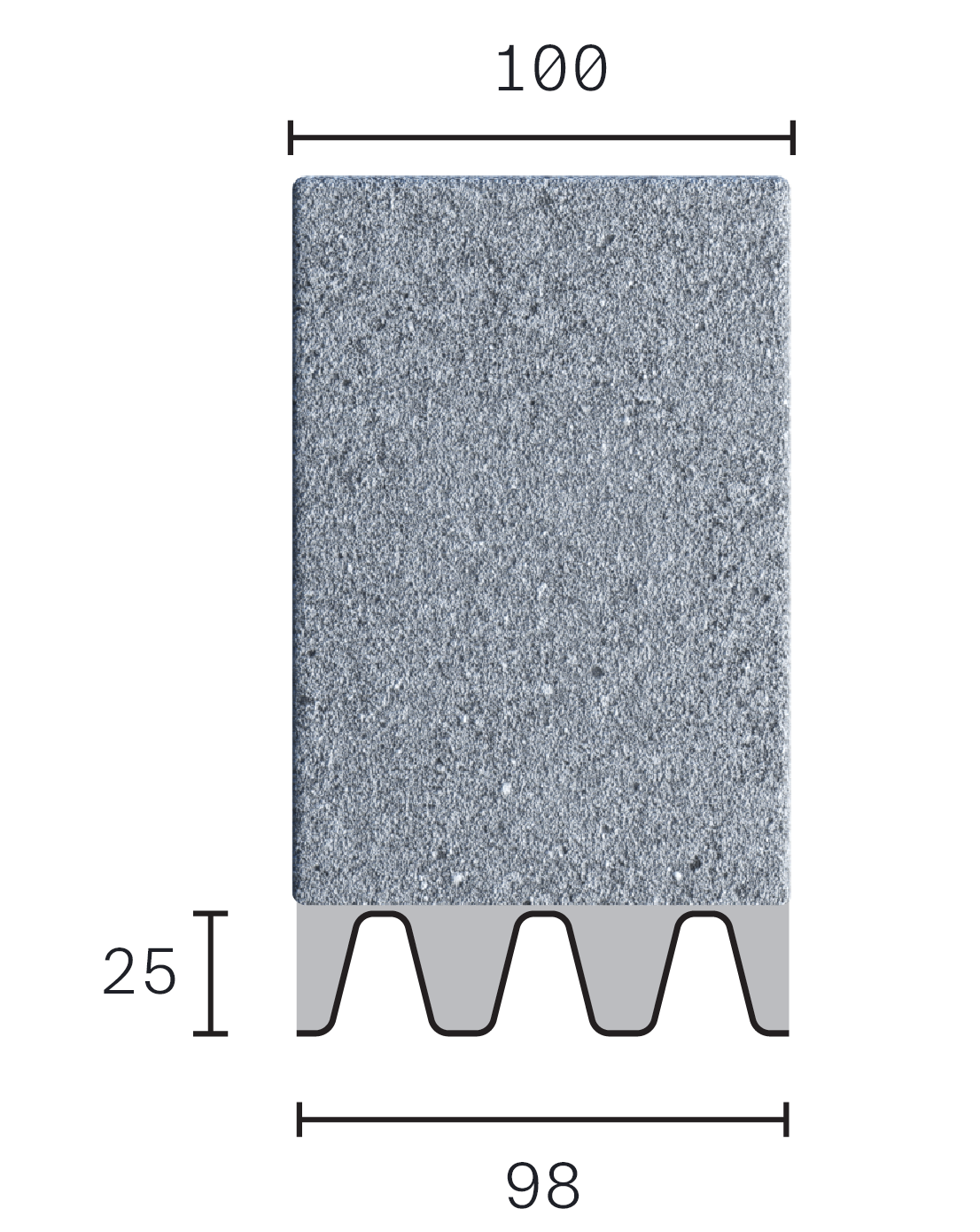

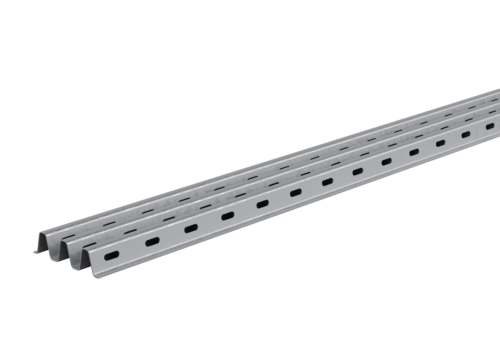

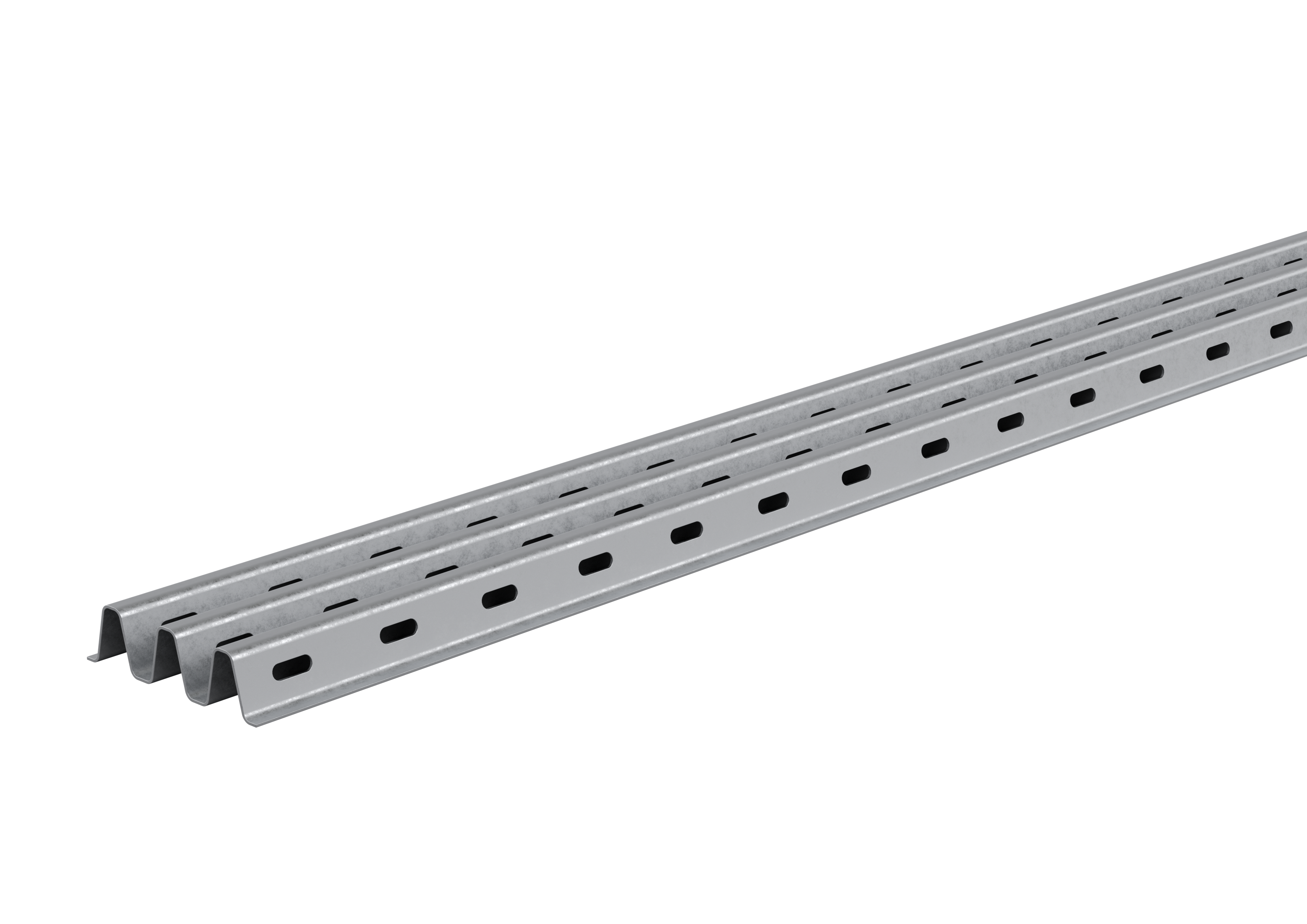

Catnic extra light duty corrugated lintel for 75mm interior solid wall
Extra Light Duty Steel Lintel

CN102

Description
Light duty steel lintel for use in masonry wall construction for internal load bearing walls 75mm and 100mm. Offers a cost effective solution for extra light duty loads. Suitable for nominal domestic loading. Manufactured from galvanised steel.

Overview

Product Information

Wall Construction
Internal Wall
Outer Leaf
N/A
Cavity
N/A
Inner Leaf
100
Wall Width
100
Loading Conditions
Extra Light

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm) Price
CN1021050 1050 7 1.89 25 Contact sales
CN1021200 1200 7 2.16 25
Contact sales
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in 150mm increments.

Benefits

  • Galvanised Steel
  • Integral Plaster Key
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

Features

catnic cn92 steel lintel shown in situ
  • Galvanised steel

What our customers think

Video Guides

When selecting a lintel, there are three factors that should be considered to ensure the correct specification: the type of wall construction, the dimensions of the structural opening and the total load on the lintel. In this video, we run you through the lintel selection process.

Catnic thermally broken lintel installation

Once you have chosen the correct lintel for your project, it is crucial that the lintel be installed properly – if it is not, it could lead to serious issues for the building. In this video, we explain the installation considerations for cavity wall lintels.

Builder installed Catnic CG90/100 lintel

Catnic’s Thermally Broken Lintel is the only lintel on the market to provide a complete thermal break between the inner and outer leafs. In this video, we outline the key benefits of Thermally Broken Lintels and explain the installation process.

Catnic TS90/100 lifted into position by builders

Steel lintels, and specifically Catnic's thermally broken lintels, have a significant role to play in reducing thermal bridging and achieving carbon gains. They represent one of the simplest and most economical ways for building fabric to be designed and constructed to help achieve the carbon gains necessary to meet current and future building regulations.
