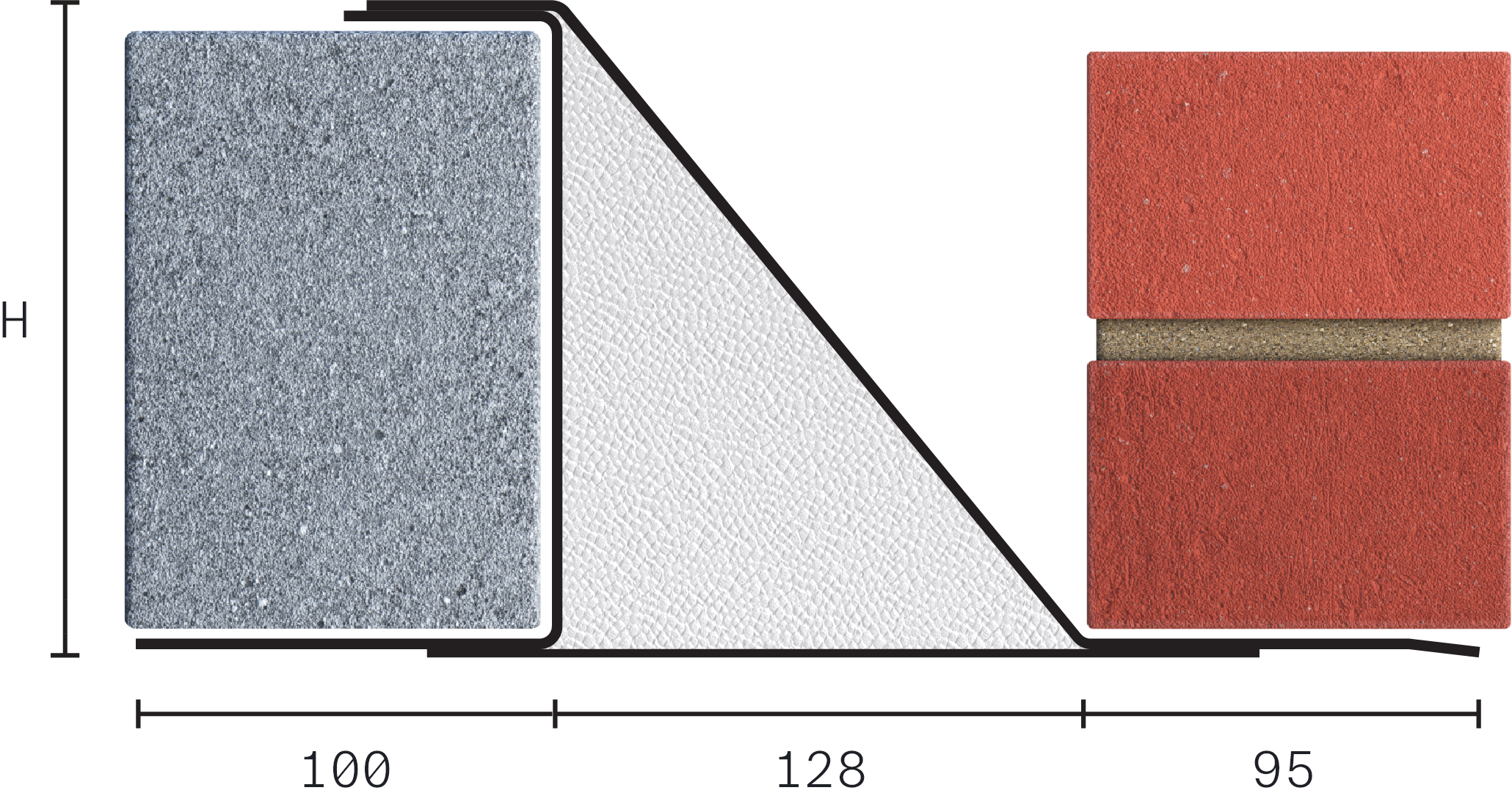

catnic steel lintel heavy duty or extra heavy duty profile shape
Heavy Duty Steel Lintel

CH130/100

Description
Heavy duty steel lintel for use in cavity wall construction, designed to support typical masonry, timber floor, roof loads and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key, and built in DPC thanks to Catnic's signature black powder coating.

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
130-145
Inner Leaf
100-115
Wall Width
Loading Conditions
Heavy

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/19:1 Weight (kg) Nominal Height (mm) Price
CH130/1000900 900 32 11.34 158 Contact sales
CH130/1001050 1050 32 13.23 158 Contact sales
CH130/1001200 1200 32 15.12 158 Contact sales
CH130/1001350 1350 32 17.01 158 Contact sales
CH130/1001500 1500 32 18.90 158 Contact sales
CH130/1001650 1650 32 20.79 158 Contact sales
CH130/1001800 1800 32 22.68 158 Contact sales
CH130/1001950 1950 48 29.37 158 Contact sales
CH130/1002100 2100 48 31.63 158 Contact sales
CH130/1002250 2250 45 33.89 158 Contact sales
CH130/1002400 2400 45 36.14 158 Contact sales
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in 150mm increments up to 2400mm.
  • When using the Catnic CH and CX Open Back ranges with concrete floors, always ensure that the blockwork is built tight against the inner vertical face, and that a mortar joint is added to the top of the blockwork so that the floor units have an even spread over the inner flange of the lintel.

Benefits

  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Built-In DPC
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

Features

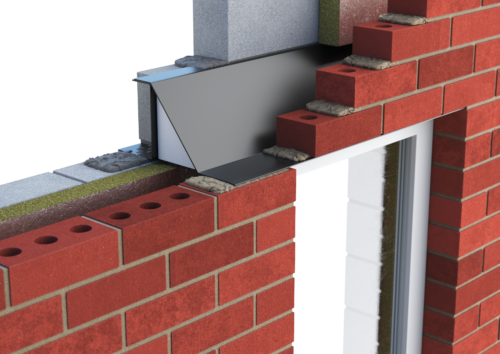

Catnic heavy duty cavity wall lintel for 130mm cavity wall shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
