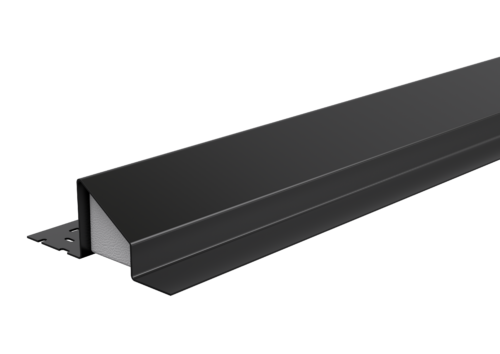

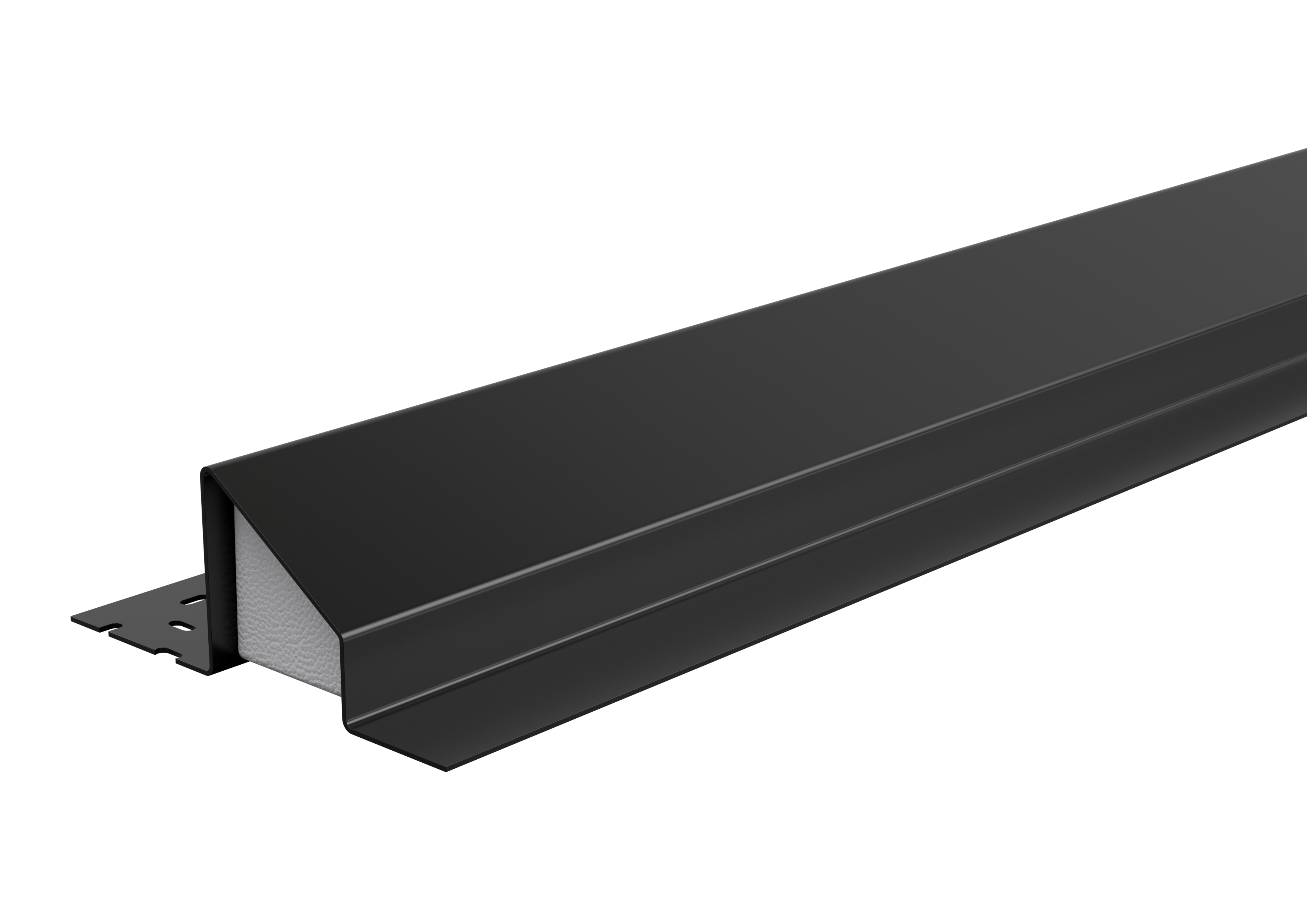

Catnic standard duty cavity wall lintel for closed eaves
Standard Duty Steel Lintel

CGE90/100

Description
Steel lintel for use in 90mm standard duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating

Overview

Product Information

Wall Construction
Eaves
Outer Leaf
N/A
Cavity
90-125
Inner Leaf
100-115
Wall Width
Loading Conditions
Standard

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm) Price
CGE90/1000750 750 20 4.96 97 Contact sales
CGE90/1000900 900 20 5.87 97 Contact sales
CGE90/1001050 1050 20 6.78 97 Contact sales
CGE90/1001200 1200 20 7.88 97 Contact sales
CGE90/1001350 1350 20 8.79 97 Contact sales
CGE90/1001500 1500 20 9.71 97 Contact sales
CGE90/1001650 1650 22 11.44 117 Contact sales
CGE90/1001800 1800 22 12.43 117 Contact sales
CGE90/1002100 2100 22 14.41 117 Contact sales
CGE90/1002400 2400 20 25.34 118 Contact sales
CGE90/1002700 2700 20 28.51 118 Contact sales
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in 150mm increments up to 1800mm, 300mm increments from 1800mm to 2700mm.

Benefits

  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Built-In DPC
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

Features

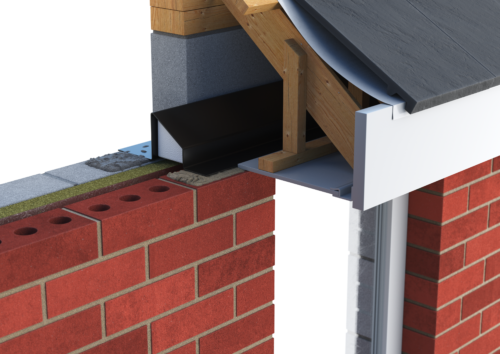

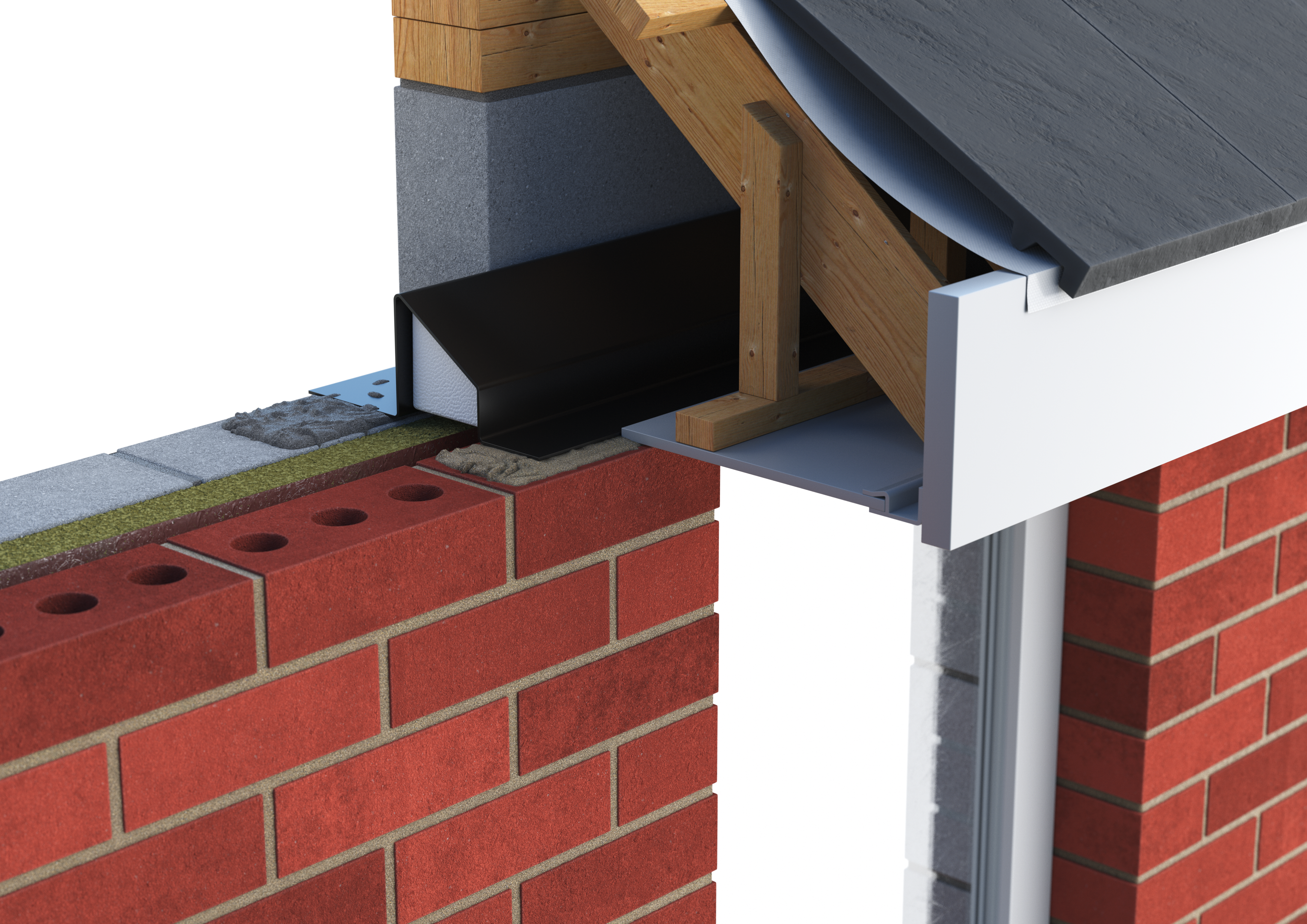

Catnic standard duty cavity wall lintel for closed eaves shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
