Standard Duty Steel Lintel

CG70/100

Catnic standard duty CG lintel

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
70-85
Inner Leaf
100-115
Wall Width
Loading Conditions
Standard

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/3:1 Weight (kg) Nominal Height (mm)
CG70/1000900 900 15 5.71 136 Buy Now
CG70/1001200 1200 15 7.65 136 Buy Now
CG70/1001500 1500 15 9.44 136 Buy Now
CG70/1001800 1800 18 13.93 136 Buy Now
CG70/1002100 2100 20 17.48 155 Buy Now
CG70/1002400 2400 22 21.35 175 Buy Now
CG70/1002700 2700 26 27.42 215 Buy Now
CG70/1003000 3000 26 37.85 216
CG70/1003300 3300 26 41.59 216
CG70/1003600 3600 26 45.33 216
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 300mm at lengths up to 3600mm.

Features

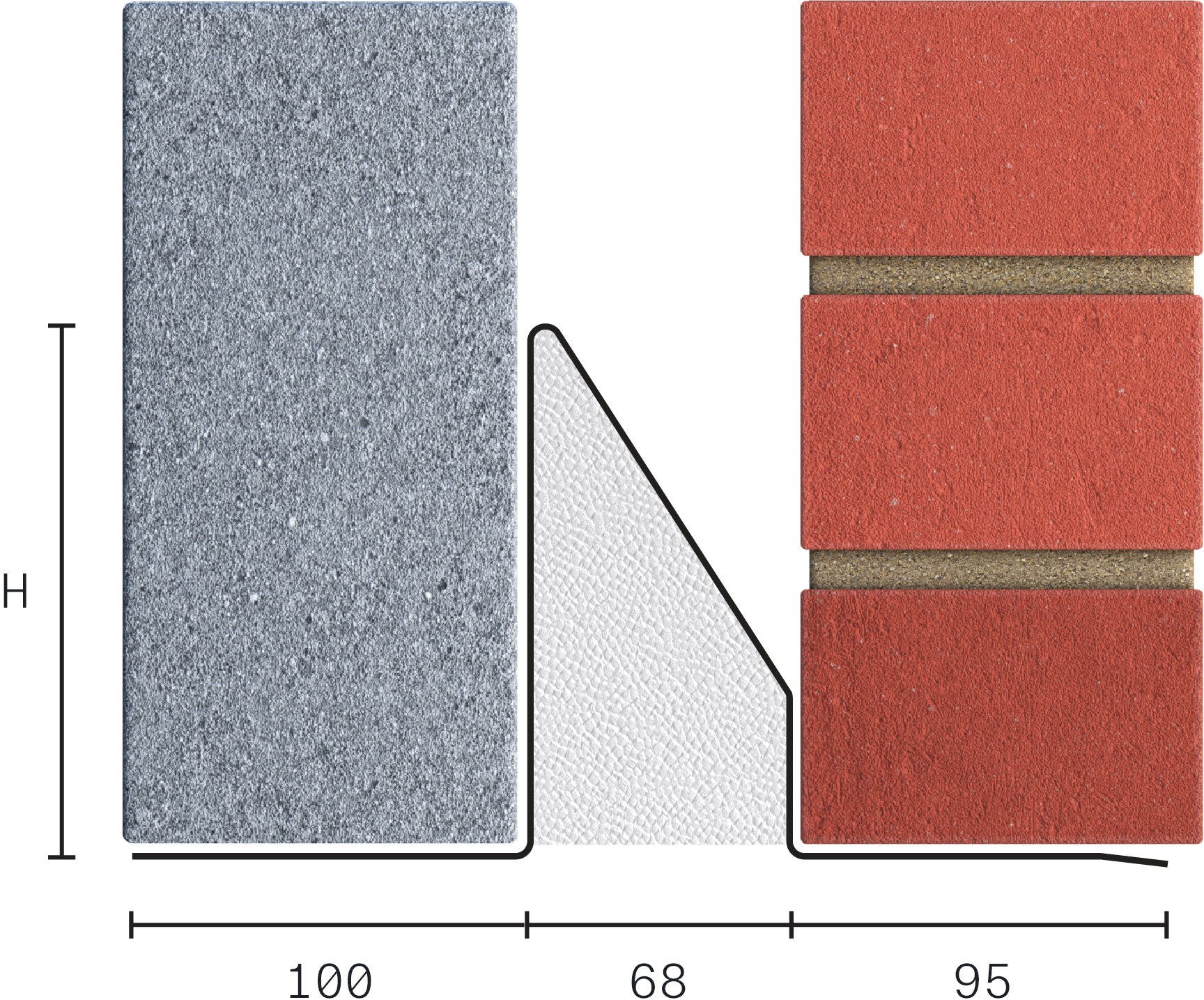

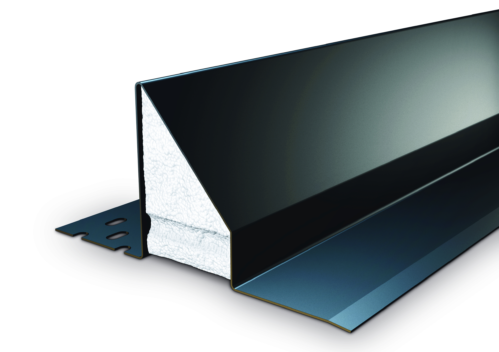

Steel lintel for use in 70mm standard duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Built-In DPC
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

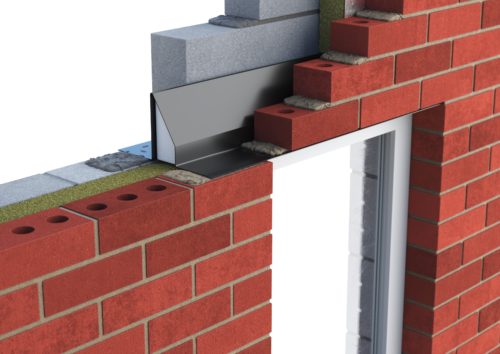

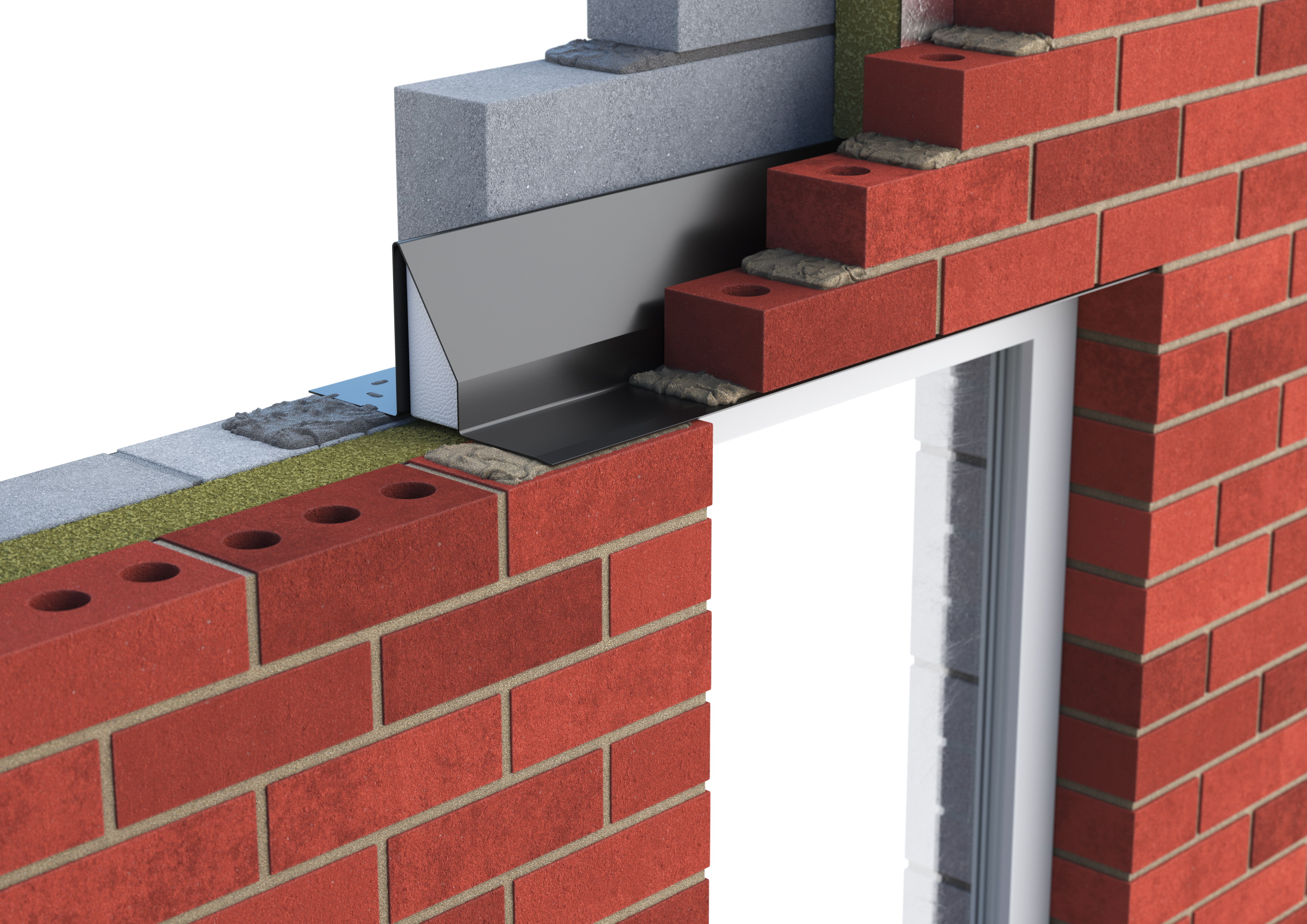

Catnic standard duty cavity wall lintel for 50mm cavity wall shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
