Standard Duty Steel Lintel

CG130/125

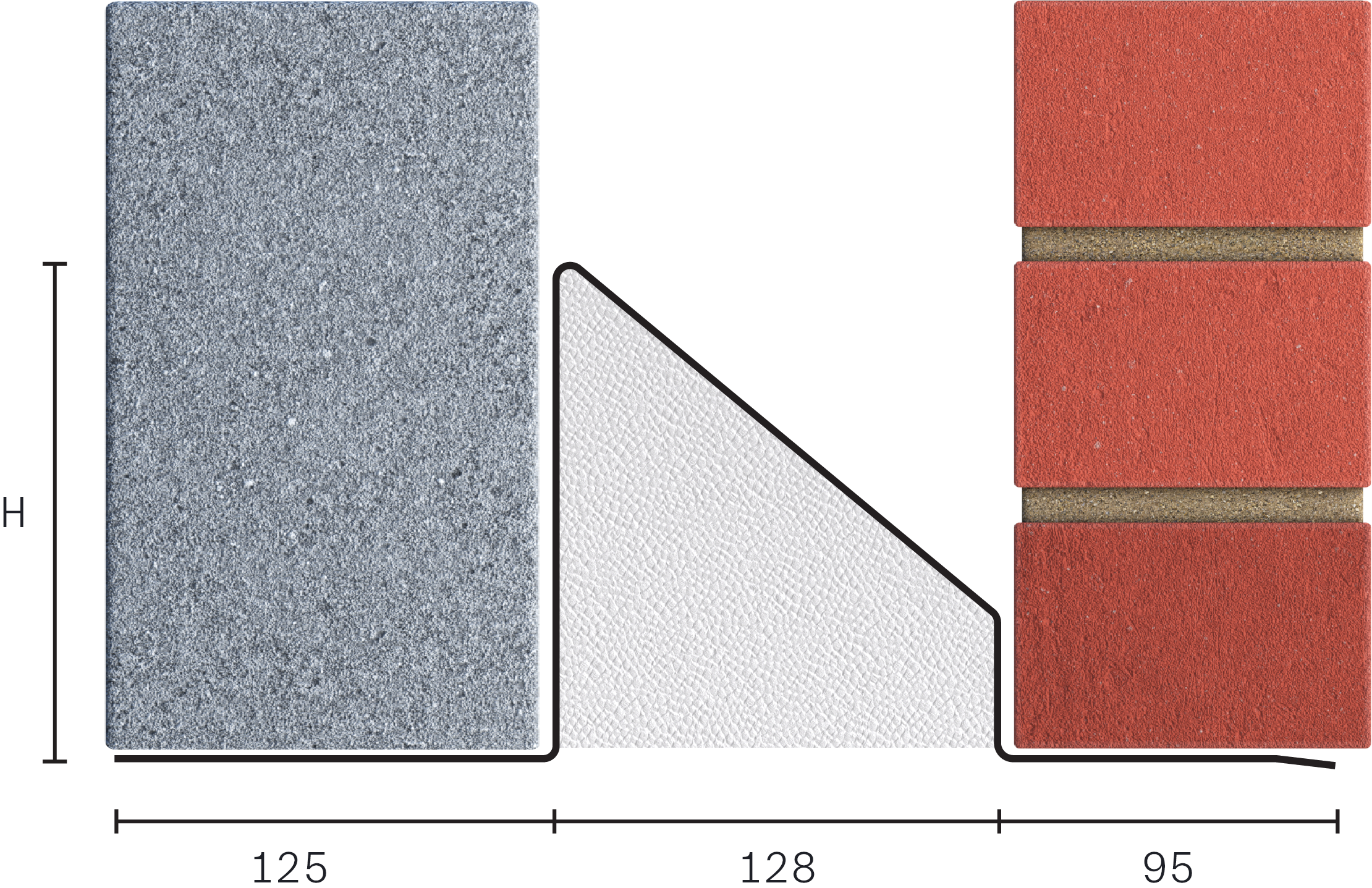

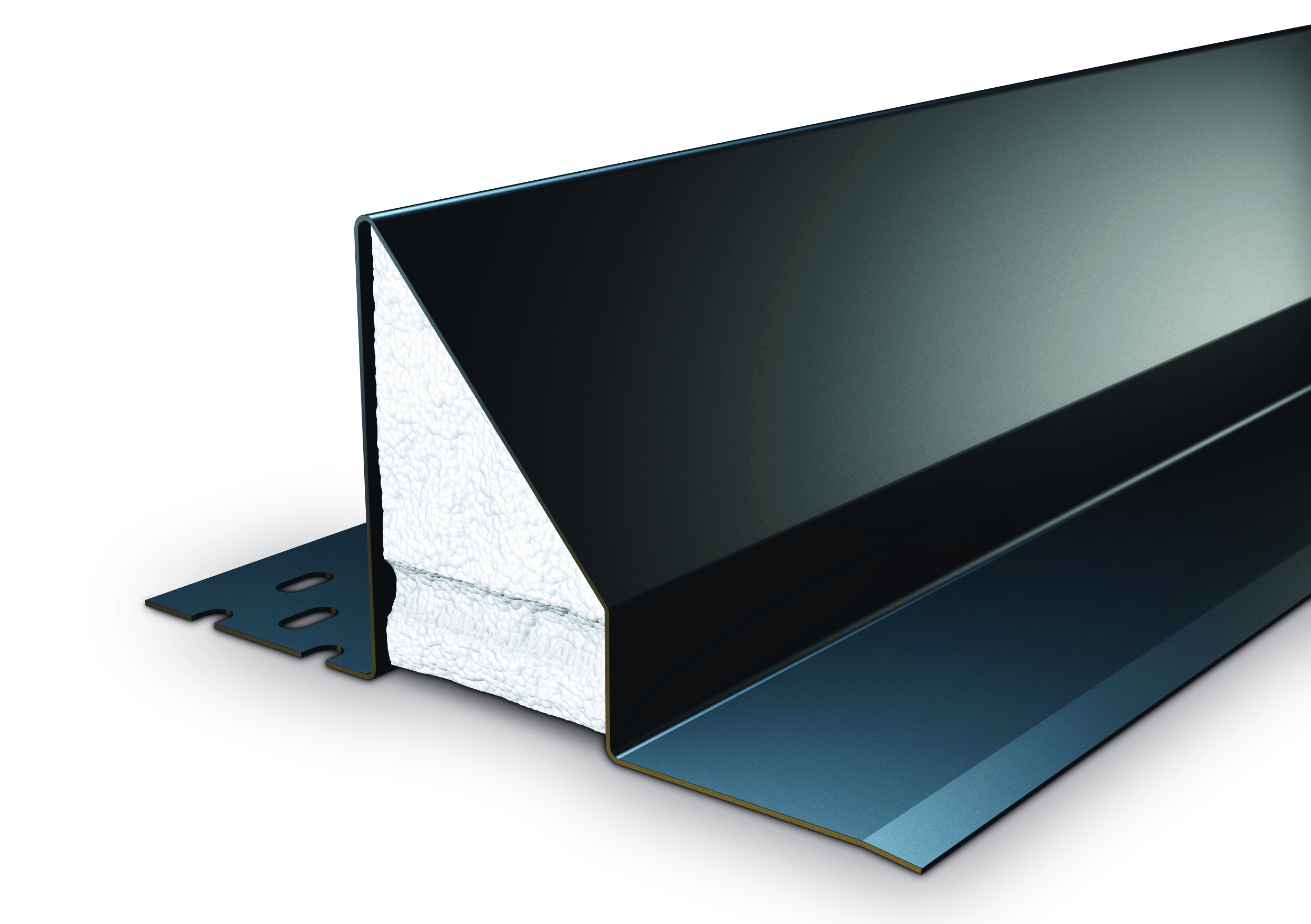

Catnic standard duty CG lintel

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
130-145
Inner Leaf
125-140
Wall Width
Loading Conditions
Standard

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/3:1 Weight (kg) Nominal Height (mm)
CG130/1250900 900 12 6.52 143
CG130/1251200 1200 12 8.69 143
CG130/1251500 1500 17 15.64 184
CG130/1251800 1800 17 18.77 184
CG130/1252100 2100 20 30.30 219
CG130/1252400 2400 20 34.62 219
CG130/1252700 2700 26 38.95 219
CG130/1253000 3000 26 43.28 219
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 3000mm at lengths up to 3000mm.

Features

Steel lintel for use in 130mm standard duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Built-In DPC
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

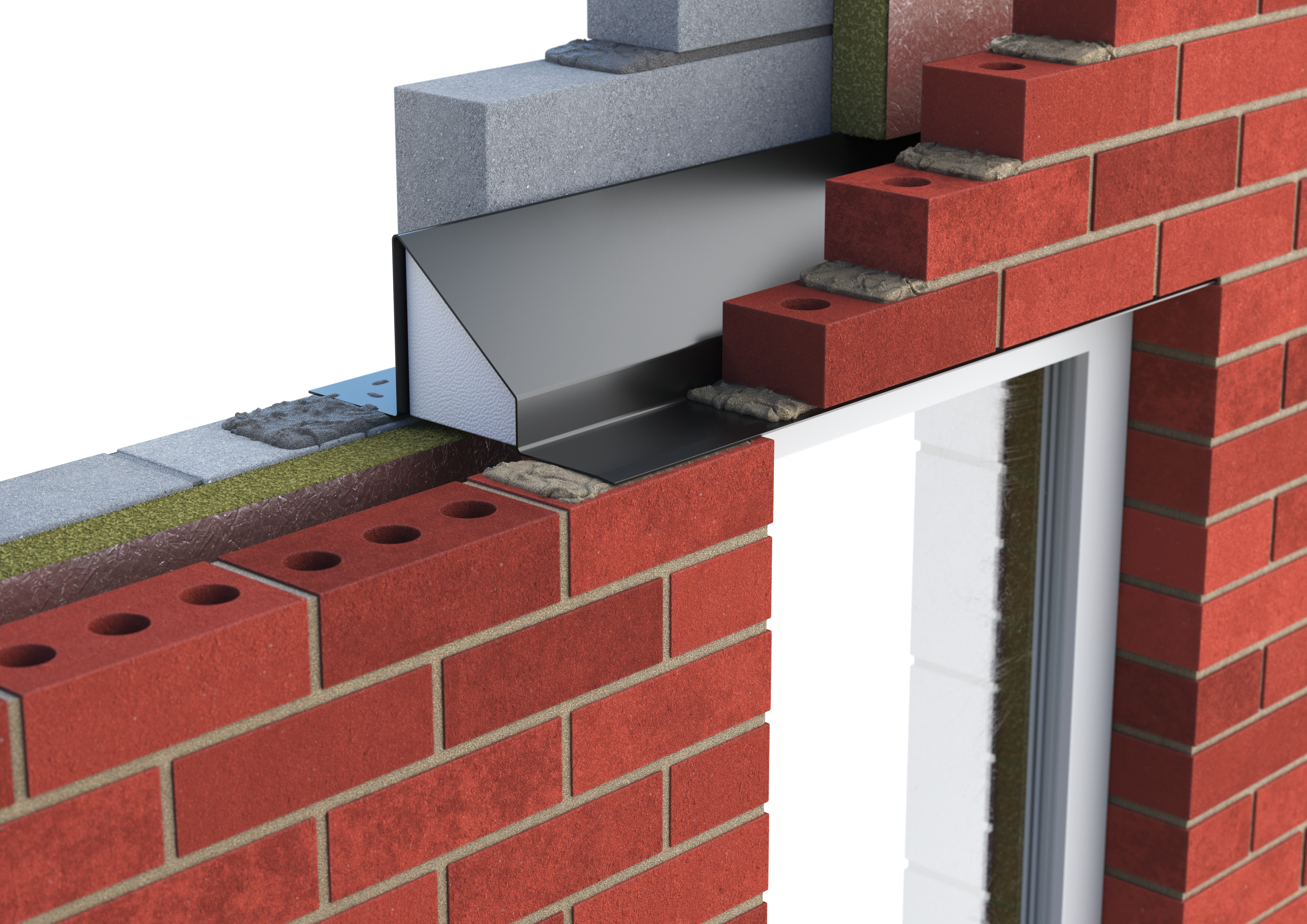

Catnic standard duty cavity wall lintel for 130mm cavity wall shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
