Standard Duty Steel Lintel

CG110/100

Catnic standard duty CG lintel

Overview

Product Information

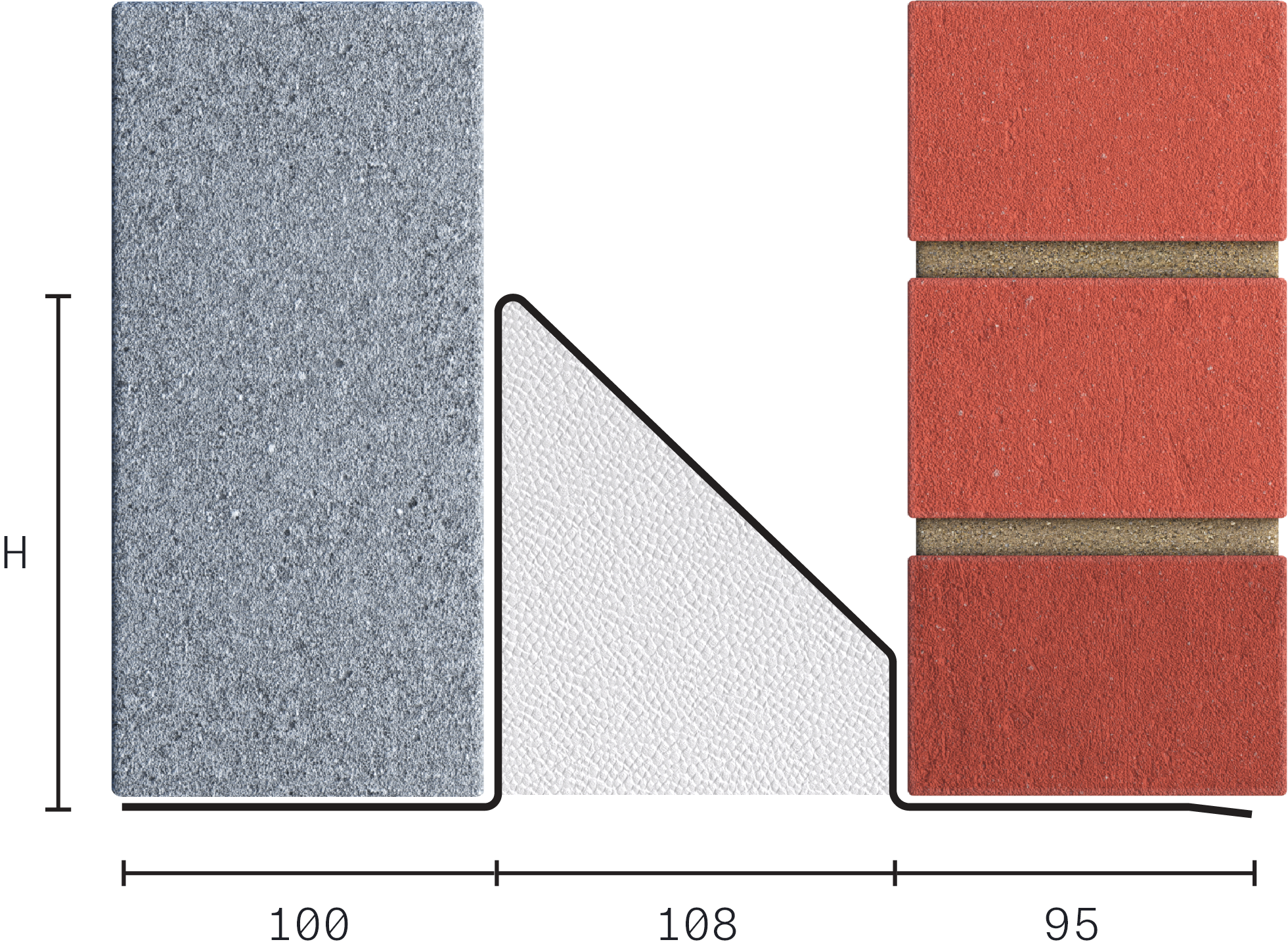

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
110-125
Inner Leaf
100-115
Wall Width
Loading Conditions
Standard

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/3:1 Weight (kg) Nominal Height (mm)
CG110/1000900 900 15 6.15 90
CG110/1001050 1050 15 7.11 90
CG110/1001200 1200 15 8.26 90 Buy Now
CG110/1001350 1350 15 9.22 90 Buy Now
CG110/1001500 1500 15 10.17 90 Buy Now
CG110/1001650 1650 18 13.12 139 Buy Now
CG110/1001800 1800 18 14.31 139 Buy Now
CG110/1001950 1950 20 17.58 139
CG110/1002100 2100 20 18.88 139 Buy Now
CG110/1002250 2250 22 21.35 180
CG110/1002400 2400 22 22.73 180 Buy Now
CG110/1002550 2550 26 27.35 220
CG110/1002700 2700 26 28.93 220
CG110/1002850 2850 26 37.97 221
CG110/1003000 3000 26 39.93 221
CG110/1003300 3300 26 43.86 221
CG110/1003600 3600 26 47.79 221
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 3600mm.

Features

Steel lintel for use in 110mm standard duty masonry cavity wall construction, designed to support typical masonry, timber floor and roof loads found in most buildings and suitable for fairfaced inner leaf masonry. Open back profile allows masonry to be built up continuously on both outer and inner leaf. Manufactured from galvanised steel, supplied fully insulated, with integral plaster key and Catnic's signature black powder coating
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Built-In DPC
  • Integral Insulation
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

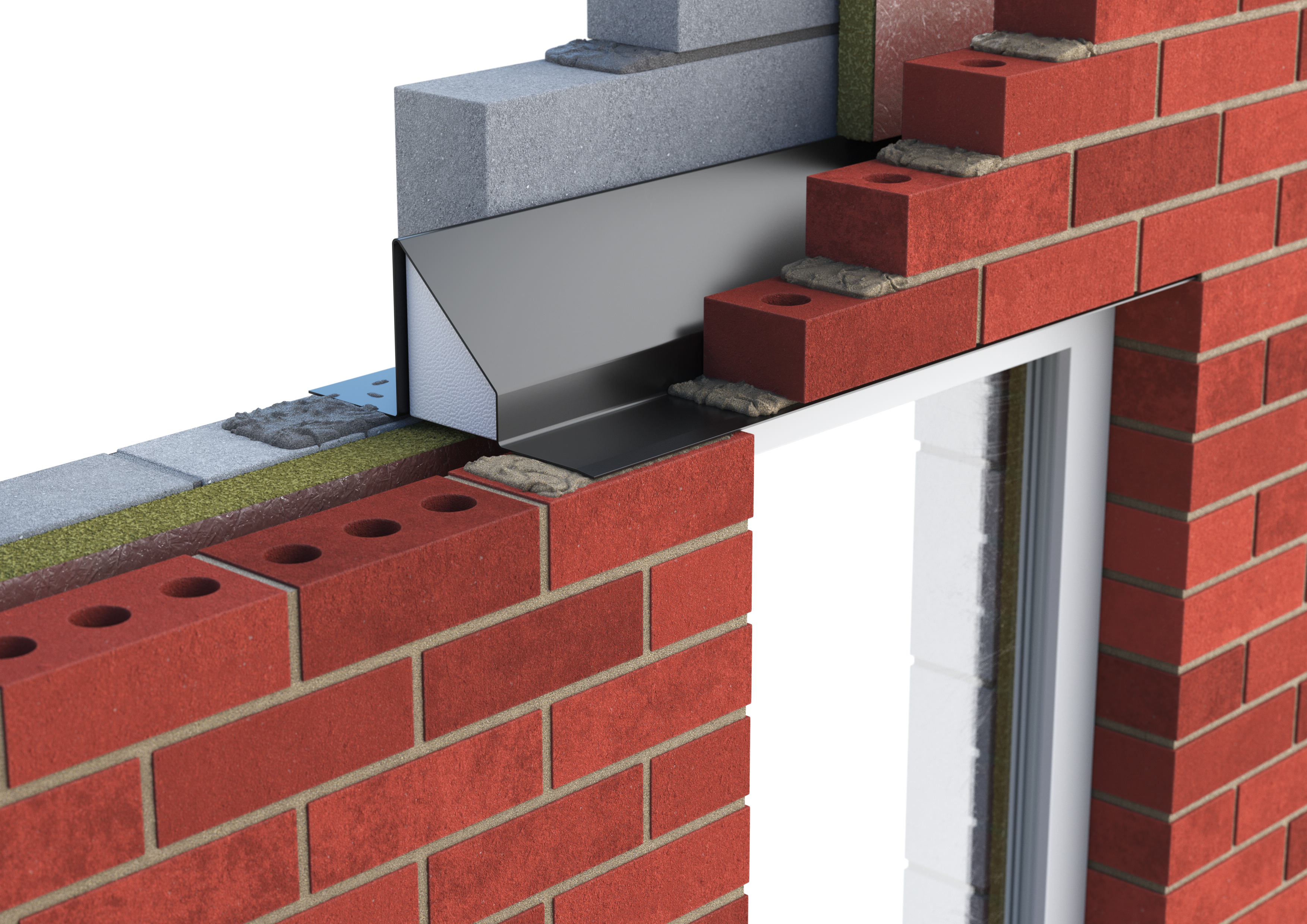

Catnic standard duty cavity wall lintel for 110mm cavity wall shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.

  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Continuous Insulation

    Many Catnic lintels are supplied with CFC and HCFC free insulation maximising their thermal efficiency and compliance with Part L.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
