Standard Duty Steel Lintel

CCS

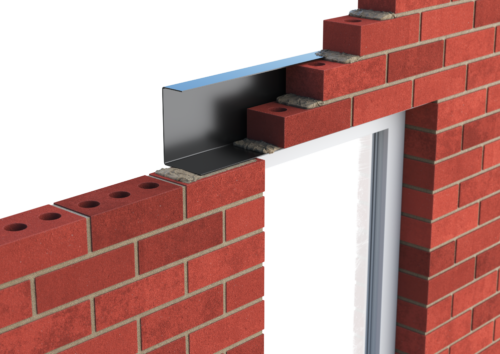

Catnic standard duty channel lintel for 102mm exterior solid wall

Overview

Product Information

Wall Construction
Single Leaf Wall
Outer Leaf
100-102
Cavity
N/A
Inner Leaf
N/A
Wall Width
100-102
Loading Conditions
Standard

Downloads

Specification

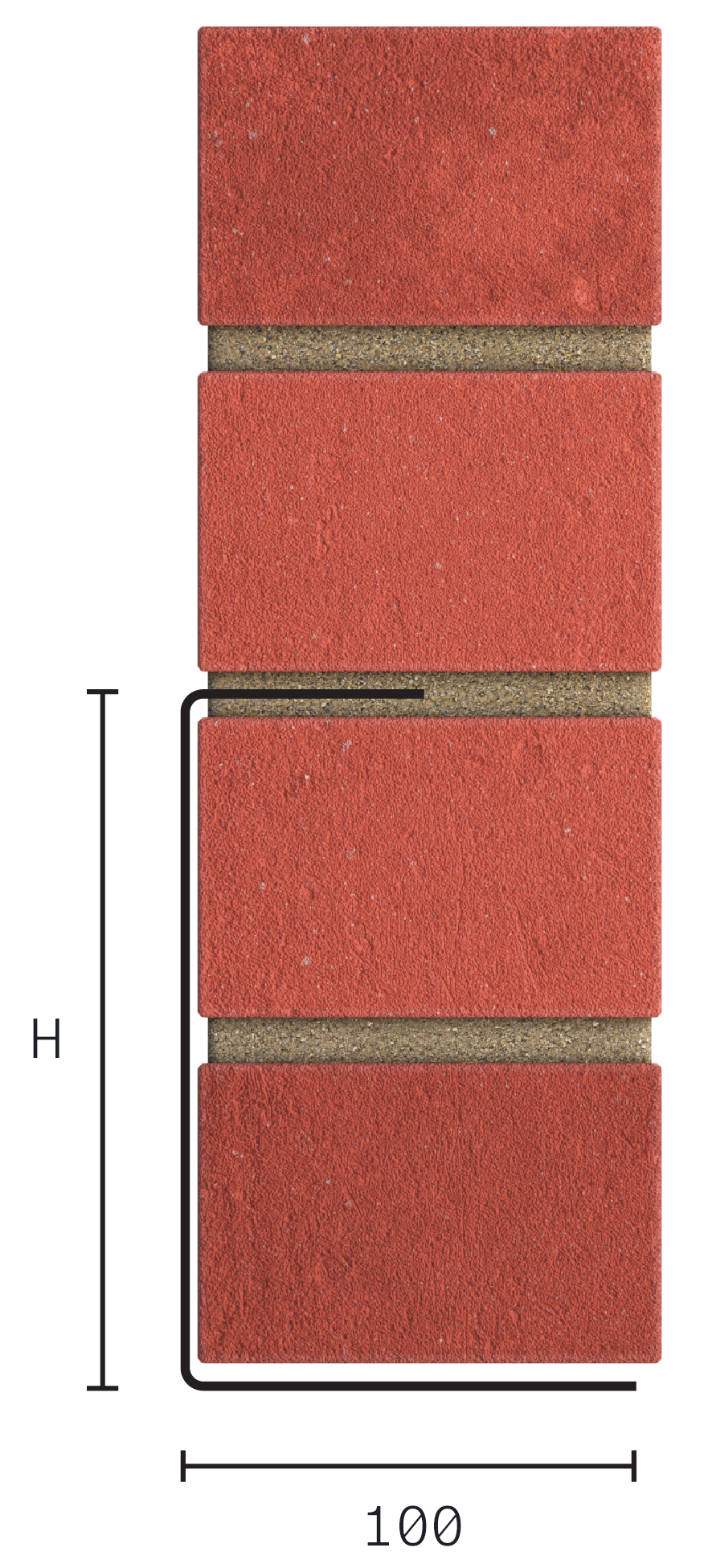

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
CCS0750 750 15 3.53 154
CCS0900 900 15 4.24 154
CCS1050 1050 15 4.95 154
CCS1200 1200 15 5.65 154
CCS1350 1350 15 6.36 154
CCS1500 1500 15 7.07 154
CCS1650 1650 15 7.77 154
CCS1800 1800 15 8.48 154
CCS1950 1950 20 14.27 229
CCS2100 2100 20 15.37 229
CCS2250 2250 20 16.47 229
CCS2400 2400 20 17.57 229
CCS2550 2550 20 18.67 229
CCS2700 2700 20 19.76 229
CCS2850 2850 20 20.86 229
CCS3000 3000 20 21.96 229
CCS3300 3300 20 38.64 229
CCS3600 3600 20 42.16 229
CCS3900 3900 20 45.67 229
CCS4200 4200 20 49.18 229
CCS4575 4575 20 53.57 229
CCS4800 4800 20 56.21 229
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 4800mm (including 4575mm, but excluding 4500mm).
  • CCS lintels should be suitably propped and laterally restrained during construction. To achieve loading figures, lintels must be constructed with brickwork (blockwork) fully built-in as shown.

Features

Standard duty steel lintel for use in masonry construction for internal load bearing 100mm walls. Offers a cost effective solution for light duty loads, and suitable for masonry and timber floor loads. Manufactured from galvanised steel with Catnic's signature black powder coating.
  • Duplex Corrosion Protection
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

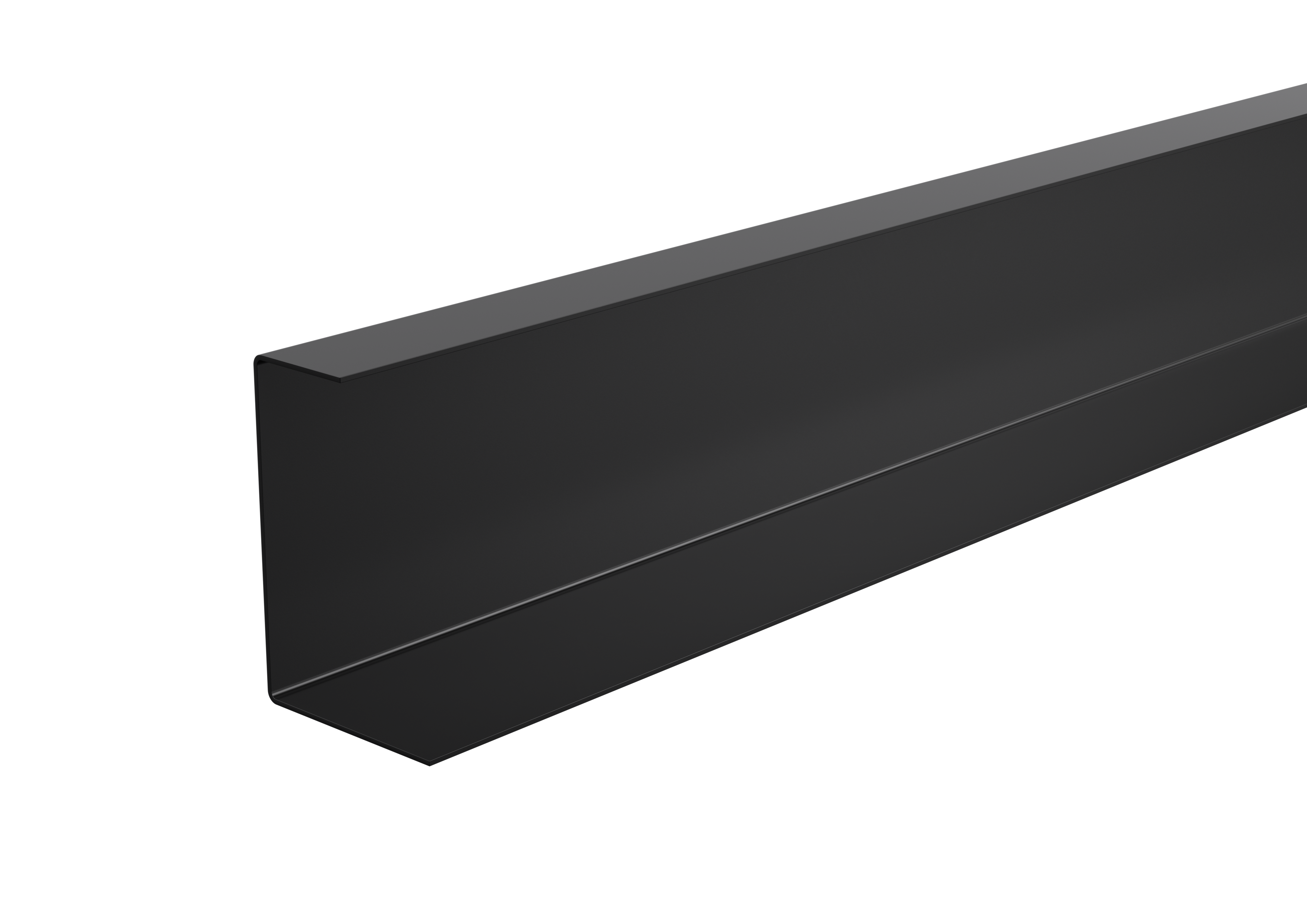

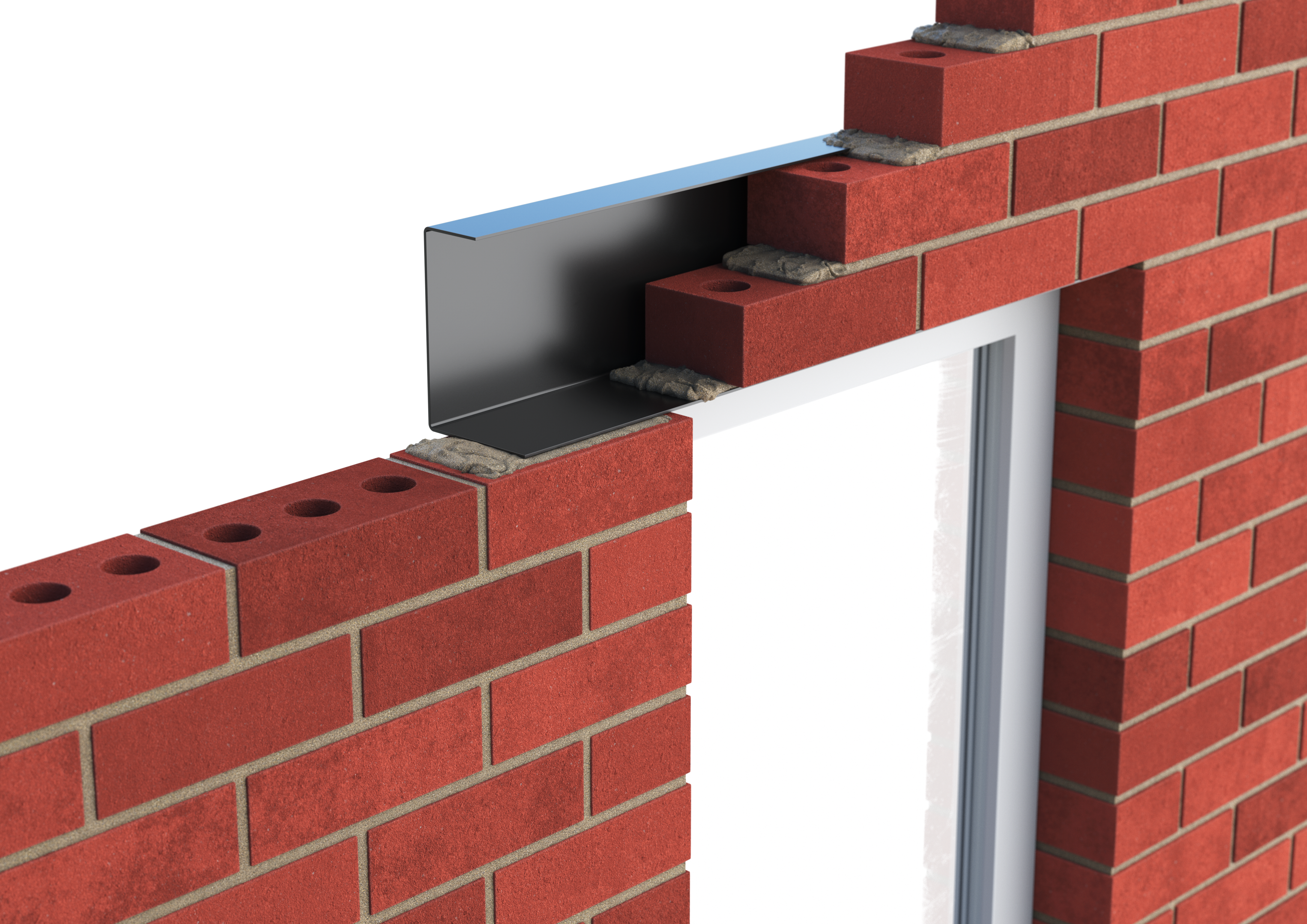

Catnic standard duty channel lintel shown in 102mm exterior solid wall
  • Built-in Damp Proof Course (DPC) Profile

    Many Catnic lintels offer a unique profile shape that combine with the unique Duplex Corrosion Protection or stainless steel to create an effective barrier that acts as a built-in DPC, meaning any water penetrating into the cavity automatically transfers across the sloping face of the lintel and is disposed of externally.

  • Integral Plaster Key

    Many Catnic lintels come complete with an integral plaster key that avoid the hazards of working with a mesh key.
