CBP150/100

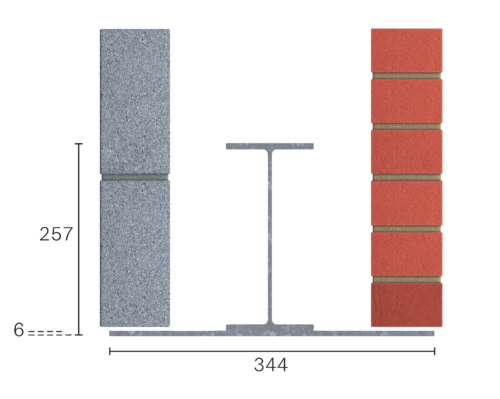

![Catnic extreme duty cavity wall lintels for 150mm cavity 2D profile](/assets/content/products/Lintel-images/Lintel-2D-product-files/_w1000/40938/CATNIC_CBP150_100_T304_LINTEL_2D.webp)
Overview
Product Information
- Wall Construction
- Cavity Wall
- Outer Leaf
- 100-102
- Cavity
- 150-165
- Inner Leaf
- 100
- Wall Width
- Loading Conditions
- Extreme Load
Specification
Product Code | Standard Length (mm) | SWL (kN) 1:1/3:1 | Weight (kg) | Nominal Height (mm) | |
---|---|---|---|---|---|
CBP150/1002100 | 2100 | 88 | 86.94 | 263 | |
CBP150/1002350 | 2350 | 88 | 97.29 | 263 | |
CBP150/1002550 | 2550 | 88 | 105.57 | 263 | |
CBP150/1002700 | 2700 | 88 | 111.78 | 263 | |
CBP150/1002800 | 2800 | 88 | 115.92 | 263 | |
CBP150/1002900 | 2900 | 88 | 120.06 | 263 | |
CBP150/1003050 | 3050 | 79 | 126.27 | 263 | |
CBP150/1003100 | 3100 | 79 | 128.34 | 263 | |
CBP150/1003150 | 3150 | 79 | 130.41 | 263 | |
CBP150/1003300 | 3300 | 79 | 136.62 | 263 | |
CBP150/1003400 | 3400 | 79 | 140.76 | 263 | |
CBP150/1003450 | 3450 | 79 | 142.83 | 263 | |
CBP150/1003500 | 3500 | 79 | 144.90 | 263 | |
CBP150/1003550 | 3550 | 79 | 146.97 | 263 | |
CBP150/1003600 | 3600 | 79 | 149.04 | 263 | |
CBP150/1003700 | 3700 | 79 | 153.18 | 263 | |
CBP150/1003750 | 3750 | 79 | 155.25 | 263 | |
CBP150/1003800 | 3800 | 79 | 157.32 | 263 | |
CBP150/1003900 | 3900 | 79 | 161.46 | 263 | |
CBP150/1003950 | 3950 | 79 | 163.53 | 263 | |
CBP150/1004000 | 4000 | 79 | 184.00 | 263 | |
CBP150/1004050 | 4050 | 79 | 186.30 | 263 | |
CBP150/1004150 | 4150 | 79 | 171.81 | 263 | |
CBP150/1004600 | 4600 | 79 | 190.44 | 263 | |
CBP150/1005400 | 5400 | 70 | 223.56 | 263 | |
CBP150/1005750 | 5750 | 63 | 238.05 | 263 |
- The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
- Standard lengths are available in increments of 50mm at lengths up to 6600mm.
Features
Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised
- Hot Dip Galvanised
- Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
- Made using lower carbon manufacturing
- It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
