Extreme Load Steel Lintel

CBP110/100

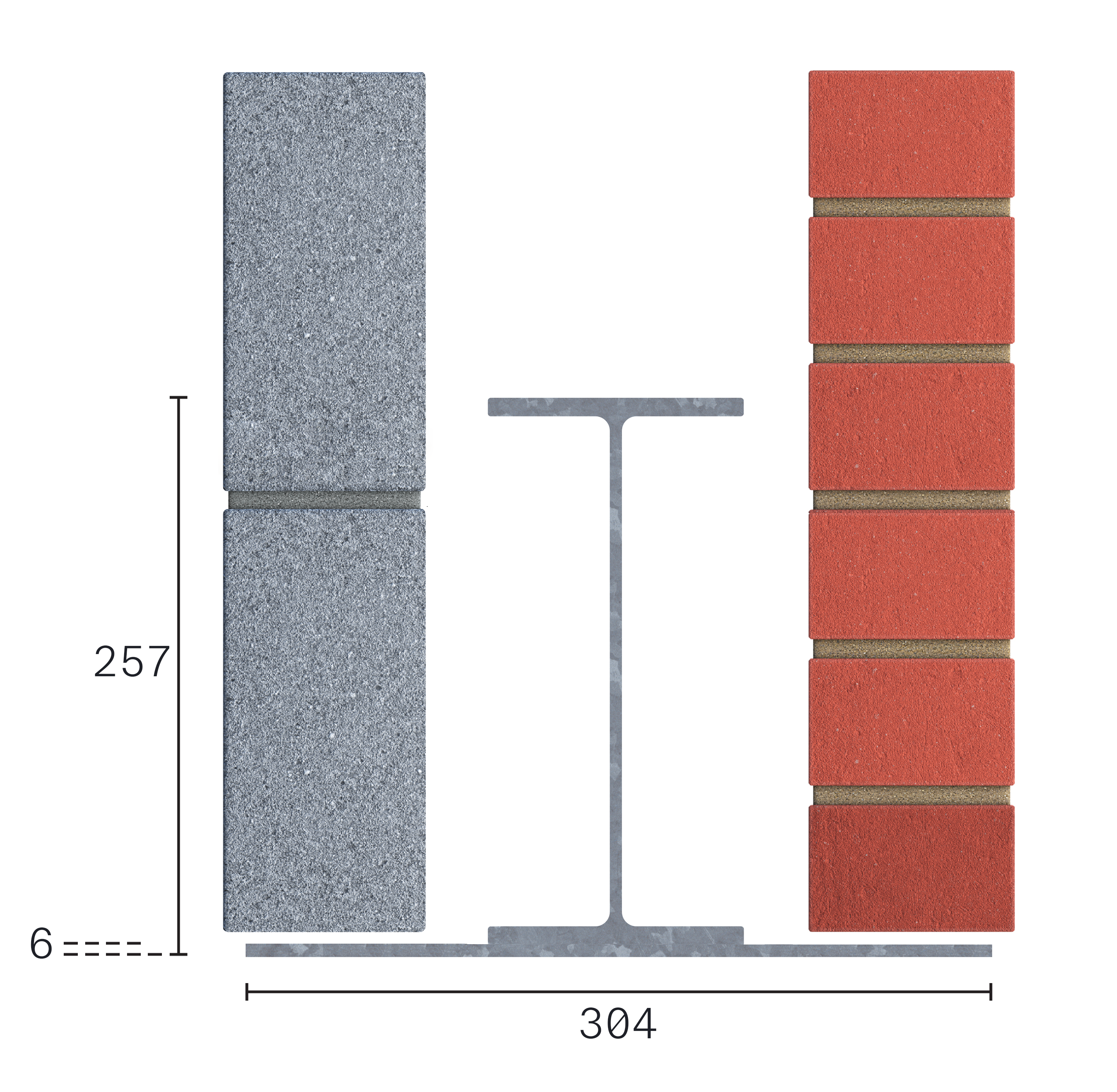

Catnic extreme duty cavity wall lintels for 110mm cavity 2D profile

Overview

Product Information

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
110-125
Inner Leaf
100
Wall Width
Loading Conditions
Extreme Load

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/3:1 Weight (kg) Nominal Height (mm)
CBP110/1002850 2850 88 112.63 263
CBP110/1002950 2950 88 116.58 263
CBP110/1003000 3000 88 118.56 263
CBP110/1003100 3100 79 122.51 263
CBP110/1003250 3250 79 128.44 263
CBP110/1003300 3300 79 130.41 263
CBP110/1003350 3350 79 132.39 263
CBP110/1003400 3400 79 134.37 263
CBP110/1003450 3450 79 136.29 263
CBP110/1003500 3500 79 138.32 263
CBP110/1003600 3600 79 142.27 263
CBP110/1003700 3700 79 146.22 263
CBP110/1003750 3750 79 148.20 263
CBP110/1003900 3900 79 154.13 263
CBP110/1003950 3950 79 156.11 263
CBP110/1004000 4000 79 158.08 263
CBP110/1004100 4100 79 162.03 263
CBP110/1004150 4150 79 164.00 263
CBP110/1004200 4200 79 165.98 263
CBP110/1004250 4250 79 167.96 263
CBP110/1004400 4400 79 173.88 263
CBP110/1004500 4500 79 177.83 263
CBP110/1004600 4600 79 181.79 263
CBP110/1004650 4650 79 183.76 263
CBP110/1004850 4850 74 191.59 263
CBP110/1005400 5400 70 213.41 263
CBP110/1005500 5500 66 217.27 263
CBP110/1005700 5700 66 225.17 263
CBP110/1006000 6000 63 237.02 263
CBP110/1006300 6300 60 248.98 263
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 50mm at lengths up to 6600mm.

Features

Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised
  • Hot Dip Galvanised
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
  • Galvanised steel
