Extreme Load Steel Lintel

CBP100/100

Overview

Product Information

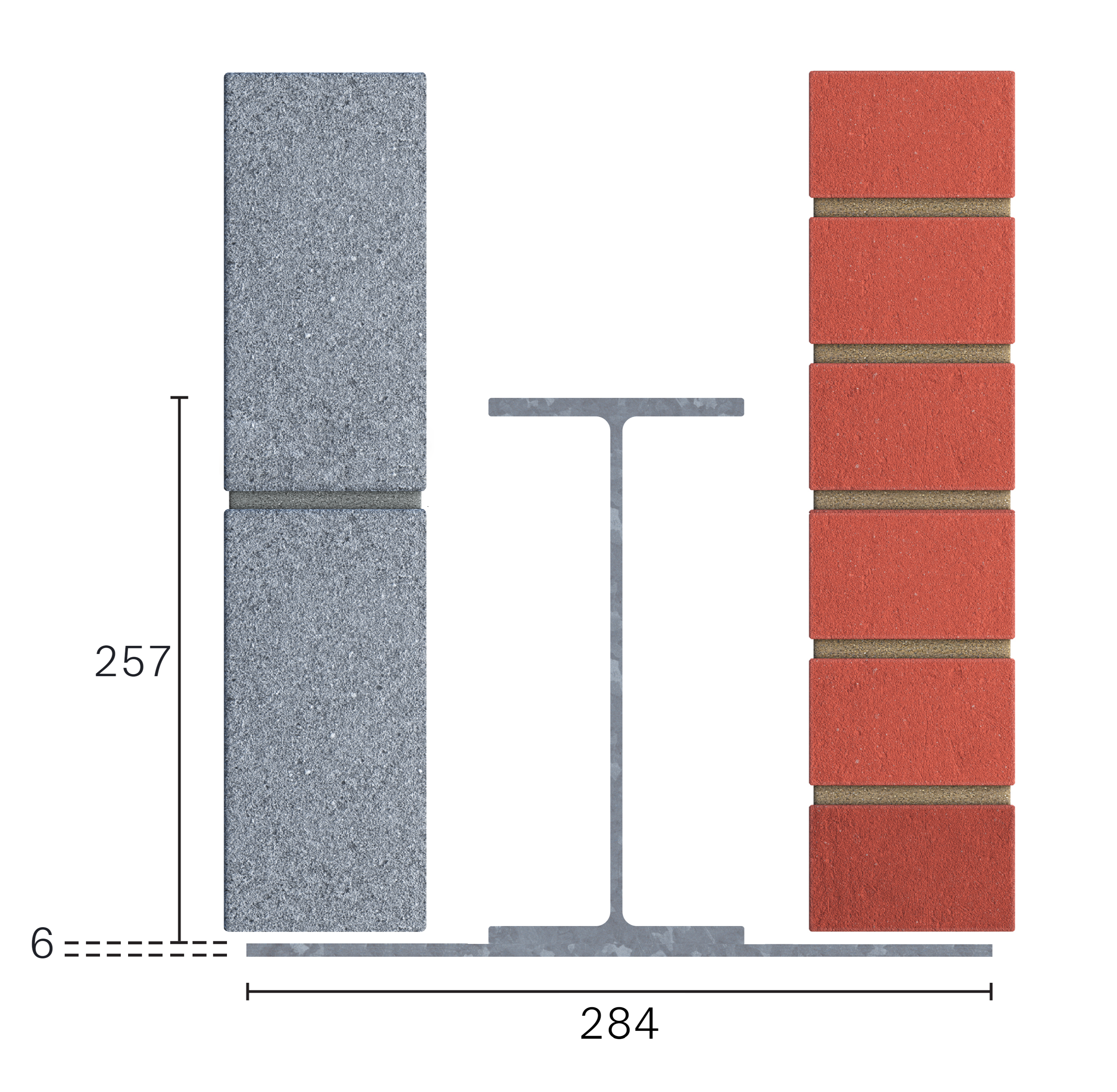

Wall Construction
Cavity Wall
Outer Leaf
100-102
Cavity
100-105
Inner Leaf
100
Wall Width
Loading Conditions
Extreme Load

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) 1:1/3:1 Weight (kg) Nominal Height (mm)
CBP100/1002100 2100 88 81.02 263
CBP100/1002200 2200 88 84.88 263
CBP100/1002350 2350 88 90.66 263
CBP100/1002650 2650 88 102.24 263
CBP100/1002700 2700 88 104.17 263
CBP100/1002750 2750 88 106.09 263
CBP100/1002800 2800 88 108.02 263
CBP100/1002850 2850 88 109.95 263
CBP100/1002900 2900 88 111.88 263
CBP100/1003000 3000 88 115.74 263
CBP100/1003050 3050 79 117.67 263
CBP100/1003150 3150 79 121.53 263
CBP100/1003200 3200 79 123.46 263
CBP100/1003300 3300 79 127.32 263
CBP100/1003350 3350 79 129.24 263
CBP100/1003400 3400 79 131.72 263
CBP100/1003450 3450 79 133.10 263
CBP100/1003500 3500 79 135.03 263
CBP100/1003550 3550 79 136.96 263
CBP100/1003600 3600 79 138.89 263
CBP100/1003700 3700 79 142.75 263
CBP100/1003800 3800 79 146.60 263
CBP100/1003900 3900 79 150.46 263
CBP100/1004000 4000 79 154.32 263
CBP100/1004050 4050 79 156.25 263
CBP100/1004100 4100 79 158.18 263
CBP100/1004150 4150 79 160.11 263
CBP100/1004200 4200 79 162.04 263
CBP100/1004250 4250 79 163.97 263
CBP100/1004350 4350 79 167.82 263
CBP100/1004400 4400 79 169.75 263
CBP100/1004500 4500 79 173.61 263
CBP100/1004600 4600 79 177.47 263
CBP100/1004650 4650 79 179.40 263
CBP100/1004800 4800 79 185.18 263
CBP100/1004900 4900 74 189.04 263
CBP100/1004950 4950 74 190.67 263
CBP100/1005050 5050 74 194.82 263
CBP100/1005200 5200 70 200.62 263
CBP100/1005250 5250 70 202.55 263
CBP100/1005400 5400 70 208.33 263
CBP100/1005600 5600 66 216.04 263
CBP100/1005700 5700 66 219.90 263
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 50mm at lengths up to 6600mm.

Features

Extreme duty steel lintel for use in masonry cavity wall construction, designed to support extreme loads or to be used at long spans in external cavity walls. Non insulated with option for expanded metal mesh secured to the base plate, manufactured from structural steel then post galvanised
  • Hot Dip Galvanised
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
  • Galvanised steel
