Standard Duty Steel Lintel

BSD100

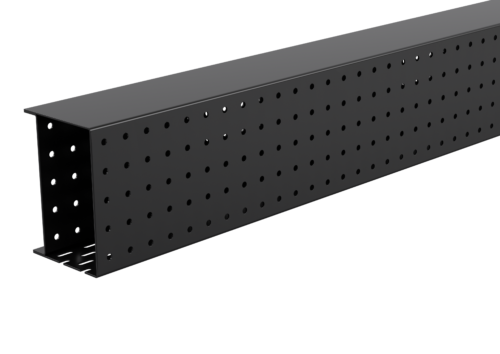

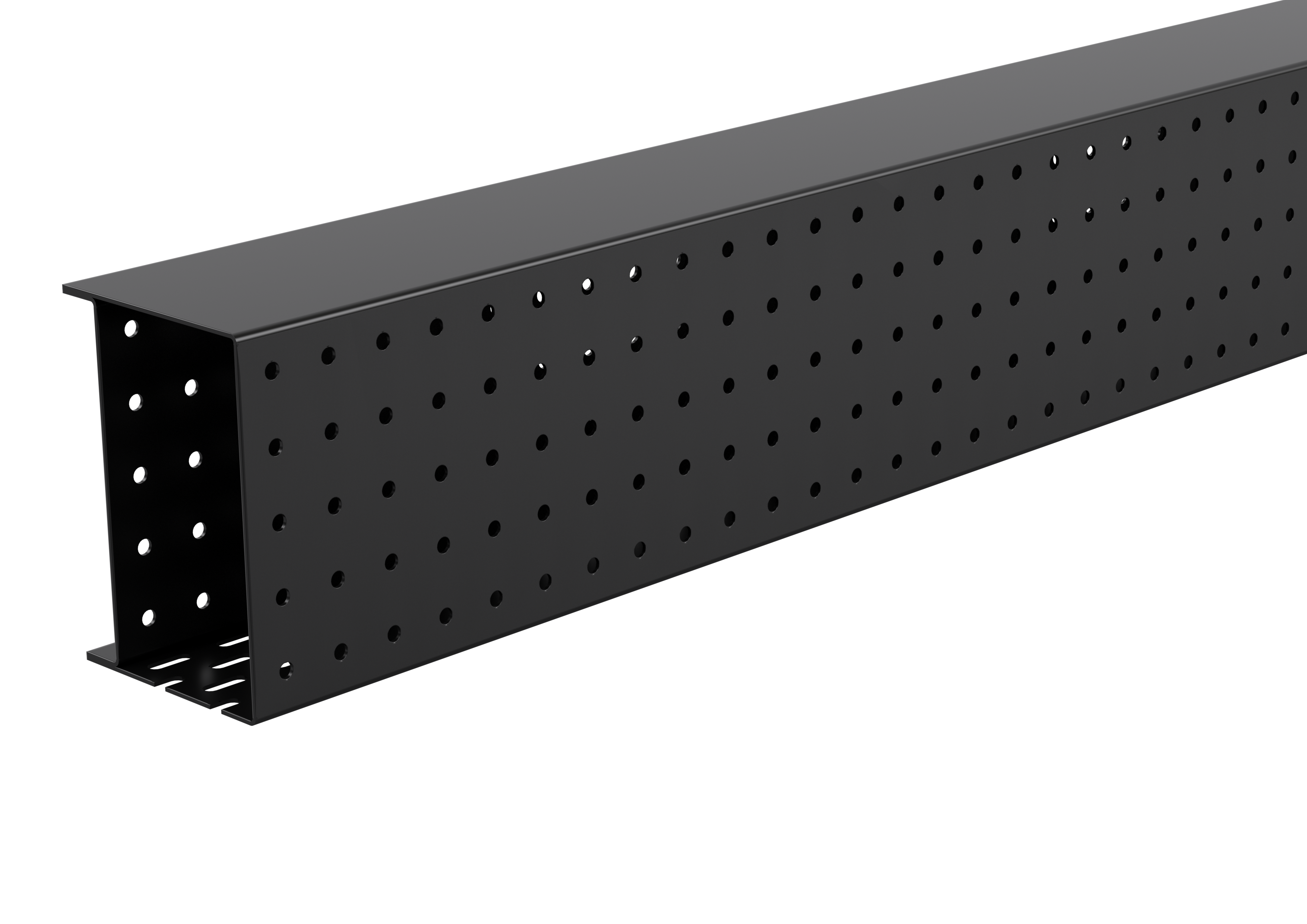

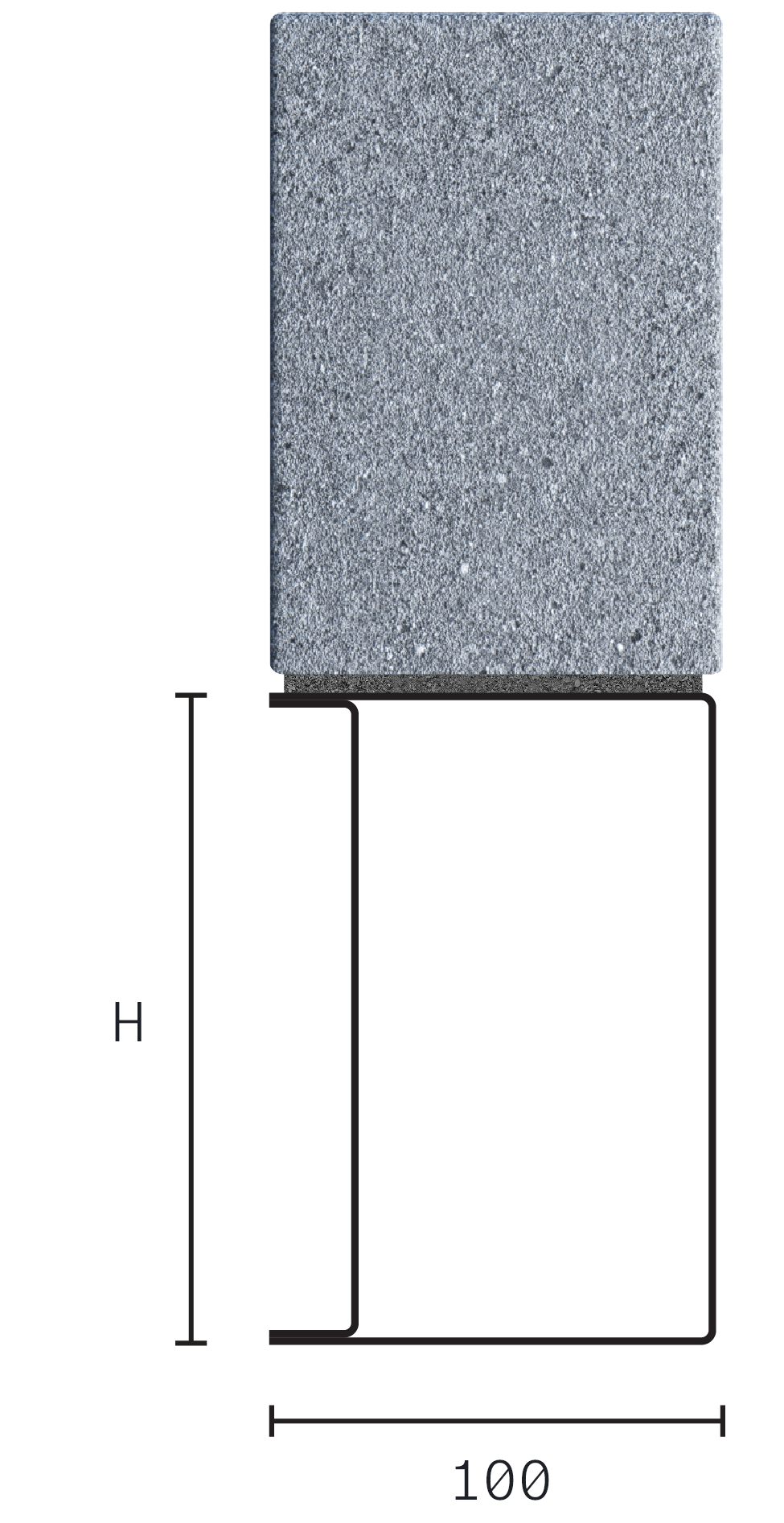

CATNIC BSD100 box lintel

Overview

Product Information

Wall Construction
Internal Wall
Outer Leaf
N/A
Cavity
N/A
Inner Leaf
100
Wall Width
100
Loading Conditions
Standard

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
BSD1000750 750 19 4.48 143
BSD1000900 900 19 5.37 143 Buy Now
BSD1001050 1050 19 6.27 143
BSD1001200 1200 19 7.16 143 Buy Now
BSD1001350 1350 19 8.06 143 Buy Now
BSD1001500 1500 19 8.96 143 Buy Now
BSD1001650 1650 19 9.85 143
BSD1001800 1800 19 10.75 143 Buy Now
BSD1001950 1950 19 11.64 143
BSD1002100 2100 19 12.54 143 Buy Now
BSD1002250 2250 20 16.79 143
BSD1002400 2400 20 17.90 143 Buy Now
BSD1002550 2550 20 19.02 143
BSD1002700 2700 20 20.14 143 Buy Now
BSD1002850 2850 29 35.34 219
BSD1003000 3000 29 37.20 219 Buy Now
BSD1003300 3300 29 40.92 219
BSD1003600 3600 29 44.64 219 Buy Now
BSD1003900 3900 29 61.23 219
BSD1004200 4200 29 65.94 219
BSD1004575 4575 29 71.83 219
BSD1004800 4800 27 75.36 219
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 4800mm (including 4575mm, but excluding 4500mm).

Features

Steel lintel for use in masonry construction for internal load bearing walls 100mm and 140mm. Universal application caters for all loading condition, including direct floor or roof load, concrete floor and point loads. Manufactured from galvanised steel with Catnic's signature black powder coating.
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

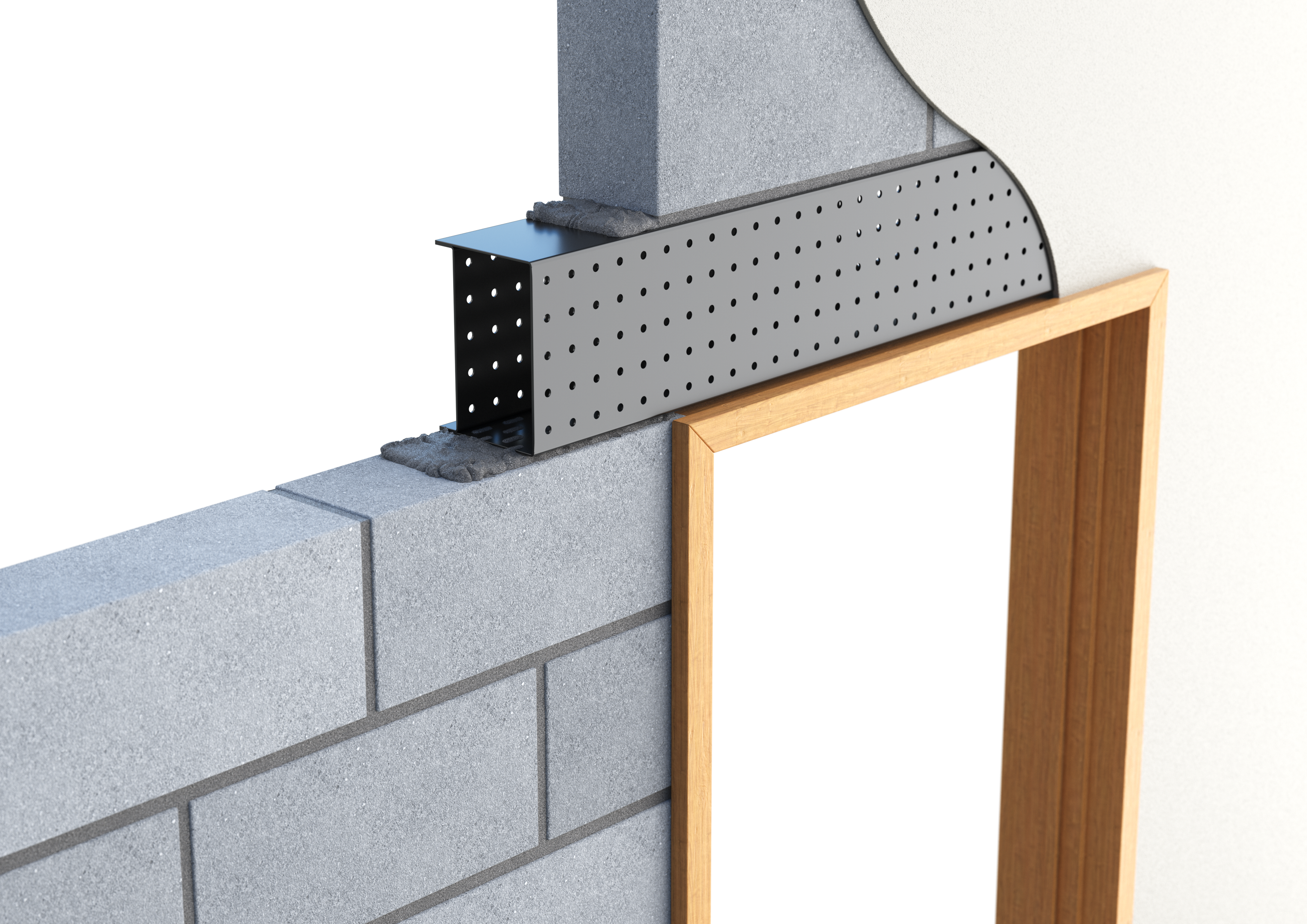

Catnic standard duty box lintel for 100mm interior solid wall shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.
