Heavy Duty Steel Lintel

BHD140

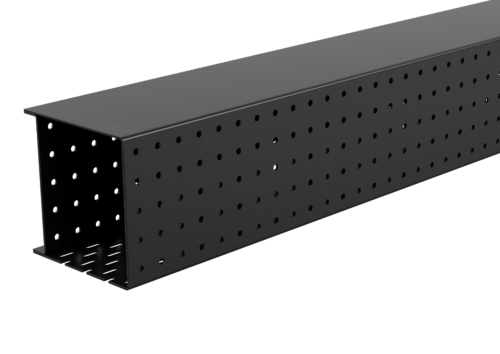

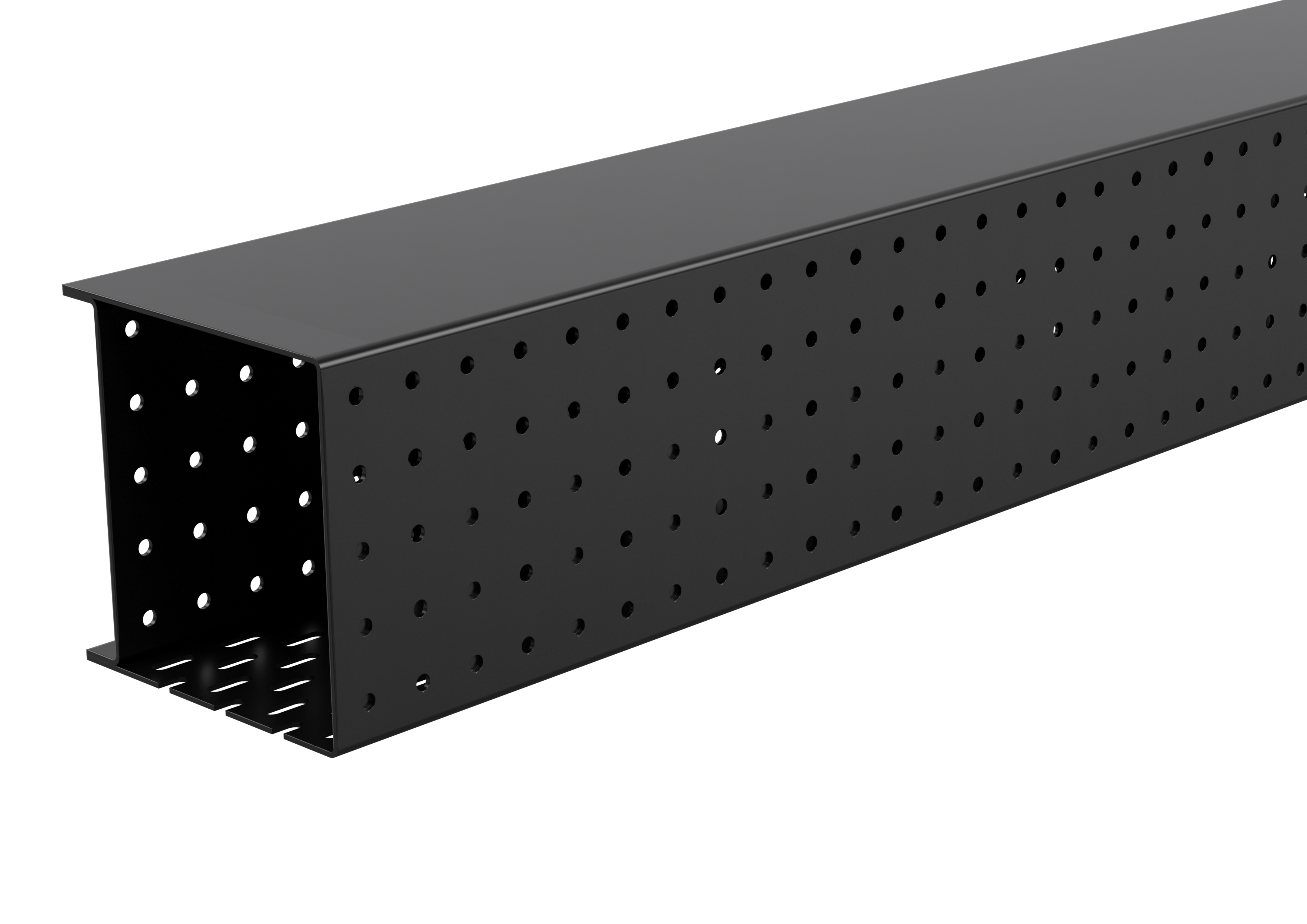

Catnic heavy duty box lintel for 140mm interior solid wall

Overview

Product Information

Wall Construction
Internal Wall
Outer Leaf
N/A
Cavity
N/A
Inner Leaf
140
Wall Width
140
Loading Conditions
Heavy

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
BHD1401050 1050 29 9.08 143
BHD1401200 1200 29 10.38 143
BHD1401350 1350 29 11.68 143
BHD1401500 1500 29 12.98 143
BHD1401650 1650 39 17.99 143
BHD1401800 1800 39 19.62 143
BHD1401950 1950 39 21.26 143
BHD1402100 2100 39 22.89 143
BHD1402250 2250 39 29.36 219
BHD1402400 2400 39 31.32 219
BHD1402550 2550 39 33.28 219
BHD1402700 2700 39 35.24 219
BHD1402850 2850 51 46.11 219
BHD1403000 3000 51 48.54 219
BHD1403300 3300 51 53.39 219
BHD1403600 3600 51 58.25 219
BHD1403900 3900 51 83.85 295
BHD1404200 4200 51 90.30 295
BHD1404575 4575 51 98.36 295
BHD1404800 4800 51 103.20 295
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 4800mm (including 4575mm, but excluding 4500mm).

Features

Steel lintel for use in masonry construction for internal load bearing walls 100mm and 140mm. Universal application caters for all loading condition, including direct floor or roof load, concrete floor and point loads. Manufactured from galvanised steel with Catnic's signature black powder coating.
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

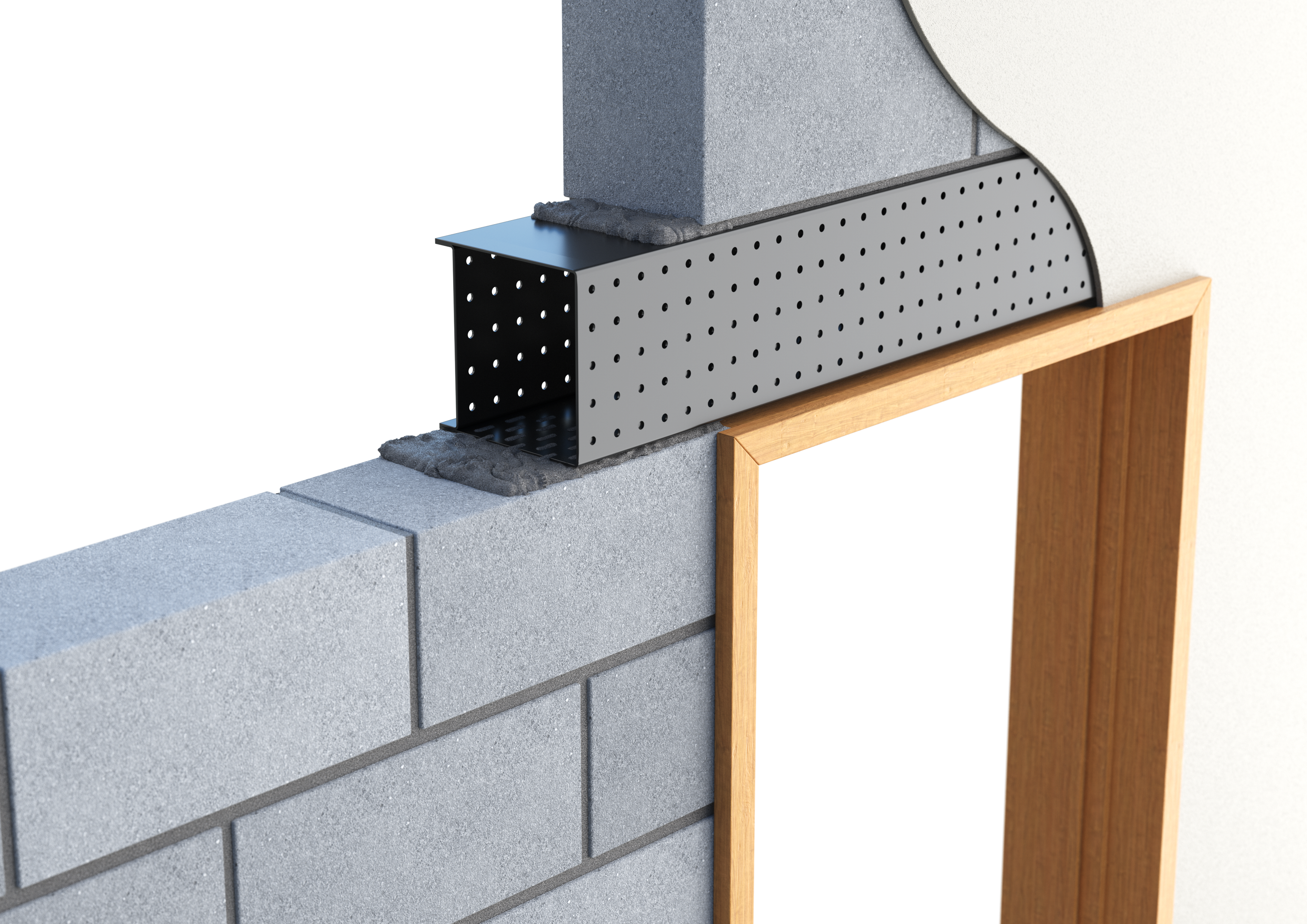

Catnic heavy duty box lintel for 140mm interior solid wall shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.
