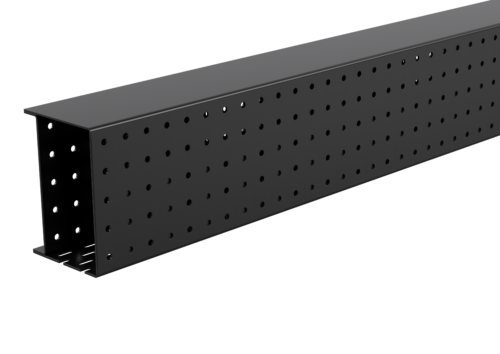

Heavy Duty Steel Lintel

BHD100

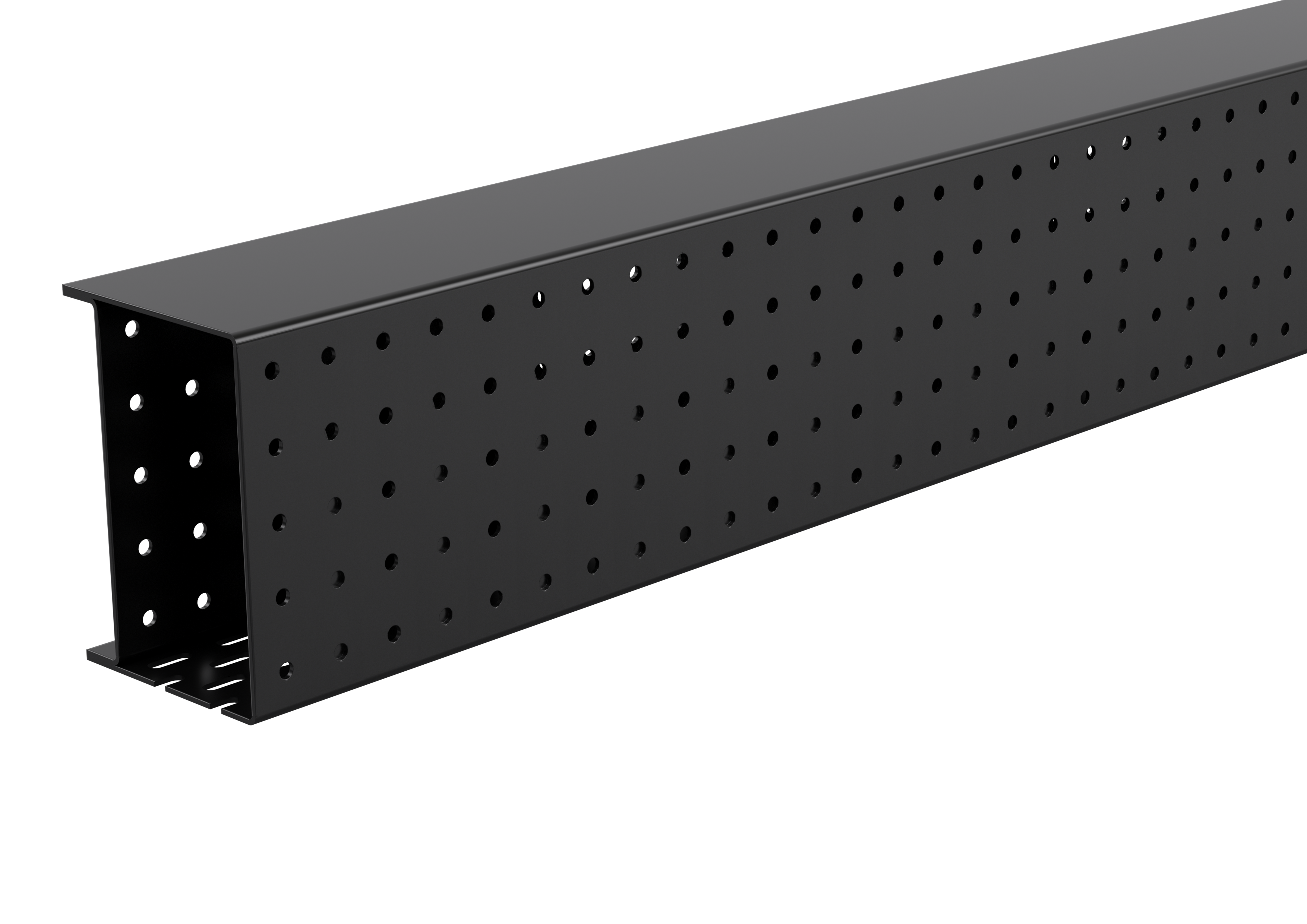

Catnic heavy duty box lintel for 100mm interior solid wall

Overview

Product Information

Wall Construction
Internal Wall
Outer Leaf
N/A
Cavity
N/A
Inner Leaf
100
Wall Width
100
Loading Conditions
Heavy

Downloads

Specification

Product Code Standard Length (mm) SWL (kN) Weight (kg) Nominal Height (mm)
BHD1000750 750 29 5.60 143
BHD1000900 900 29 6.71 143
BHD1001050 1050 29 7.83 143
BHD1001200 1200 29 8.95 143 Buy Now
BHD1001350 1350 29 10.07 143
BHD1001500 1500 29 11.19 143 Buy Now
BHD1001650 1650 39 15.51 143
BHD1001800 1800 39 16.92 143
BHD1001950 1950 39 18.33 143
BHD1002100 2100 39 19.74 143 Buy Now
BHD1002250 2250 39 27.90 219
BHD1002400 2400 39 29.76 219
BHD1002550 2550 39 31.62 219
BHD1002700 2700 39 33.48 219
BHD1002850 2850 51 44.75 219
BHD1003000 3000 51 47.10 219
BHD1003300 3300 51 51.81 219
BHD1003600 3600 51 56.52 219
BHD1003900 3900 51 73.91 295
BHD1004200 4200 51 79.59 295
BHD1004575 4575 51 86.70 295
BHD1004800 4800 51 90.96 295
  • The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
  • Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm to 4800mm (including 4575mm, but excluding 4500mm).

Features

Steel lintel for use in masonry construction for internal load bearing walls 100mm and 140mm. Universal application caters for all loading condition, including direct floor or roof load, concrete floor and point loads. Manufactured from galvanised steel with Catnic's signature black powder coating.
  • Duplex Corrosion Protection
  • Integral Plaster Key
  • Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
  • Made using lower carbon manufacturing
  • It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information

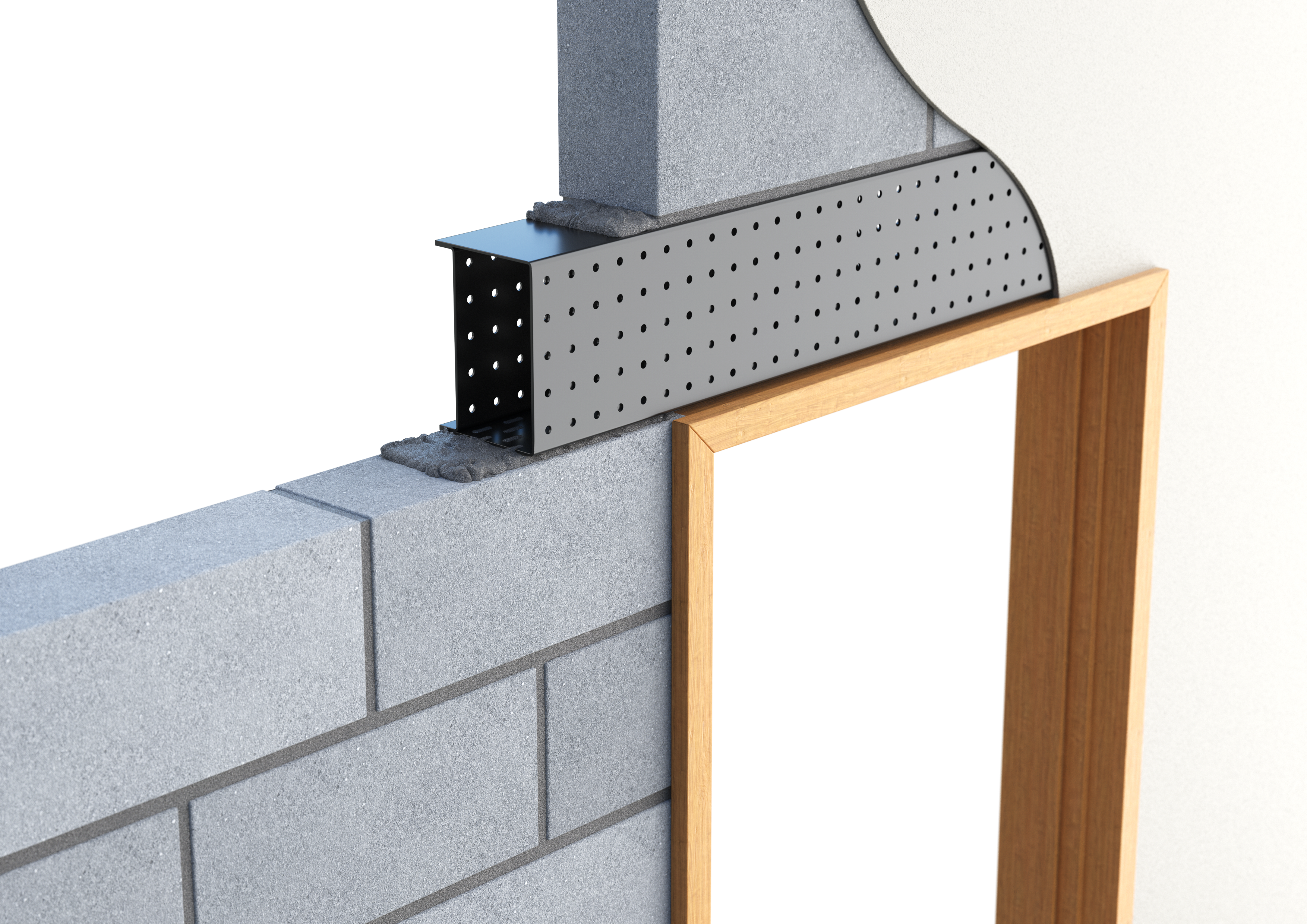

Catnic heavy duty box lintel for 100mm interior solid wall shown in situ
  • Duplex Corrosion Protection

    A coating of thermal setting polyester powder is then applied by an electrostatic process, further protecting the lintel.
