ANG
Overview
Product Information
- Wall Construction
- Single Leaf Wall
- Outer Leaf
- 100-102
- Cavity
- N/A
- Inner Leaf
- N/A
- Wall Width
- 100-102
- Loading Conditions
- Standard
Specification
| Product Code | Standard Length (mm) | SWL (kN) | Weight (kg) | Nominal Height (mm) | |
|---|---|---|---|---|---|
| ANG0900 | 900 | 4 | 2.42 | 88 | |
| ANG1050 | 1050 | 4 | 2.82 | 88 | |
| ANG1200 | 1200 | 4 | 3.23 | 88 | |
| ANG1350 | 1350 | 5 | 4.58 | 131 | |
| ANG1500 | 1500 | 5 | 5.09 | 131 | |
| ANG1650 | 1650 | 7 | 6.53 | 167 | |
| ANG1800 | 1800 | 7 | 7.13 | 167 | |
| ANG1950 | 1950 | 7 | 7.72 | 167 | |
| ANG2100 | 2100 | 7 | 8.32 | 167 | |
| ANG2250 | 2250 | 10 | 10.60 | 215 | |
| ANG2400 | 2400 | 10 | 11.30 | 215 | |
| ANG2550 | 2550 | 15 | 18.54 | 215 | |
| ANG2700 | 2700 | 15 | 19.63 | 215 | |
| ANG2850 | 2850 | 15 | 20.72 | 215 | |
| ANG3000 | 3000 | 15 | 21.81 | 215 | |
| ANG3300 | 3300 | 15 | 30.89 | 213 | |
| ANG3600 | 3600 | 15 | 33.70 | 213 | |
| ANG3900 | 3900 | 15 | 36.50 | 213 |
- The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.
- Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at 3000mm to 3900mm
- ANG lintels should be suitably propped and laterally restrained during construction.
Features

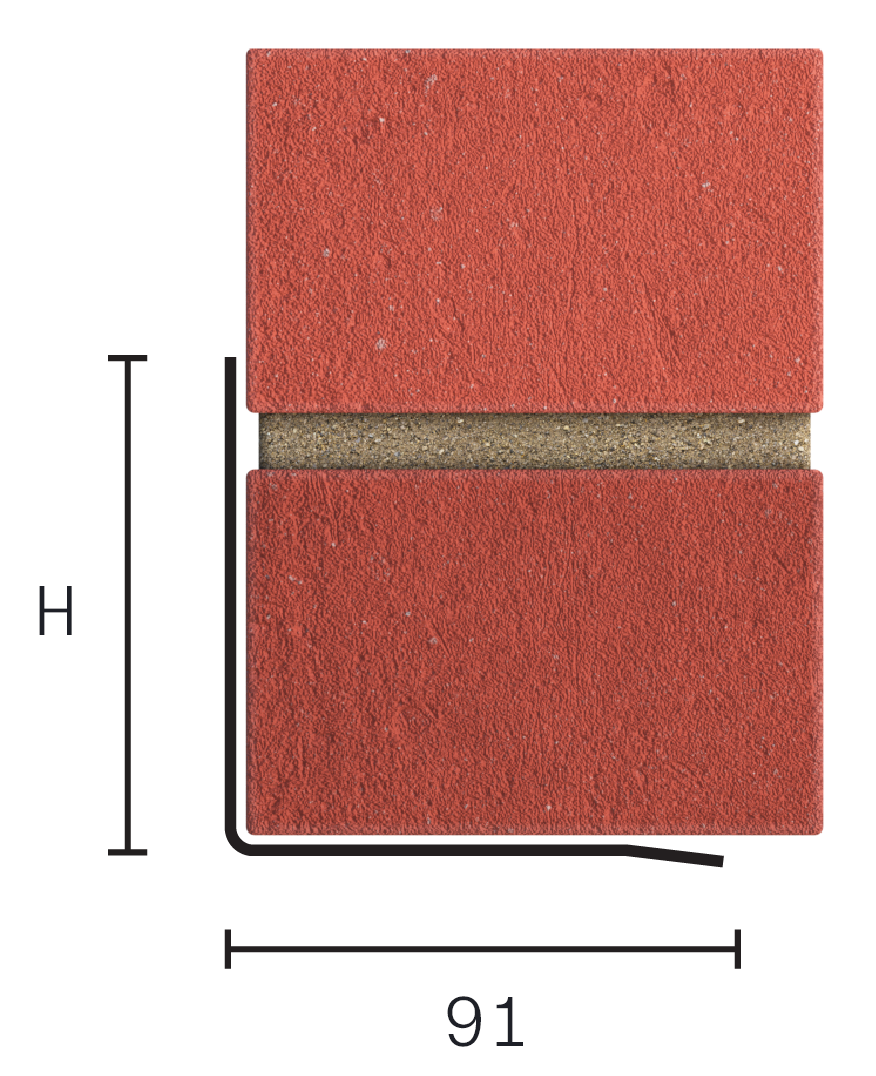

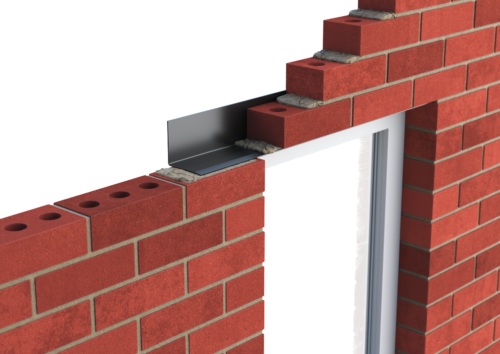

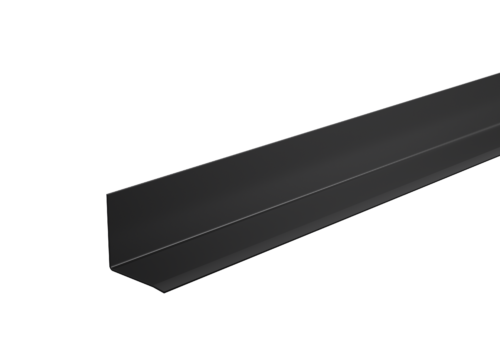

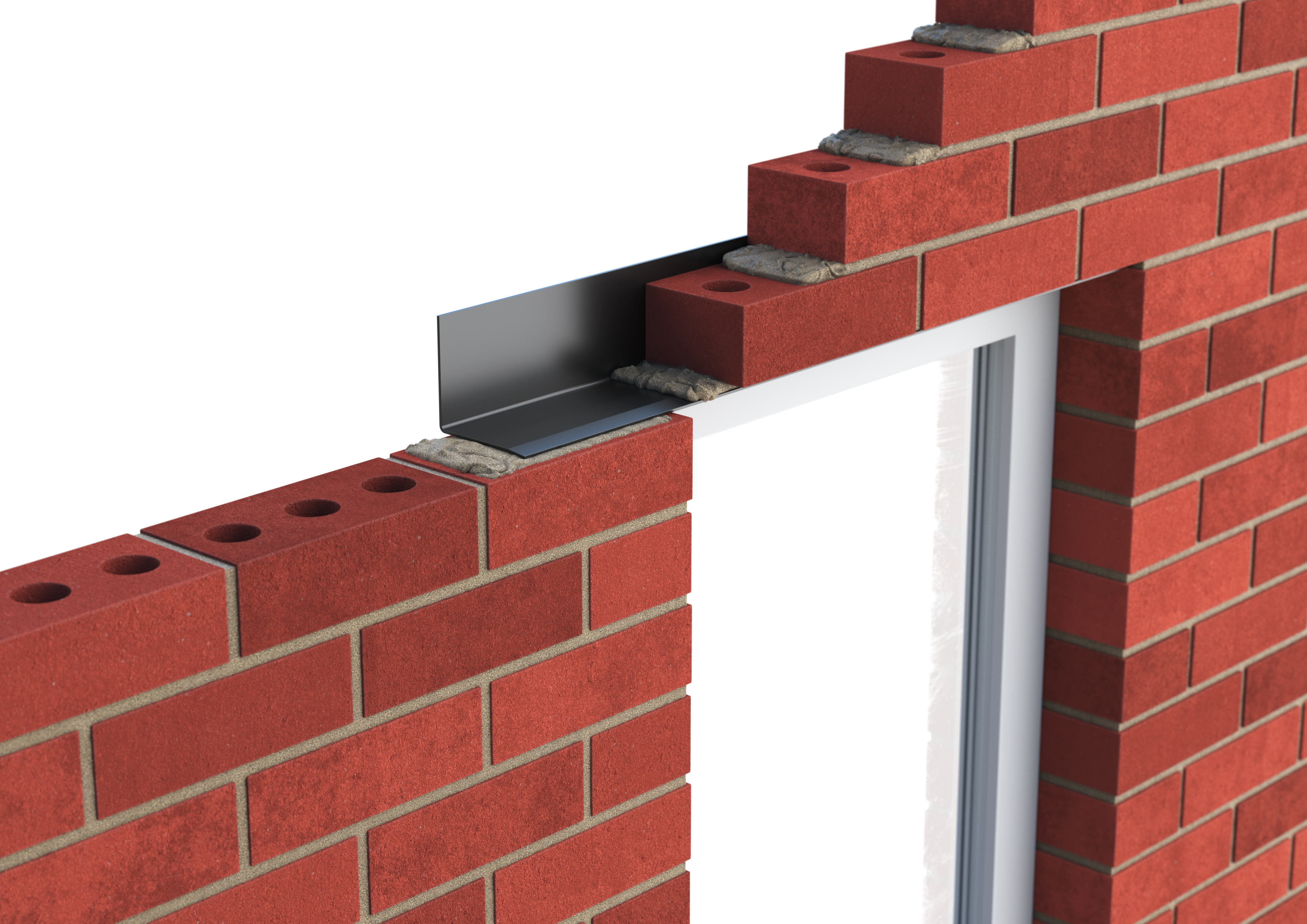

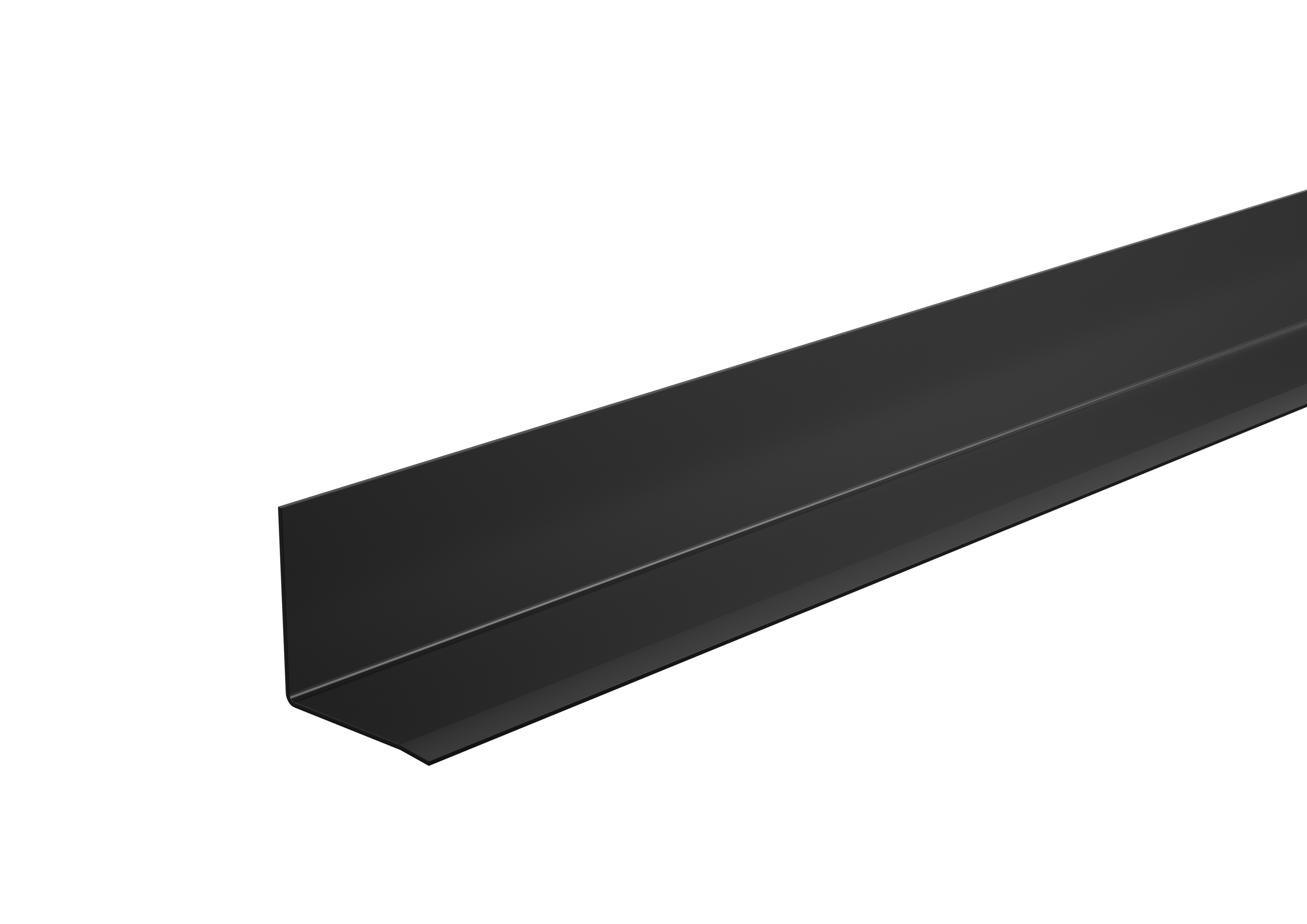

Standard duty steel lintel for use in solid wall construction, designed to support uniform distribution of masonry load. Manufactured from galvanised steel and Catnic's signature black powder coating on ANGs over 2400mm
- Galvanised Steel
- Made in the UK for a lower carbon footprint and certified to BES 6001 Responsible Sourcing standard.
- Made using lower carbon manufacturing
- It is possible to reuse all of our lintels, providing that they are not damaged. Contact our technical team for more information
