ACA
Overview
Product Information
- Wall Construction
- Outer Leaf
- N/A
- Cavity
- N/A
- Inner Leaf
- N/A
- Wall Width
- Loading Conditions
- N/A
Specification
| Product Code | Span (mm) | Rise (mm) | Minimum Opening (mm) | Maximum Opening (mm) | |
|---|---|---|---|---|---|
| ACA0475 | 450 | 75 | 450 | 500 | |
| ACA0525 | 500 | 75 | 500 | 550 | |
| ACA0575 | 550 | 75 | 550 | 600 | |
| ACA0625 | 600 | 75 | 600 | 650 | |
| ACA0675 | 650 | 75 | 650 | 700 | |
| ACA0725 | 700 | 75 | 700 | 750 | |
| ACA0775 | 750 | 75 | 750 | 800 | |
| ACA0825 | 800 | 75 | 800 | 850 | |
| ACA0875 | 850 | 75 | 850 | 900 | |
| ACA0925 | 900 | 75 | 900 | 950 | |
| ACA0975 | 750 | 75 | 750 | 800 | |
| ACA1025 | 1000 | 75 | 1000 | 1050 | |
| ACA1075 | 1050 | 75 | 1050 | 1100 | |
| ACA1125 | 1100 | 75 | 1100 | 1150 | |
| ACA1175 | 1150 | 75 | 1150 | 1200 | |
| ACA1225 | 1200 | 75 | 1200 | 1250 | |
| ACA1275 | 1250 | 75 | 1250 | 1300 | |
| ACA1325 | 1300 | 75 | 1300 | 1350 | |
| ACA1375 | 1350 | 75 | 1350 | 1400 | |
| ACA1425 | 1400 | 75 | 1400 | 1450 | |
| ACA1475 | 1450 | 75 | 1450 | 1500 | |
| ACA1525 | 1500 | 75 | 1500 | 1550 | |
| ACA1575 | 1550 | 75 | 1550 | 1600 | |
| ACA1625 | 1600 | 75 | 1600 | 1650 | |
| ACA1675 | 1650 | 75 | 1650 | 1700 | |
| ACA1725 | 1700 | 75 | 1700 | 1750 | |
| ACA1775 | 1750 | 75 | 1750 | 1800 | |
| ACA1825 | 1800 | 75 | 1800 | 1850 | |
| ACA1875 | 1850 | 75 | 1850 | 1900 | |
| ACA1925 | 1900 | 75 | 1900 | 1950 | |
| ACA2025 | 2000 | 75 | 2000 | 2050 | |
| ACA2075 | 2050 | 75 | 2050 | 2100 | |
| ACA1975 | 1950 | 75 | 1950 | 2000 | |
| ACA2125 | 2100 | 75 | 2100 | 2150 | |
| ACA2175 | 2150 | 75 | 2150 | 2200 | |
| ACA2225 | 2200 | 75 | 2200 | 2250 | |
| ACA2275 | 2250 | 75 | 2250 | 2300 | |
| ACA2325 | 2300 | 75 | 2300 | 2350 | |
| ACA2375 | 2350 | 75 | 2350 | 2400 | |
| ACA2425 | 2400 | 75 | 2400 | 2450 | |
| ACA2475 | 2450 | 75 | 2450 | 2500 | |
| ACA2525 | 2500 | 75 | 2500 | 2550 | |
| ACA2575 | 2550 | 75 | 2550 | 2600 | |
| ACA2625 | 2600 | 75 | 2600 | 2650 | |
| ACA2675 | 2650 | 75 | 2650 | 2700 | |
| ACA2725 | 2700 | 75 | 2700 | 2750 | |
| ACA2775 | 2750 | 75 | 2750 | 2800 | |
| ACA2825 | 2800 | 75 | 2800 | 2850 | |
| ACA2875 | 2850 | 75 | 2850 | 2900 | |
| ACA2925 | 2900 | 75 | 2900 | 2950 | |
| ACA2975 | 2950 | 75 | 2950 | 3000 | |
| ACA3025 | 3000 | 75 | 3000 | 3050 | |
| ACA3075 | 3050 | 75 | 3050 | 3100 | |
| ACA3125 | 3100 | 75 | 3100 | 3150 | |
| ACA3175 | 3150 | 75 | 3150 | 3200 |
Features

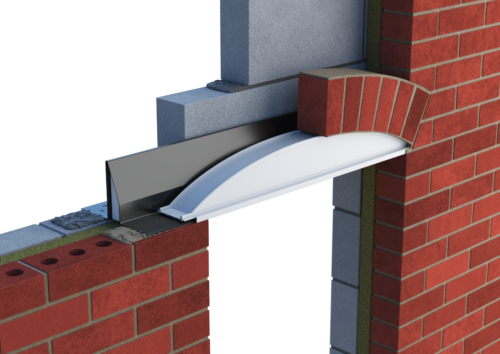

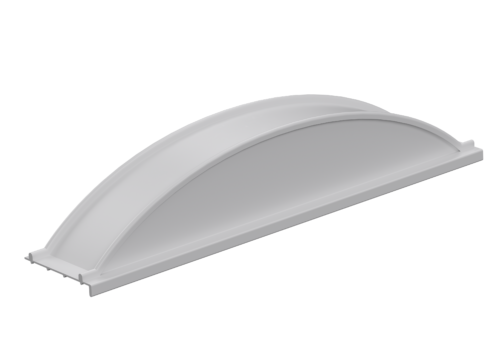

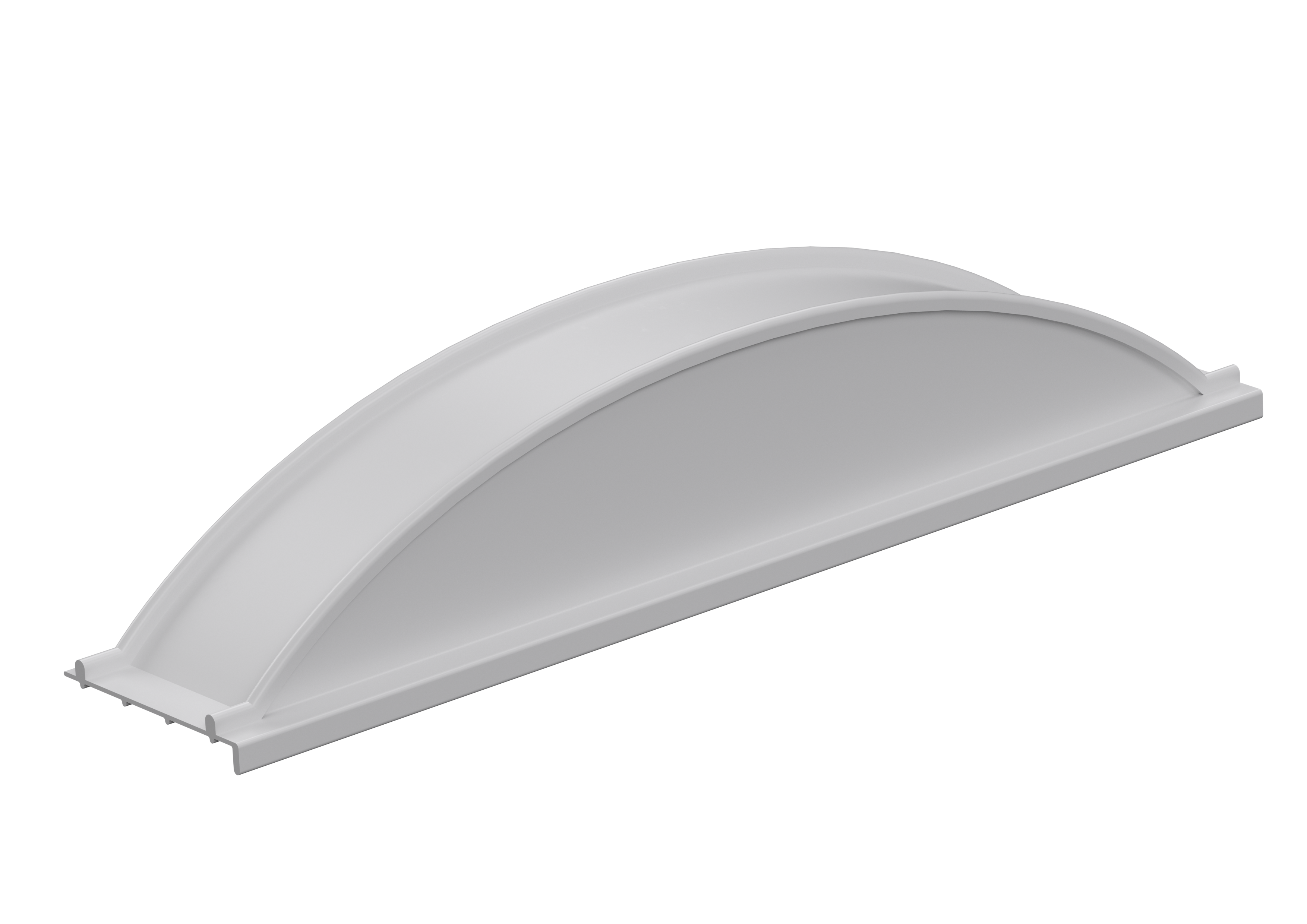

PVC-u arch unit for use over openings in external cavity walls with masonry or timber frame construction, providing permanent centring for brick arch construction. Allows easy construction of segmental arches and includes integral weep vent.
