Light Duty Galvanised Steel Restraint Strap

SV1200/B100

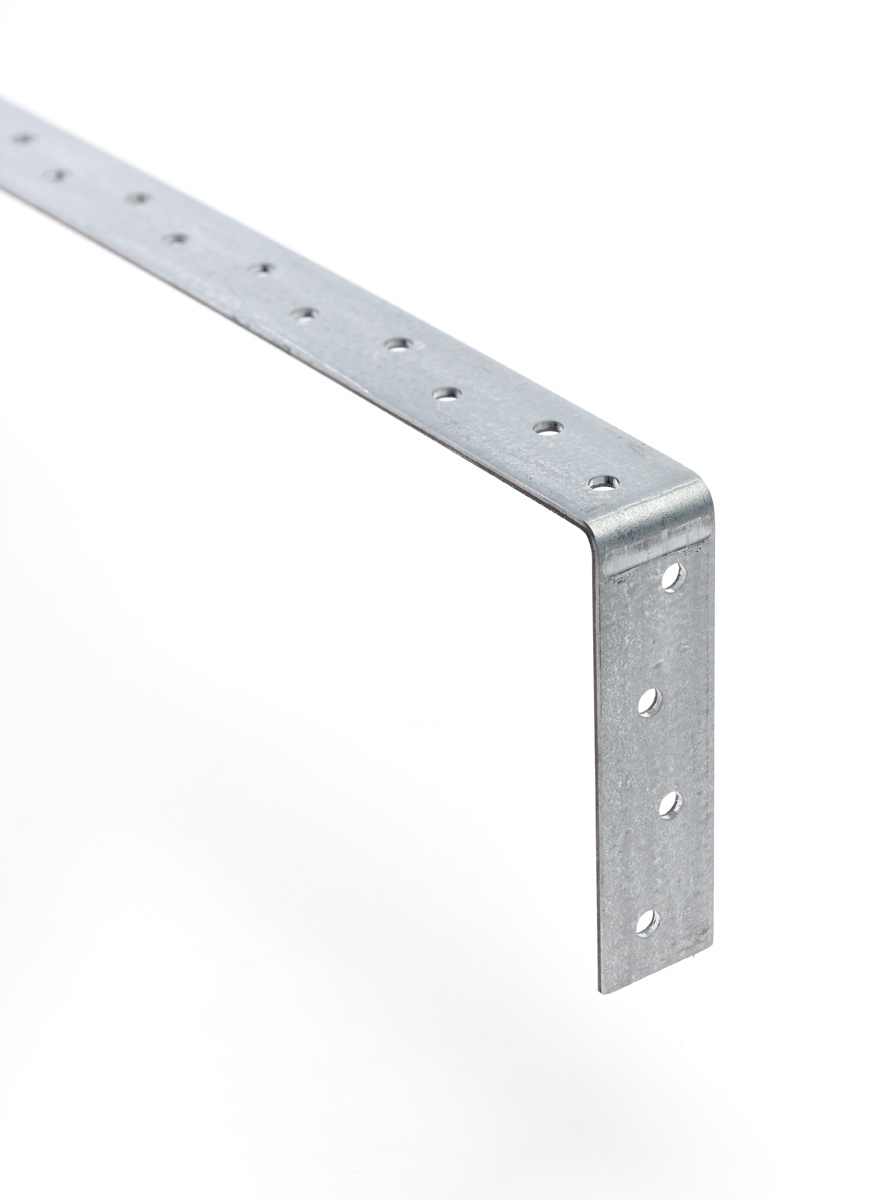

Light duty bent vertical steel restraint strap

Overview

Product Information

Material
Galvanised Steel
Duty
Light
Box Quantity
20

Specification

Product Code Tensile Strength (N) Strap Width (mm) Gauge/Thickness (mm) Size (mm x mm) Total Strap Length (mm) Weight Per Box (kg) Weight Per Item (kg)
SV1200/B100 4000 27 2.3 1100 + 100 1200 12 0.6
  • Manufactured from galvanised steel to BS EN10346.

About

Catnic Light Duty Vertical Restraint Strap, designed for tying vertical loads such as wall plates onto masonry, helping to prevent wind uplift whilst distributing loads
  • Light duty vertical restraint straps should be fixed using 75mm x 4.0mm diameter galvanised nails into timber or 50mm long no.12 woodscrews (with wall plugs in masonry for vertical restraint).
  • Light Duty restraint straps are designed for vertical application only
