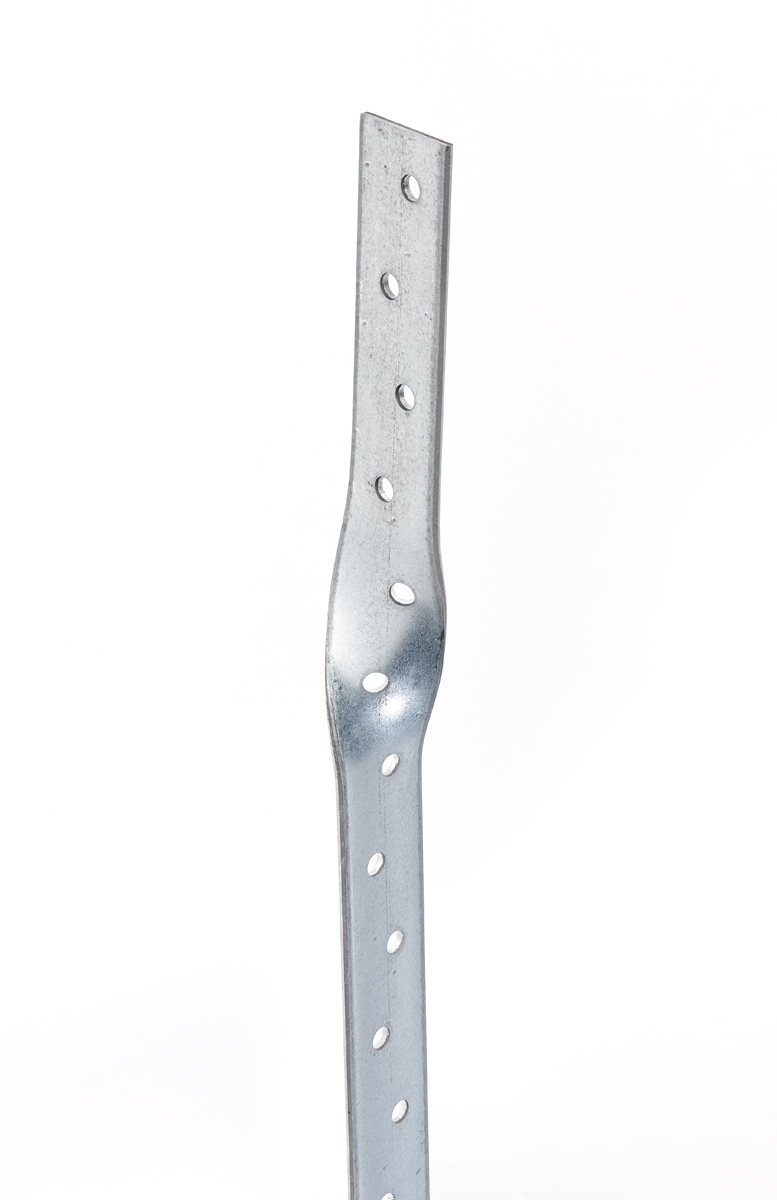

Light Duty Galvanised Steel Restraint Strap
SV1000/T100
Overview
Product Information
- Material
- Galvanised Steel
- Duty
- Light
- Box Quantity
- 20
Specification
| Product Code | Tensile Strength (N) | Strap Width (mm) | Gauge/Thickness (mm) | Size (mm x mm) | Total Strap Length (mm) | Weight Per Box (kg) | Weight Per Item (kg) |
|---|---|---|---|---|---|---|---|
| SV1000/T100 | 4000 | 27 | 2.3 | 900 + 100 | 1000 | 10 | 0.5 |
- Manufactured from galvanised steel to BS EN10346.
About
Catnic Light Duty Vertical Restraint Strap, designed for tying vertical loads such as wall plates onto masonry, helping to prevent wind uplift whilst distributing loads
- Light duty vertical restraint straps should be fixed using 75mm x 4.0mm diameter galvanised nails into timber or 50mm long no.12 woodscrews (with wall plugs in masonry for vertical restraint).
- Light Duty restraint straps are designed for vertical application only
