Light Duty Galvanised Steel Joist Hanger

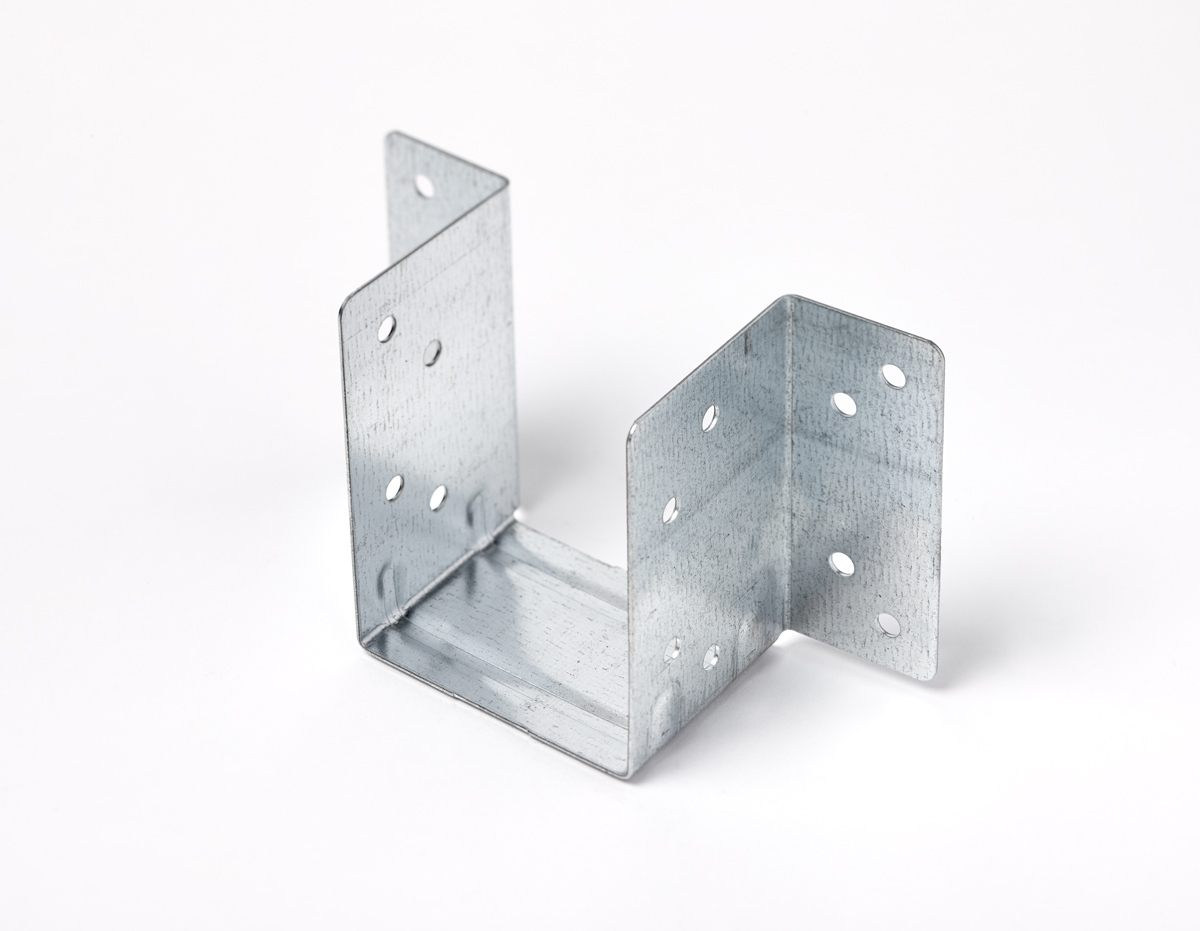

Mini timber to timber joist hanger


Product Information

Galvanised Steel
Box Quantity


Product Code SWL (kN) Bearing Length (mm) Joist Width (mm) Joist Depth (mm) Leg Length (mm) Gauge/Thickness (mm) Weight Per Box (kg) Weight Per Item (kg)
JHMINI47 3.54 40 47 max 250 N/A 0.8 15.5 0.062
  • Manufactured from galvanised steel to BS EN10346.


Catnic Timber to Timber Mini Joist Hangers, are suitable for joist depths up to 100mm with face fixing, , ideal for trimming around ceiling hatches, and similar light duty applications
  • Catnic Timber to Timber Joist Hangers are designed with a 50mm bearing and pre-punched side gussets to allow nail fixing into timber joist. Use either Type A or Type B fixings in all pre-punched holes (Type A, 3.75mm x 30mm sheradised square twist nails for manual fixing, Type B, 3.75mm x 35mm sheradised square twist nails for nail gun fixing).
  • Designed for timber to timber applications only
