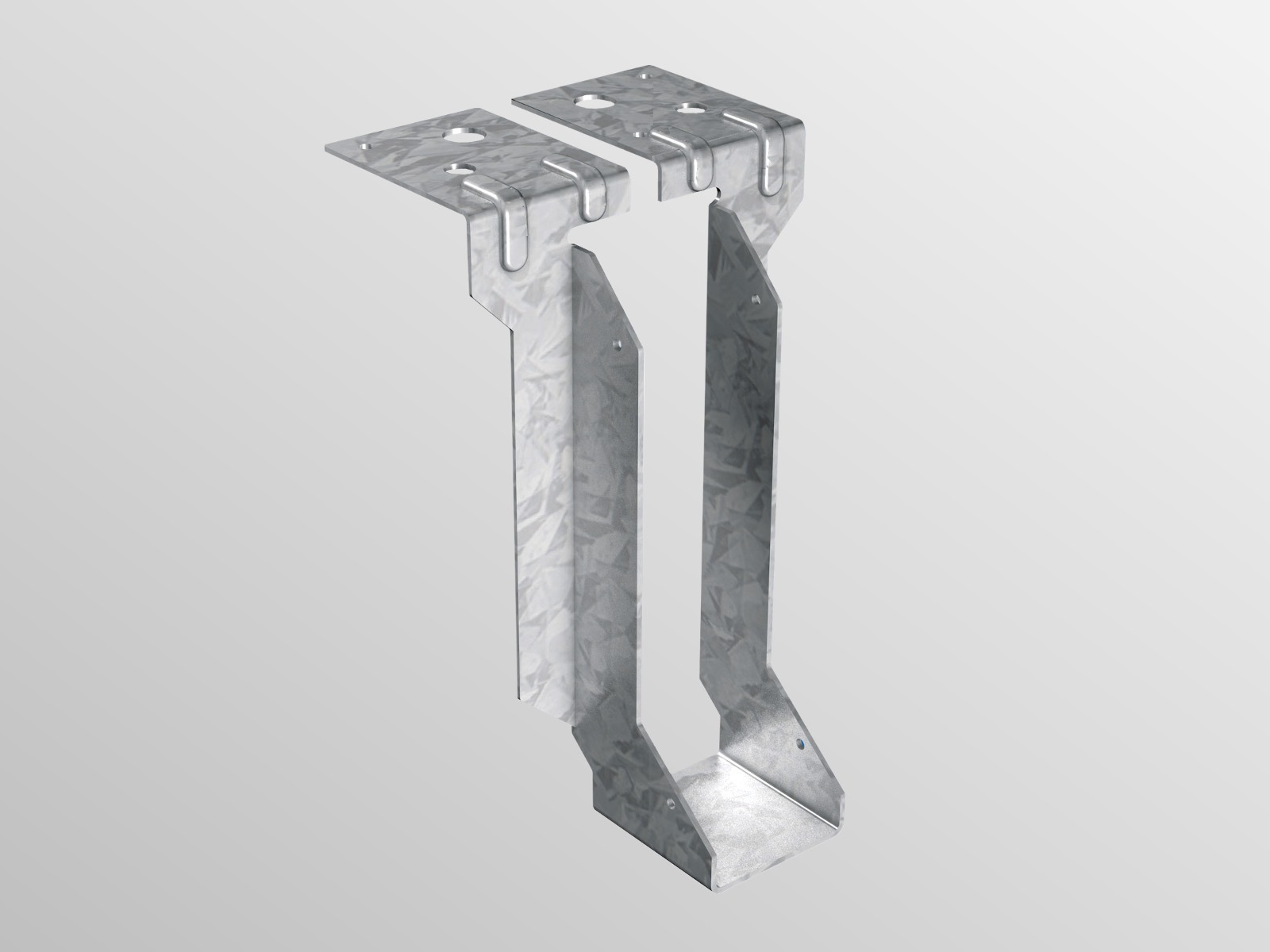

Heavy Duty Galvanised Steel Joist Hanger
JH47/200
Description
Catnic Timber to Masonry Joist Hangers are a single piece non-welded design, with a wide top flange to increase loading capacity on masonry, providing a comprehensive minimum crushing strength of 3.5N/mm2. Hangers 150mm deep or above are manufactured with 10mm less to allow for notching and regularisation of timber joists
Overview
Product Information
- Material
- Galvanised Steel
- Duty
- Heavy
- Box Quantity
- 25
Specification
| Product Code | Masonry Strength (N/mm<sup>2</sup>) | SWL (kN) | Bearing Length (mm) | Joist Width (mm) | Joist Depth (mm) | Leg Length (mm) | Gauge/Thickness (mm) | Weight Per Box (kg) | Weight Per Item (kg) |
|---|---|---|---|---|---|---|---|---|---|
| JH47/200 | 3.5 | 10 | 75 | 47 | 200 | 190 | 2 | 11.9 | 0.476 |
- Manufactured from galvanised steel to BS EN10346.
About
- Catnic Joist Hangers are designed with a 75mm bearing surface and pre-punched side gussets to allow nail fixing into timber joist with 3.75mm x 30mm sheradised square twist nails.
- Designed for timber to masonry applications only
