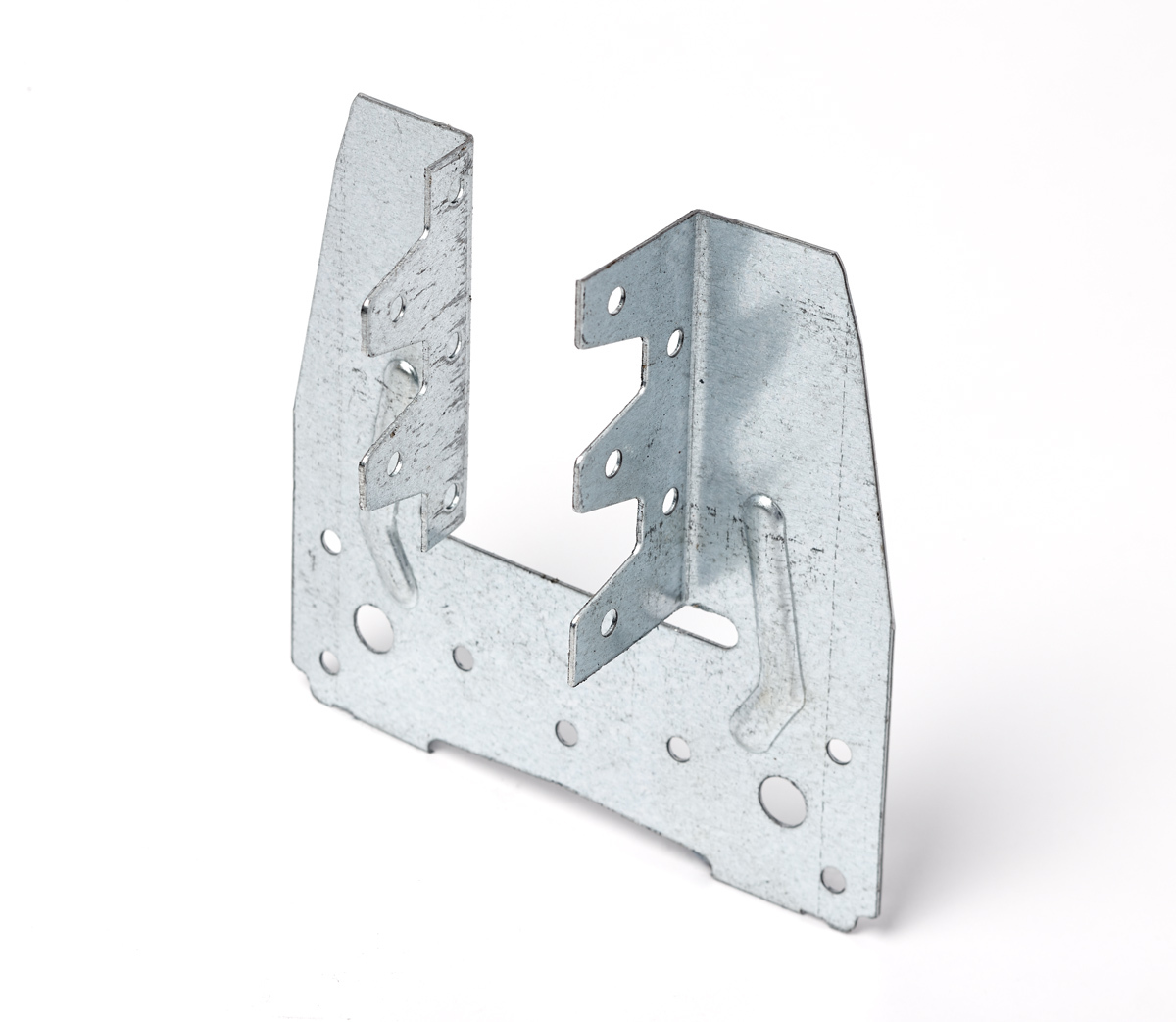

Steel truss clip
Galvanised Steel Truss Clip

CTC47/100

Description
Catnic Truss Clip, a lightweight clip providing a quick and effective method fixing trussed rafters to wall plates in low loading applications as recommended in BS 5268:Part 3. Can also be used as a multi-purpose connector providing restraint whenever two timber members cross.

Overview

Product Information

Material
Galvanised Steel
Duty
Light
Box Quantity
100

Specification

Product Code SWL (kN) Joist Width (mm) Leg Length (mm) Gauge/Thickness (mm) Weight Per Box (kg) Weight Per Item (kg)
CTC47/100 3.75 47 100 0.9 7.5 0.075
  • Manufactured from galvanised steel to BS EN10346.

About

  • Catnic Truss Clip is typically installed on the inside wall plate, and should always be fitted vertically to a wall plate, never lying flat or horizontally using 3.75mm x 30mm sheradised square twist nails.
  • Designed for timber to timber applications only
